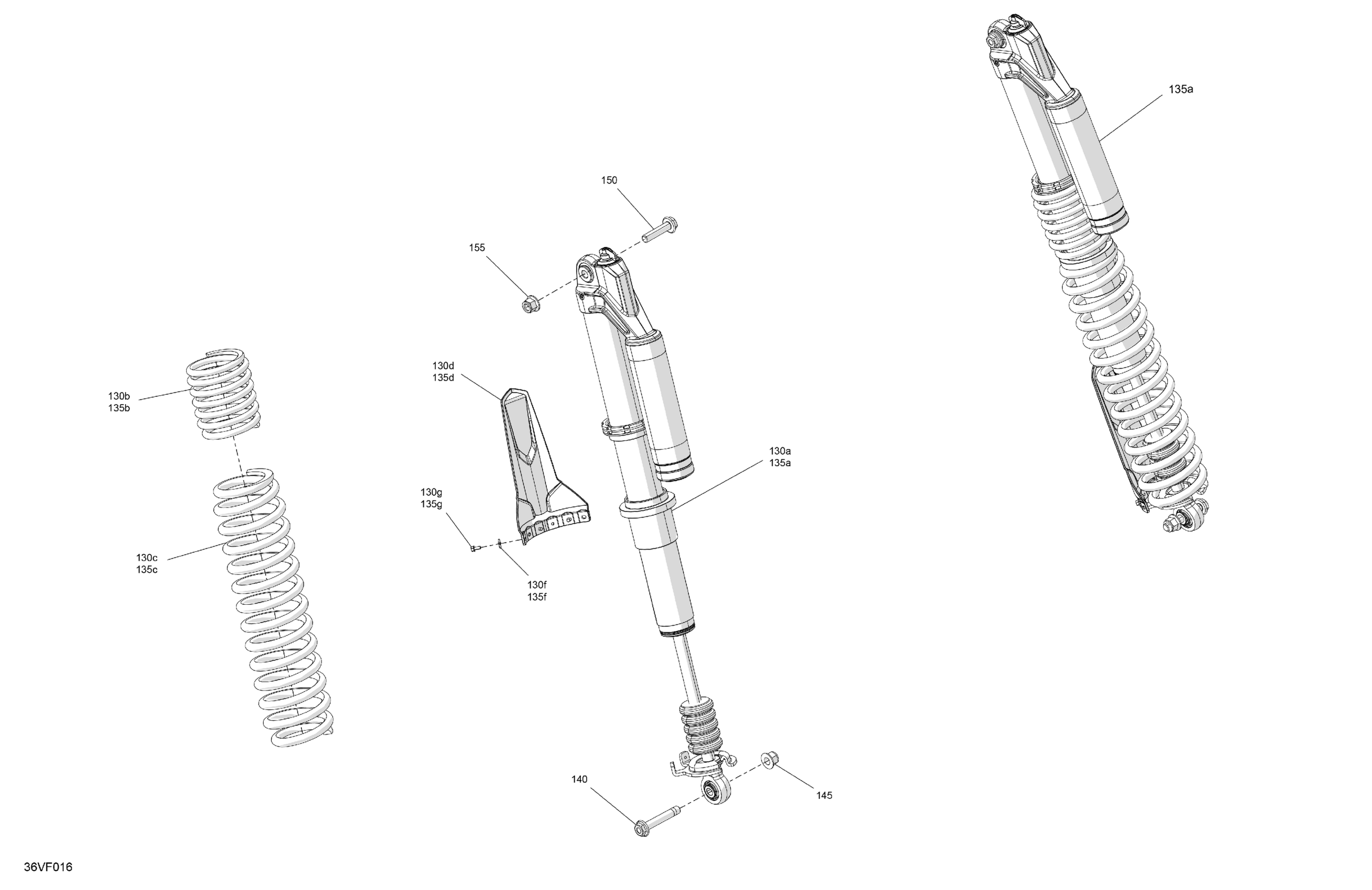

Can-Am Maverick R - 996NT - X - 8GTA - Legion Red - 77" Width - CALI, 2026 Suspension - Rear Shocks Diagram

Description

Price

130a

Rear Shock Absorber

706005896

Unavailable

130b

Deep Black, Compression Spring

706205339

$100.49

130c

Deep Black, Rear Compression Spring

706005015

$100.49

130d

Protector

706202215

$11.99

130f

Washer M5

250200025

$0.74

130g

Hex Flange Screw M5 X 11

210251150

$2.11

135a

Rear Shock Absorber

706005896

Unavailable

135b

Deep Black, Compression Spring

706205339

$100.49

135c

Deep Black, Rear Compression Spring

706005015

$100.49

135d

Protector

706202215

$11.99

135f

Washer M5

250200025

$0.74

135g

Hex Flange Screw M5 X 11

210251150

$2.11

140

Hex. Flange Screw Din.6921 M14X2X85

250001176

$7.41

145

Hex. Flange Elastic Nut M14

250001166

$12.71

150

Hex. Flange Screw Din.6921 M14X2X60

250001174

$7.41

155

Hex. Flange Elastic Nut M14

250001166

$12.71
