Description

Price

2000

Black, LH Door Panel

705013106

$149.99

2010

Deep Black, LH Rear Door

705018466

$179.99

2020

Door Support

705011187

$12.99

2025

Hex Screw Washer Head M8 X 20

207582054

$3.17

2026

Flat Washer M8

234081430

$2.11

2030

Flat Washer 8 mm, Nylon

234081100

$1.39

2040

LH Latch

705013095

$43.99

2050

Belt

293850135

$14.99

2051

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2052

Bushing | DS 650 X

293900104

$5.50

2070

LH Latch Cover

705013859

$38.99

2075

Stainless Steel Flat Washer

234062670

$2.11

2080

Panel Nut M6 X 1.0

250100198

$2.11

2085

Torx Screw M6 X 45

250000748

$1.90

2086

Torx Truss Screw M6 X 16

250000721

$1.69

2090

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2095

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2096

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2097

Flat Washer

224061121

$0.53

2100

LH Lower Door Cover

705011358

$58.99

2110

Torx Truss Screw M6 X 50

250000749

$3.17

2115

Torx Truss Screw M6 X 16

250000721

$1.69

2120

Stainless Steel Flat Washer

234062670

$2.11

2130

Hex. Flange Elastic Nut M6

233261466

$2.00

2140

Panel Nut M6 X 1.0

250100198

$2.11

2150

Door Belt

293850129

$16.49

2160

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2300

Black, RH Door Panel

705013107

$149.99

2310

Deep Black, RH Rear Door

705018472

$179.99

2320

Door Support

705011187

$12.99

2325

Hex Screw Washer Head M8 X 20

207582054

$3.17

2326

Flat Washer M8

234081430

$2.11

2330

Flat Washer 8 mm, Nylon

234081100

$1.39

2340

RH Latch

705013096

$43.99

2350

Belt

293850135

$14.99

2351

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2352

Bushing | DS 650 X

293900104

$5.50

2370

RH Latch Cover

705013860

$39.99

2375

Stainless Steel Flat Washer

234062670

$2.11

2380

Panel Nut M6 X 1.0

250100198

$2.11

2385

Torx Screw M6 X 45

250000748

$1.90

2386

Torx Truss Screw M6 X 16

250000721

$1.69

2390

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2395

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2396

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2397

Flat Washer

224061121

$0.53

2400

Right Lower Door Cover

705011359

$61.99

2410

Torx Truss Screw M6 X 50

250000749

$3.17

2415

Torx Truss Screw M6 X 16

250000721

$1.69

2420

Stainless Steel Flat Washer

234062670

$2.11

2430

Hex. Flange Elastic Nut M6

233261466

$2.00

2440

Panel Nut M6 X 1.0

250100198

$2.11

2450

Door Belt

293850129

$16.49

2460

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2500

Black, LH Door Panel

705012862

$149.99

2510

Deep Black, LH Front Door

705018468

$159.99

2520

Door Support

705011187

$12.99

2525

Hex Screw Washer Head M8 X 20

207582054

$3.17

2526

Flat Washer M8

234081430

$2.11

2530

Flat Washer 8 mm, Nylon

234081100

$1.39

2540

LH Latch

705013095

$43.99

2550

Belt

293850135

$14.99

2551

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2552

Bushing | DS 650 X

293900104

$5.50

2570

LH Latch Cover

705013535

$39.99

2580

Panel Nut M6 X 1.0

250100198

$2.11

2585

Torx Truss Screw M6 X 16

250000721

$1.69

2586

Stainless Steel Flat Washer

234062670

$2.11

2590

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2610

Panel Nut M6 X 1.0

250100198

$2.11

2620

Torx Truss Screw M6 X 16

250000721

$1.69

2625

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2630

Flat Washer

224061121

$0.53

2640

Door Belt

293850129

$16.49

2650

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2700

LH Lower Door Panel

705010732

$58.99

2710

Torx Truss Screw M6 X 50

250000749

$3.17

2720

Stainless Steel Flat Washer

234062670

$2.11

2730

Hex. Flange Elastic Nut M6

233261466

$2.00

2800

Black, RH Door Panel

705012863

$149.99

2810

Deep Black, RH Front Door

705018470

$159.99

2820

Door Support

705011187

$12.99

2825

Hex Screw Washer Head M8 X 20

207582054

$3.17

2826

Flat Washer M8

234081430

$2.11

2830

Flat Washer 8 mm, Nylon

234081100

$1.39

2840

RH Latch

705013096

$43.99

2850

Belt

293850135

$14.99

2851

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2852

Bushing | DS 650 X

293900104

$5.50

2870

RH Latch Cover

705013536

$39.99

2880

Panel Nut M6 X 1.0

250100198

$2.11

2885

Torx Truss Screw M6 X 16

250000721

$1.69

2886

Stainless Steel Flat Washer

234062670

$2.11

2890

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2910

Panel Nut M6 X 1.0

250100198

$2.11

2920

Torx Truss Screw M6 X 16

250000721

$1.69

2925

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2930

Flat Washer

224061121

$0.53

2940

Door Belt

293850129

$16.49

2950

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

3000

RH Lower Door Panel

705010733

$61.99

3010

Torx Truss Screw M6 X 50

250000749

$3.17

3020

Stainless Steel Flat Washer

234062670

$2.11

3030

Hex. Flange Elastic Nut M6

233261466

$2.00

4030

Torx Truss Screw M6 X 25

250000807

$2.11

4040

Panel Nut M6 X 1.0

250100198

$2.11

4100

Deep Black, LH Central Side Panel

705017554

$67.99

4200

Deep Black, RH Central Body Panel

705017555

$73.99

4210

Torx Screw M6 X 20

250000722

$1.68

4220

Panel Nut M6 X 1.0

250100198

$2.11

4230

Insert

705016606

$2.79

4250

LH Rear Central Lateral Panel

705015741

$73.99

4260

RH Rear Central Lateral Panel

705015742

$73.99

4270

Pop Rivet 3/16”

293150108

$1.19

4280

Insert

705016606

$2.79

4290

Torx Screw M6 X 20

250000722

$1.68

4300

LH Rear Lateral Panel

705010676

$119.99

4400

Deep Black, RH Rear Lateral Panel

705010677

$119.99

4410

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

4420

Panel Nut M6 X 1.0

250100198

$2.11

4610

Torx Screw M6 X 20

250000722

$1.68

4630

Panel Nut M6 X 1.0

250100198

$2.11

4640

Stainless Steel Flat Washer

234062670

$2.11

4650

Support Plate

705003841

$0.99

4660

Torx Screw K50 X 16

250000720

$1.69

4900a

LH Central Cage Trim

705015489

$35.99

4900b

LH Central Cage Trim

705014860

$35.99

4900c

RH Central Cage Trim

705015490

$35.99

4900d

RH Central Cage Trim

705014862

$35.99

4900f

Torx Screw M6 X 20

250000722

$1.68

4900g

Panel Nut M6 X 1.0

250100198

$2.11

5200

Black, LH Central Door Trim

705013098

$86.99

5210

Torx Screw M6 X 20

250000722

$1.68

5220

Insert

705016606

$2.79

5230

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

5300

Black RH Central Door Trim

705013099

$86.99

5310

Torx Screw M6 X 20

250000722

$1.68

5320

Insert

705016606

$2.79

5330

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

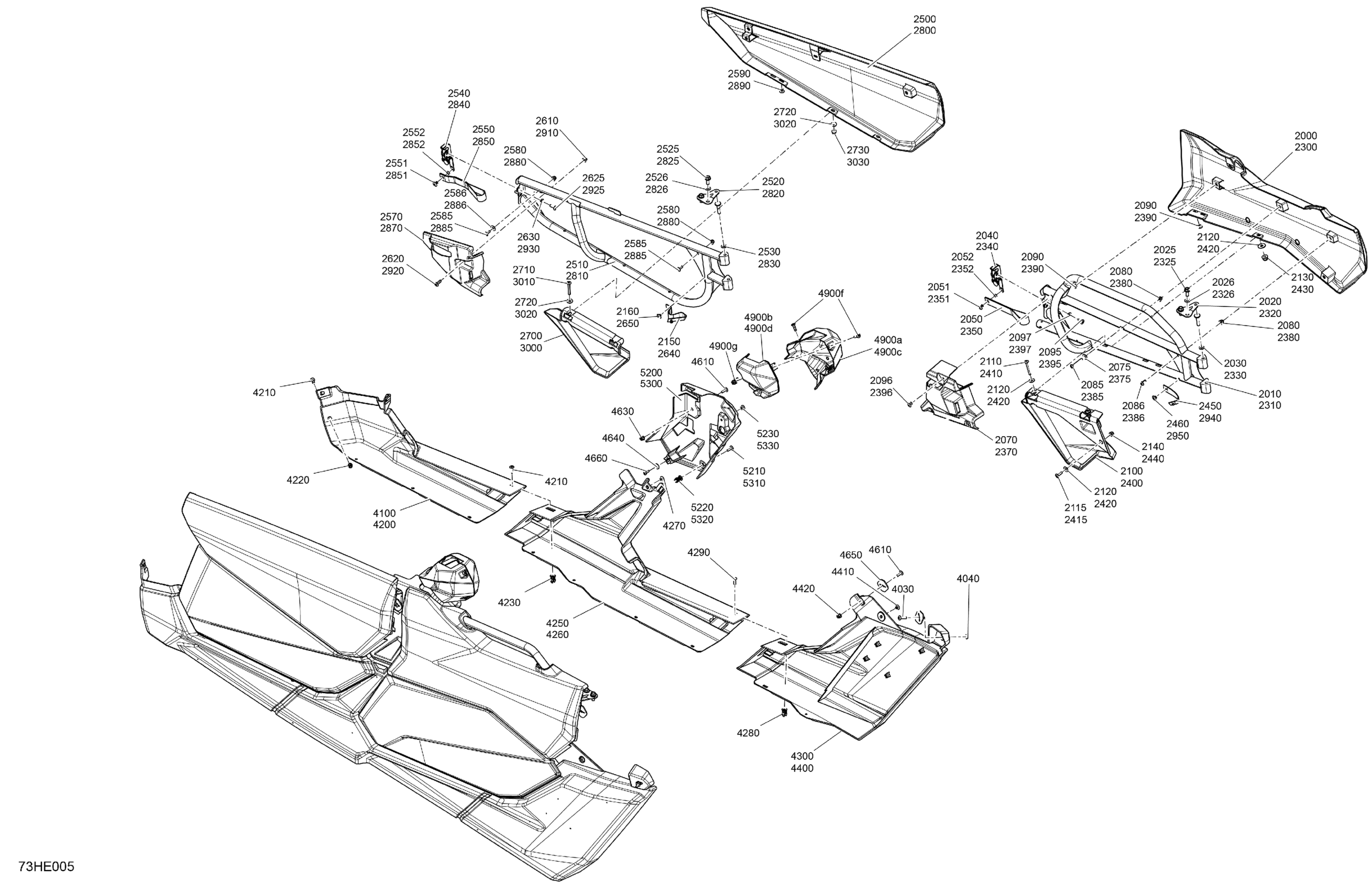

Can-Am Maverick MAX - TURBO - DS - 7WSG - Scandi Blue - 64" Width CALI, 2025 Body - Doors Diagram

Black, LH Door Panel

Deep Black, LH Rear Door

Door Support

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

LH Latch

Belt

Black, Pop Rivet 3/16 X ,425

Bushing | DS 650 X

LH Latch Cover

Stainless Steel Flat Washer

Panel Nut M6 X 1.0

Torx Screw M6 X 45

Torx Truss Screw M6 X 16

Black, Pop Rivet 3/16 X ,425

Torx Screw M6 X 20, Scotch Grip

Black, Pop Rivet 3/16 X ,425

Flat Washer

LH Lower Door Cover

Torx Truss Screw M6 X 50

Torx Truss Screw M6 X 16

Stainless Steel Flat Washer

Hex. Flange Elastic Nut M6

Panel Nut M6 X 1.0

Door Belt

Black, Pop Rivet 3/16 X ,425

Black, RH Door Panel

Deep Black, RH Rear Door

Door Support

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

RH Latch

Belt

Black, Pop Rivet 3/16 X ,425

Bushing | DS 650 X

RH Latch Cover

Stainless Steel Flat Washer

Panel Nut M6 X 1.0

Torx Screw M6 X 45

Torx Truss Screw M6 X 16

Black, Pop Rivet 3/16 X ,425

Torx Screw M6 X 20, Scotch Grip

Black, Pop Rivet 3/16 X ,425

Flat Washer

Right Lower Door Cover

Torx Truss Screw M6 X 50

Torx Truss Screw M6 X 16

Stainless Steel Flat Washer

Hex. Flange Elastic Nut M6

Panel Nut M6 X 1.0

Door Belt

Black, Pop Rivet 3/16 X ,425

Black, LH Door Panel

Deep Black, LH Front Door

Door Support

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

LH Latch

Belt

Black, Pop Rivet 3/16 X ,425

Bushing | DS 650 X

LH Latch Cover

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Stainless Steel Flat Washer

Black, Pop Rivet 3/16 X ,425

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Torx Screw M6 X 20, Scotch Grip

Flat Washer

Door Belt

Black, Pop Rivet 3/16 X ,425

LH Lower Door Panel

Torx Truss Screw M6 X 50

Stainless Steel Flat Washer

Hex. Flange Elastic Nut M6
