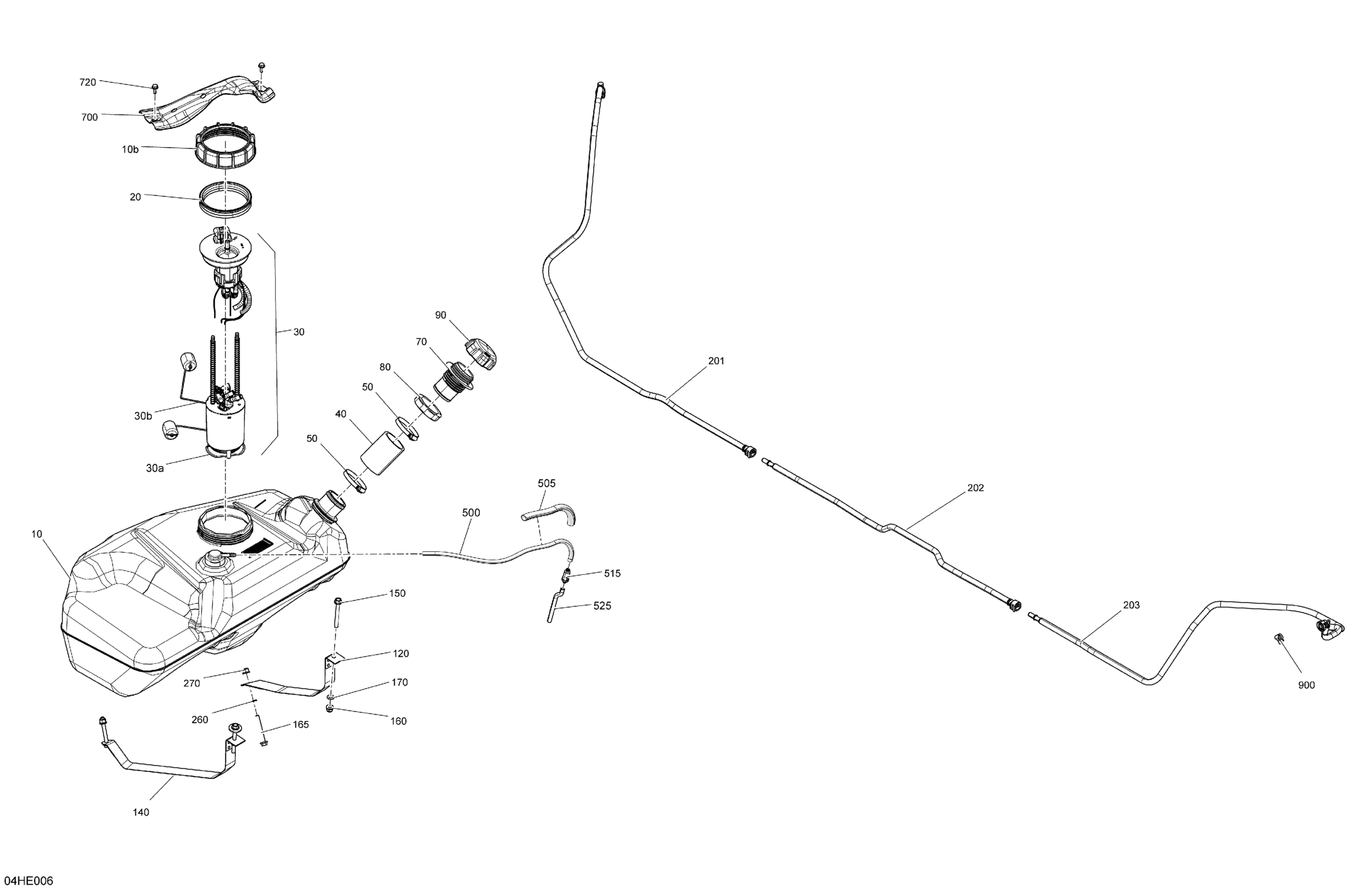

Can-Am Maverick MAX - TURBO - DS - 7WSF - Fiery Red Metallic - 64" Width, 2025 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001456

$339.99

10b

Special Nut M130

250100062

$21.99

20

Pump Gasket

293250514

$19.49

30

Fuel Pump | Includes 30 to 30b

709001056

$372.49

30a

Fuel Filter

270600113

$33.99

30b

Fuel Sender

715900424

$144.99

40

Filler Neck Hose

709001697

$31.99

50

Norma Clamp

293650081

$12.18

70

Filler Neck

709000867

$15.36

80

Fuel Filler Neck Nut

293600206

$13.18

90

Fuel Cap

709000868

$32.99

120

Fuel Tank Strap

709000910

$41.49

140

Fuel Tank Strap

709000911

$41.49

150

Carriage Bolt M8 X 75

250001199

$7.66

160

Hex. Flange Elastic Nut M8

233281414

$1.47

165

Hex. Flange Screw M8 X 70

207687044

$7.41

170

Flat Washer 8 mm

234081410

$0.83

201

Formed Hose

709000987

$39.49

202

Formed Hose

709000989

$37.99

203

Fuel Tank Hose

709001377

$45.49

260

Flat Washer 8 mm

234081410

$0.83

270

Hex. Flange Elastic Nut M8

233281414

$1.47

500

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

500a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

505

Tubing 10 MM 1000MM Long

219704407

$2.79

515

Filter

709001120

$8.05

525

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

525a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

700

Connector Guard

707901204

$20.99

720

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

900

Norma Spring Clamp

293650214

$15.89
