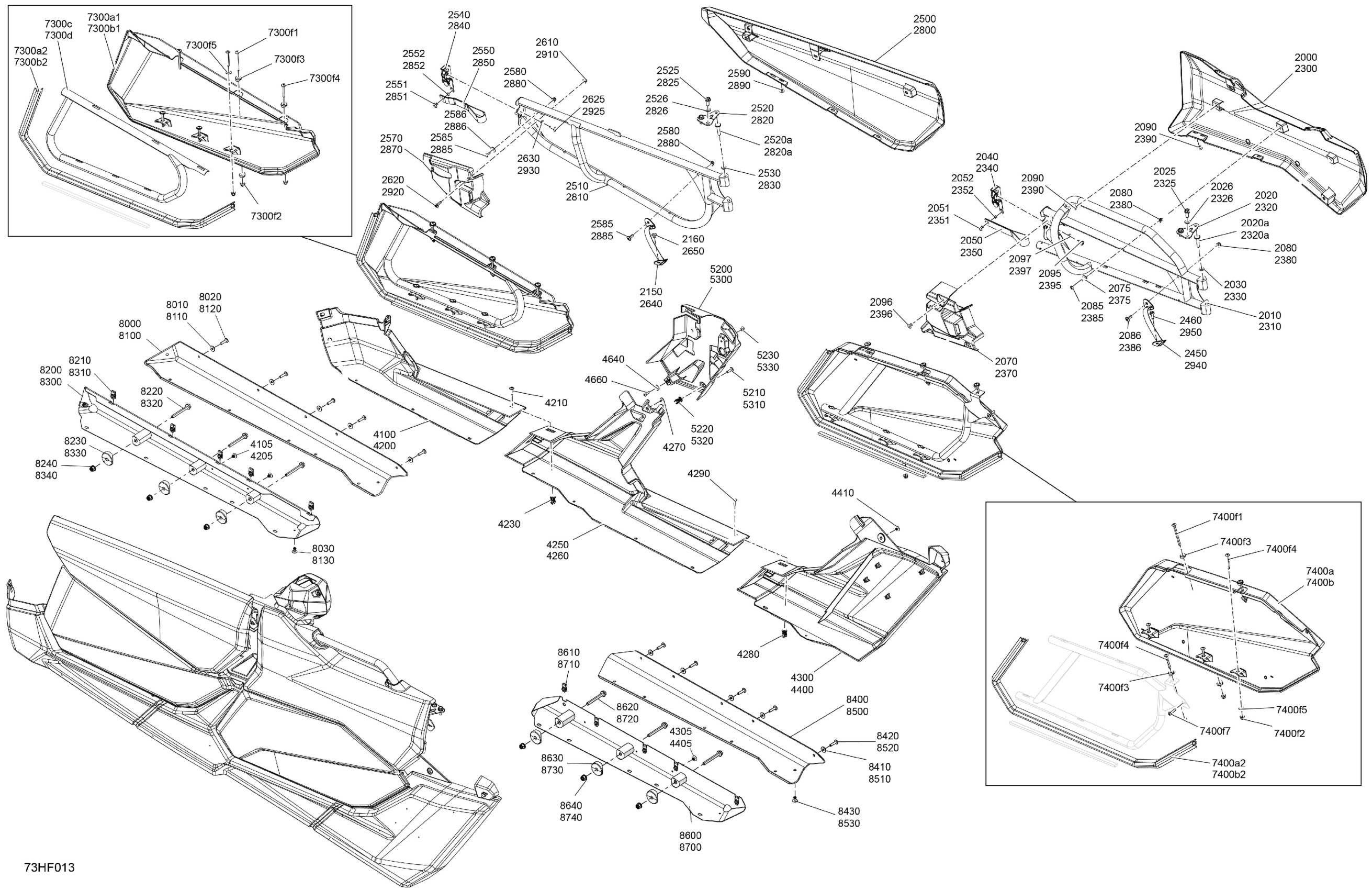

Can-Am Maverick Max - TURBO RR - XRC - 9MTD - Loft Green Satin - 72" Width CALI, 2026 Body - Doors Diagram

#

Description
Price

2000

Loft Green, LH Rear Door Panel

705019623

$197.66

2010

Deep Black, LH Rear Door

705018466

$166.89

2020

Door Support

705011187

$10.98

2020a

Door Support

705011187

$10.98

2025

Hex Screw Washer Head M8 X 20

207582054

$2.61

2026

Flat Washer M8

234081430

$1.74

2030

Flat Washer 8 mm, Nylon

234081100

$1.00

2040

LH Latch

705013095

$55.35

2050

Belt

293850135

$14.75

2051

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

2052

Bushing | DS 650 X

293900104

$5.26

2070

LH Lateral Panel Cover Ass'y

715009848

$9.77

2075

Stainless Steel Flat Washer

234062670

$1.74

2080

Panel Nut M6 X 1.0

250100198

$1.73

2085

Torx Screw M6 X 45

250000748

$1.56

2086

Torx Truss Screw M6 X 16

250000721

$1.39

2090

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

2095

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2096

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

2097

Flat Washer

224061121

$0.44

2150

Retaining Strap

705801727

$15.35

2160

Hex. Forming Screw M6 X 10

210261050

$1.42

2300

Loft Green, RH Rear Door Panel

705019624

$197.66

2310

Deep Black, RH Rear Door

705018472

$166.89

2320

Door Support

705011187

$10.98

2320a

Door Support

705011187

$10.98

2325

Hex Screw Washer Head M8 X 20

207582054

$2.61

2326

Flat Washer M8

234081430

$1.74

2330

Flat Washer 8 mm, Nylon

234081100

$1.00

2340

RH Latch

705013096

$55.35

2350

Belt

293850135

$14.75

2351

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

2352

Bushing | DS 650 X

293900104

$5.26

2370

RH Side Trim Ass'y

715009849

$20.74

2375

Stainless Steel Flat Washer

234062670

$1.74

2380

Panel Nut M6 X 1.0

250100198

$1.73

2385

Torx Screw M6 X 45

250000748

$1.56

2386

Torx Truss Screw M6 X 16

250000721

$1.39

2390

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

2395

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2396

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

2397

Flat Washer

224061121

$0.44

2450

Retaining Strap

705801727

$15.35

2460

Hex. Forming Screw M6 X 10

210261050

$1.42

2500

Loft Green, LH Front Door Panel

705019621

$197.66

2510

Deep Black, LH Front Door

705018468

$145.35

2520

Door Support

705011187

$10.98

2520a

Door Support

705011187

$10.98

2525

Hex Screw Washer Head M8 X 20

207582054

$2.61

2526

Flat Washer M8

234081430

$1.74

2530

Flat Washer 8 mm, Nylon

234081100

$1.00

2540

LH Latch

705013095

$55.35

2550

Belt

293850135

$14.75

2551

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

2552

Bushing | DS 650 X

293900104

$5.26

2570

LH Latch Cover

705013535

$36.89

2580

Panel Nut M6 X 1.0

250100198

$1.73

2585

Torx Truss Screw M6 X 16

250000721

$1.39

2586

Stainless Steel Flat Washer

234062670

$1.74

2590

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

2610

Panel Nut M6 X 1.0

250100198

$1.73

2620

Torx Truss Screw M6 X 16

250000721

$1.39

2625

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2630

Flat Washer

224061121

$0.44

2640

Retaining Strap

705801727

$15.35

2650

Hex. Forming Screw M6 X 10

210261050

$1.42

2800

Loft Green, LH Front Door Panel

705019622

$255.35

2810

Deep Black, RH Front Door

705018470

$145.35

2820

Door Support

705011187

$10.98

2820a

Door Support

705011187

$10.98

2825

Hex Screw Washer Head M8 X 20

207582054

$2.61

2826

Flat Washer M8

234081430

$1.74

2830

Flat Washer 8 mm, Nylon

234081100

$1.00

2840

RH Latch

705013096

$55.35

2850

Belt

293850135

$14.75

2851

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

2852

Bushing | DS 650 X

293900104

$5.26

2870

RH Latch Cover

705013536

$36.89

2880

Panel Nut M6 X 1.0

250100198

$1.73

2885

Torx Truss Screw M6 X 16

250000721

$1.39

2886

Stainless Steel Flat Washer

234062670

$1.74

2890

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

2910

Panel Nut M6 X 1.0

250100198

$1.73

2920

Torx Truss Screw M6 X 16

250000721

$1.39

2925

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2930

Flat Washer

224061121

$0.44

2940

Retaining Strap

705801727

$15.35

2950

Hex. Forming Screw M6 X 10

210261050

$1.42

4100

LH Central Lateral Panel

705012768

$69.20

4105

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

4200

Deep Black, RH Lower Body Panel

705017549

$64.58

4205

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

4210

Torx Screw M6 X 20

250000722

$1.34

4230

Insert

705016606

$2.31

4250

LH Central Body Panel

705018260

$69.20

4260

RH Central Body Panel

705018261

$69.20

4270

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

4280

Insert

705016606

$2.31

4290

Torx Screw M6 X 20

250000722

$1.34

4300

LH Rear Lateral Panel

705012770

$110.74

4305

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

4400

RH Rear Lateral Panel

705012771

$110.74

4405

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

4410

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

4640

Stainless Steel Flat Washer

234062670

$1.74

4660

Torx Screw K50 X 16

250000720

$1.39

5200

Black, LH Central Door Trim

705013098

$79.97

5210

Torx Screw M6 X 20

250000722

$1.34

5220

Insert

705016606

$2.31

5230

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

5300

Black RH Central Door Trim

705013099

$79.97

5310

Torx Screw M6 X 20

250000722

$1.34

5320

Insert

705016606

$2.31

5330

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

7300a1

LH Door Panels

705010271

$105.35

7300a2

Door Seal

705012018

$18.43

7300b1

RH Door Panels

705010272

$104.58

7300b2

Door Seal

705012018

$18.43

7300c

Deep Black, LH Door

705018161

$124.58

7300d

Deep Black, RH Door

705018162

$124.58

7300f1

Torx-Truss M/S M6 X 80

250000902

$2.60

7300f2

Hex. Flange Elastic Nut M6

233261494

$1.26

7300f3

Offset Washer

705202223

$4.98

7300f4

Torx Truss Screw M6 X 50

250000749

$3.11

7300f5

Stainless Steel Flat Washer

234062670

$1.74

7400a

LH Rear Door Panel Ass'y | Includes 7400a to 7400a2

705011468

$129.20

7400a2

Door Seal

705012018

$18.43

7400b

RH Rear Door Panel Ass'y | Includes 7400b to 7400b2

705011469

$129.20

7400b2

Door Seal

705012018

$18.43

7400f1

Torx-Truss M/S M6 X 80

250000902

$2.60

7400f2

Hex. Flange Elastic Nut M6

233261494

$1.26

7400f3

Offset Washer

705202223

$4.98

7400f4

Torx Truss Screw M6 X 50

250000749

$3.11

7400f5

Stainless Steel Flat Washer

234062670

$1.74

7400f7

Torx Truss Screw M6 X 25

250000807

$1.74

8000

Black, LH Lateral Panel

705013015

$106.12

8010

Flat washer M6

250200164

$0.83

8020

Torx Truss Screw M6 X 25

250000807

$1.74

8030

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

8100

Black, RH Lateral Panel

705013016

$106.12

8110

Flat washer M6

250200164

$0.83

8120

Torx Truss Screw M6 X 25

250000807

$1.74

8130

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

8200

LH Frame

705018480

$209.20

8210

Panel Nut M6 X 1.0

250100198

$1.73

8220

Hex. Flange Screw M8 X 70

207687044

$6.11

8230

Saddle Washer

705205462

$5.52

8240

Elastic Flange Nut M8

233281464

$0.83

8300

RH Frame

705018478

$209.20

8310

Panel Nut M6 X 1.0

250100198

$1.73

8320

Hex. Flange Screw M8 X 70

207687044

$6.11

8330

Saddle Washer

705205462

$5.52

8340

Elastic Flange Nut M8

233281464

$0.83

8400

LH Rear Rocker Panel

705018265

$110.74

8410

Flat washer M6

250200164

$0.83

8420

Torx Truss Screw M6 X 25

250000807

$1.74

8430

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

8500

RH Rear Rocker Panel

705018266

$110.74

8510

Flat washer M6

250200164

$0.83

8520

Torx Truss Screw M6 X 25

250000807

$1.74

8530

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

8600

LH Rear Support

705018554

$157.66

8610

Panel Nut M6 X 1.0

250100198

$1.73

8620

Hex. Flange Screw M8 X 70

207687044

$6.11

8630

Saddle Washer

705205462

$5.52

8640

Elastic Flange Nut M8

233281464

$0.83

8700

LH Rear Support

705018555

$157.66

8710

Panel Nut M6 X 1.0

250100198

$1.73

8720

Hex. Flange Screw M8 X 70

207687044

$6.11

8730

Saddle Washer

705205462

$5.52

8740

Elastic Flange Nut M8

233281464

$0.83
