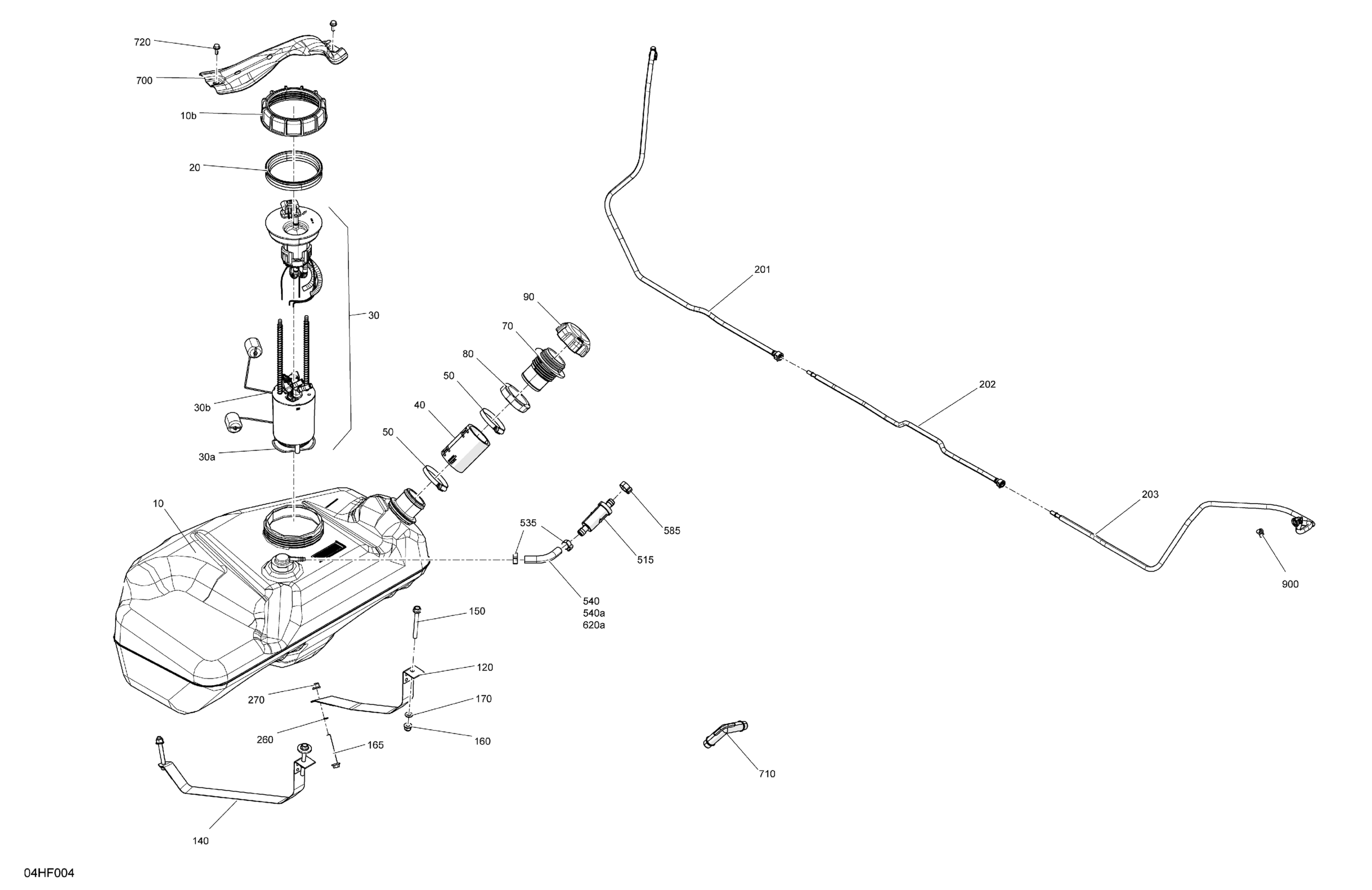

Can-Am Maverick Max - TURBO RR - XMR - 7ZTA - Loft Green Satin - 72" Width, 2026 Engine - Fuel Diagram

Description

Price

Fuel Tank Ass'y | Includes 10 to 10b

709001456

$273.85

10b

Special Nut M130

250100062

$17.52

Pump Gasket

293250514

$15.57

Fuel Pump | Includes 30 to 30b

709001057

$353.87

30a

Fuel Filter

270600113

$27.27

30b

Fuel Sender

715900424

$130.57

Filler Neck Hose

709001697

$28.33

Norma Clamp

293650081

$9.87

Filler Neck

709000867

$14.33

Fuel Filler Neck Nut

293600206

$10.02

Fuel Cap

709000868

$29.07

120

Fuel Tank Strap

709000910

$38.03

140

Fuel Tank Strap

709000911

$38.03

150

Carriage Bolt M8 X 75

250001199

$6.00

160

Hex. Flange Elastic Nut M8

233281414

$1.14

165

Hex. Flange Screw M8 X 70

207687044

$6.11

170

Flat Washer 8 mm

234081410

$0.69

201

Formed Hose

709000987

$39.49

202

Formed Hose

709000989

$35.04

203

Fuel Tank Hose

709001377

$41.76

260

Flat Washer 8 mm

234081410

$0.69

270

Hex. Flange Elastic Nut M8

233281414

$1.14

515

Filter

709001120

$7.48

535

Oetiker Clamp

293650042

$1.40

540

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

540a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

585

Oetiker Clamp

293650042

$1.40

620a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

700

Connector Guard

707901204

$18.63

710

Pipe Elbow Fitting

293710223

$6.75

720

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

900

Norma Spring Clamp

293650214

$14.90
