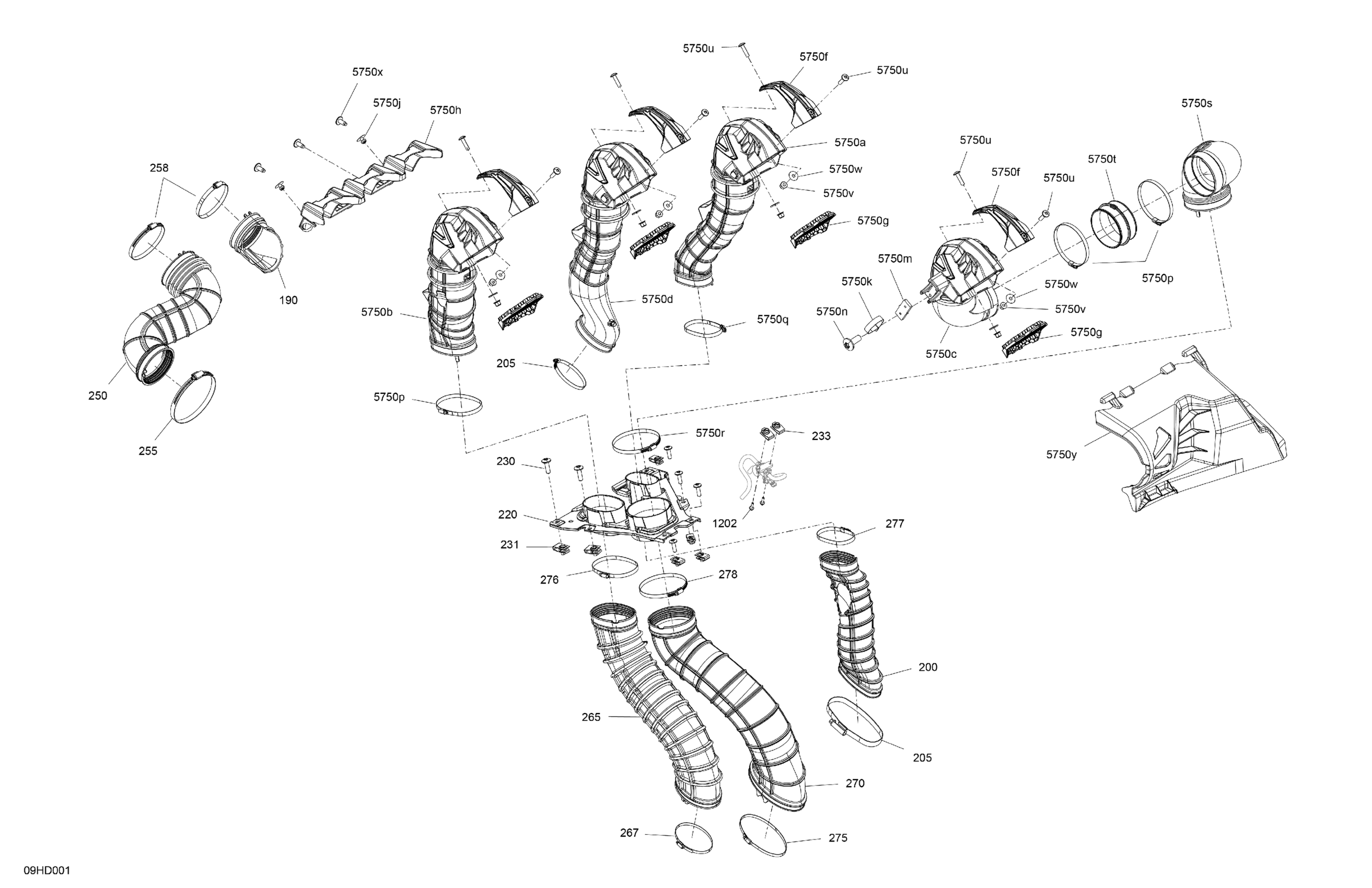

Can-Am Maverick Turbo RR - XRC - 6VRA - Hyper Silver - 64" Width, 2024 Engine - Air Duct Diagram

Description

Price

5750a

Top Front CVT Duct

706600250

$147.73

5750b

Top Rear Intake Duct

706600251

$147.73

5750c

Top Rear CVT Exhaust Duct

706600252

$142.51

5750d

Hose

707800862

$115.64

5750f

Scoop Cover

707003317

Unavailable

5750g

Legion Red, Air Inlet Grille

705019007

$18.63

5750h

Hose Holder

706600276

$17.88

5750j

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

5750k

Open Clamp

293850133

$1.91

5750m

Plate

705013076

$29.82

5750n

Torx Truss M8 X 16

250000881

$2.00

5750p

Norma Gear Clamp

514052983

$14.90

5750q

Norma Clamp

293650096

$3.00

5750r

Tridon Clamp

293650054

$8.63

5750s

Mid Rear CVT Exhaust Duct

706600270

$44.75

5750t

Adaptor

707002266

$10.82

5750u

Torx Screw M5 X 20

250000792

$2.00

5750v

Elastic Flange Nut M5

233251494

$2.00

5750w

Flat Washer 5 mm, Stainless

234052600

$0.73

5750x

Torx Screw M6 X 14

250000851

$2.00

5750y

Air Inlet Cover

705012553

$44.00

190

Front CVT Duct

706600248

$25.34

200

Front CVT Cooling Duct

706600313

$48.48

205

Norma Clamp

514052924

$12.15

220

Hose Support

706600253

$16.39

230

Torx Screw M6 X 20

250000722

$1.54

231

Panel Nut M6 X 1.0

250100198

$1.99

233

Panel Nut M5 X 0.8

250000958

$4.00

250

Front CVT Cooling Duct

706600306

$48.48

255

Norma Gear Clamp

514052983

$14.90

258

Norma Gear Clamp

514052983

$14.90

265

Rear CVT Cooling Duct

706600305

$167.13

267

Norma Gear Clamp

514052983

$14.90

270

Rear CVT Duct

706600223

$117.88

275

Gear Clamp (Norma)

514052861

$7.57

276

Norma Gear Clamp

514052983

$14.90

277

Norma Clamp

293650096

$3.00

278

Tridon Clamp

293650054

$8.63

1202

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73
