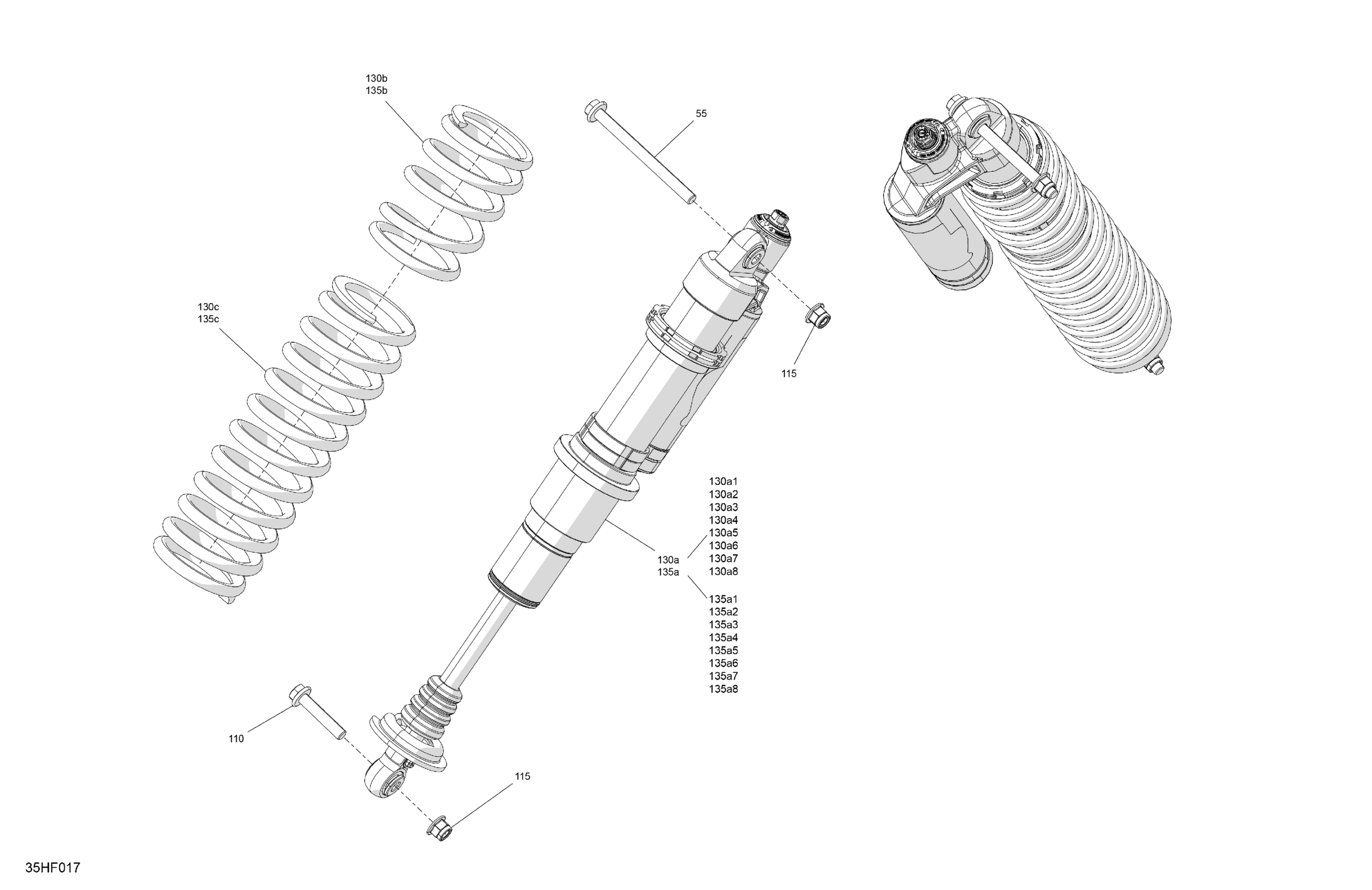

Can-Am Maverick Max - TURBO RR - XDS STD - 7VTH - Timeless Black Metallic - 64" Width CALI, 2026 Suspension - Front Shocks Diagram

Description

Price

Flange Screw M12 X 145

250000861

$5.47

110

Flange Screw M12 X 60

250000857

$6.08

115

Elastic Flange Nut M12

250001195

$2.15

130a

LH Front Shock | Includes 130a to 130a5

706202788

$1,099.99

130a1

Spherical Bearing

715900337

$80.74

130a2

O-Ring Bushing

715900338

$10.98

130a3

Circlip

715900480

$11.06

130a4

Reducer

715900481

$27.66

130a5

Ball Joint

706004078

$45.12

130a6

Crossover Ring

715900594

$14.98

130a7

Spring Retainer

715900598

$36.89

130a8

Spring Coupler Long

715900591

$32.28

130b

Deep Black, Compression Spring

706205333

$119.97

130c

Deep Black, Compression Spring

706205350

$147.66

135a

RH Front Shock | Includes 135a to 135a5

706202789

$1,109.99

135a1

Spherical Bearing

715900337

$80.74

135a2

O-Ring Bushing

715900338

$10.98

135a3

Circlip

715900480

$11.06

135a4

Reducer

715900481

$27.66

135a5

Ball Joint

706004078

$45.12

135a6

Crossover Ring

715900594

$14.98

135a7

Spring Retainer

715900598

$36.89

135a8

Spring Coupler Long

715900591

$32.28

135b

Deep Black, Compression Spring

706205333

$119.97

135c

Deep Black, Compression Spring

706205350

$147.66
