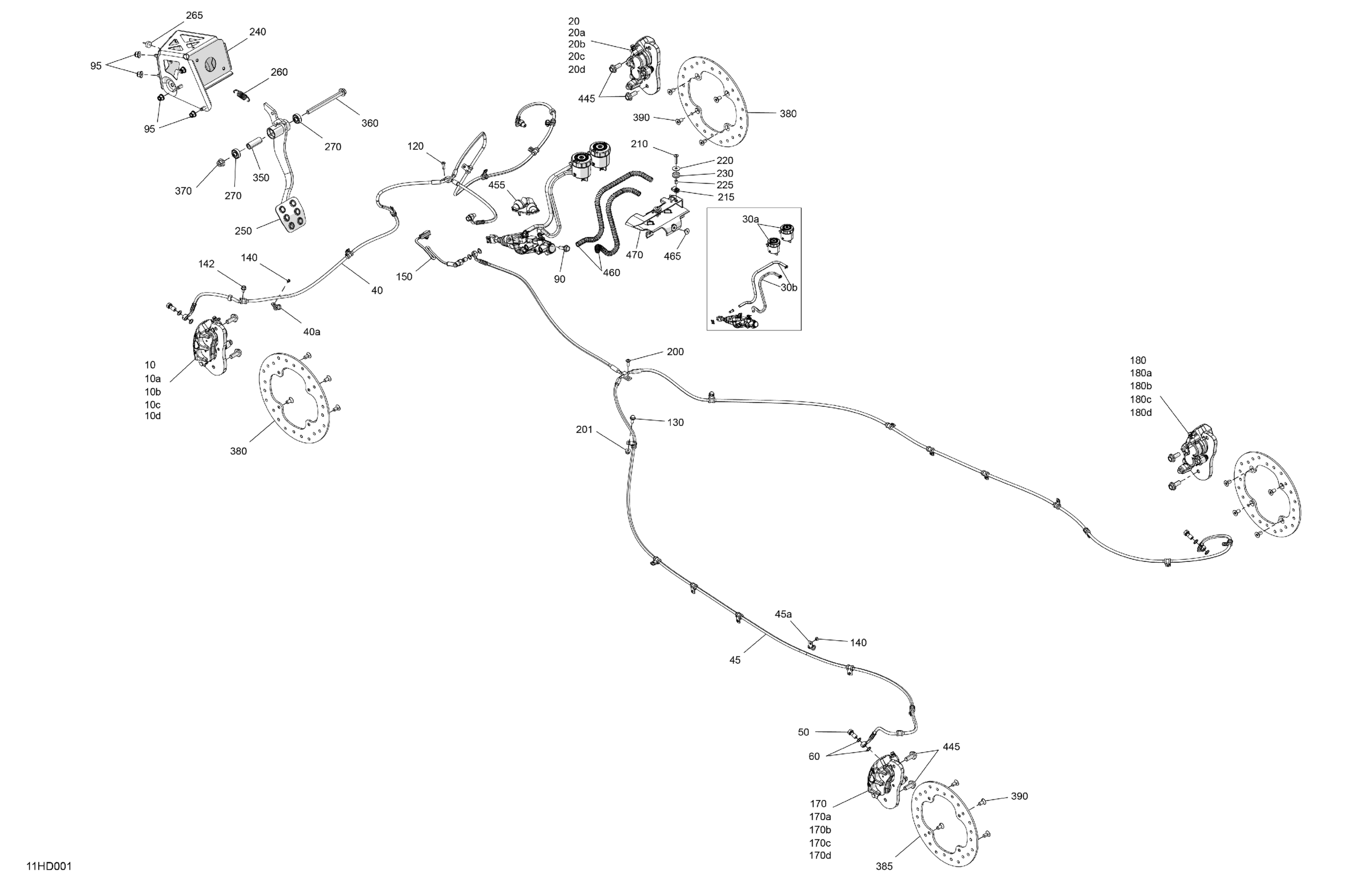

Can-Am Maverick MAX Turbo - DS - 7WRE - Fiery Red Metallic - 64" Width CALI, 2024 Mechanic - Brake System Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$360.49

10a

LH Brake Pads

715900379

$79.49

10b

Pin Kit | Packages STD & PRO

715900384

$12.12

10c

Bleeding Screw

705601017

$6.35

10d

Cap Spring Kit

715900385

$17.59

20

RH Front Brake Caliper | Includes 20 to 20c

705602181

$370.99

20a

RH Brake Pads

715900380

$79.49

20b

Pin Kit | Packages STD & PRO

715900384

$12.12

20c

Bleeding Screw

705601017

$6.35

20d

Cap Spring Kit

715900385

$17.59

30a

Oil Tank

705601020

$39.99

30b

Housing Oil Hose

705601866

$15.87

40

Front Flexible Hose | Includes 40 to 40a

705601492

$153.49

40a

Clamp

293650256

$5.49

45

Rear Flexible Hose | Includes 45 to 45a

705601570

$211.99

45a

Clamp

293650256

$5.49

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

60

Copper Washer

705601628

$4.44

90

Hex. Flange Screw M8 X 25

207682544

$1.35

95

Hex. Elastic Flange Nut M8

233281416

$1.48

120

Torx Screw M6 X 16 | Not shown

235661644

$5.29

130

Hex. Flange Screw M6 X 16

207661644

$0.74

140

Pop Rivet 3/16"

390402200

$0.35

142

Hex. Flange Screw M6 X 10

210261040

$1.48

150

Brake Switch

705601250

$59.49

170

LH Rear Brake Caliper | Includes 170 to 170d

705602186

$307.49

170a

LH Brake Pads

715900386

$79.49

170b

Pin Kit | Packages STD & PRO

715900384

$12.12

170c

Bleeding Screw

705601017

$6.35

170d

Cap Spring Kit

715900385

$17.59

180

RH Rear Brake Caliper | Includes 180 to 180d

705602187

$307.49

180a

RH Brake Pads

715900387

$79.49

180b

Pin Kit | Packages STD & PRO

715900384

$12.12

180c

Bleeding Screw

705601017

$6.35

180d

Cap Spring Kit

715900385

$17.59

200

Torx Screw K50 X 16

250000720

$1.69

201

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

210

Torx Screw M5 X 25

250000762

$2.11

215

Panel Nut M5 X 0.8

250000958

$4.23

220

Flat Washer

250200040

$1.90

225

Bushing

293900112

$10.06

230

Grommet

414036300

$2.79

240

Brake Support Plate Ass'y

705207621

$50.99

250

Brake Pedal

705601453

$57.99

260

Brake Pedal Spring

705600792

$9.10

265

Rubber Stopper

708000759

$4.19

270

Ball Bearing

705601974

$7.49

350

Bushing | RT

705601275

$15.81

360

Hex. Flange Screw, M10 X 130

230603046

$7.41

370

Hex. Flange Elastic Nut M10

233201436

$2.11

380

Front Disc Brake

705601841

$51.99

385

Rear Disc Brake

705601840

$59.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

445

Hex. Flange Screw M10 X 25

207502546

$2.11

455

Hose Support

705601750

$4.55

460

Tubing 10 MM 1000MM Long

219704407

$2.79

465

Oil Tank Support

705601815

$5.39

470

Pop Rivet 3/16"

293150103

$0.55
