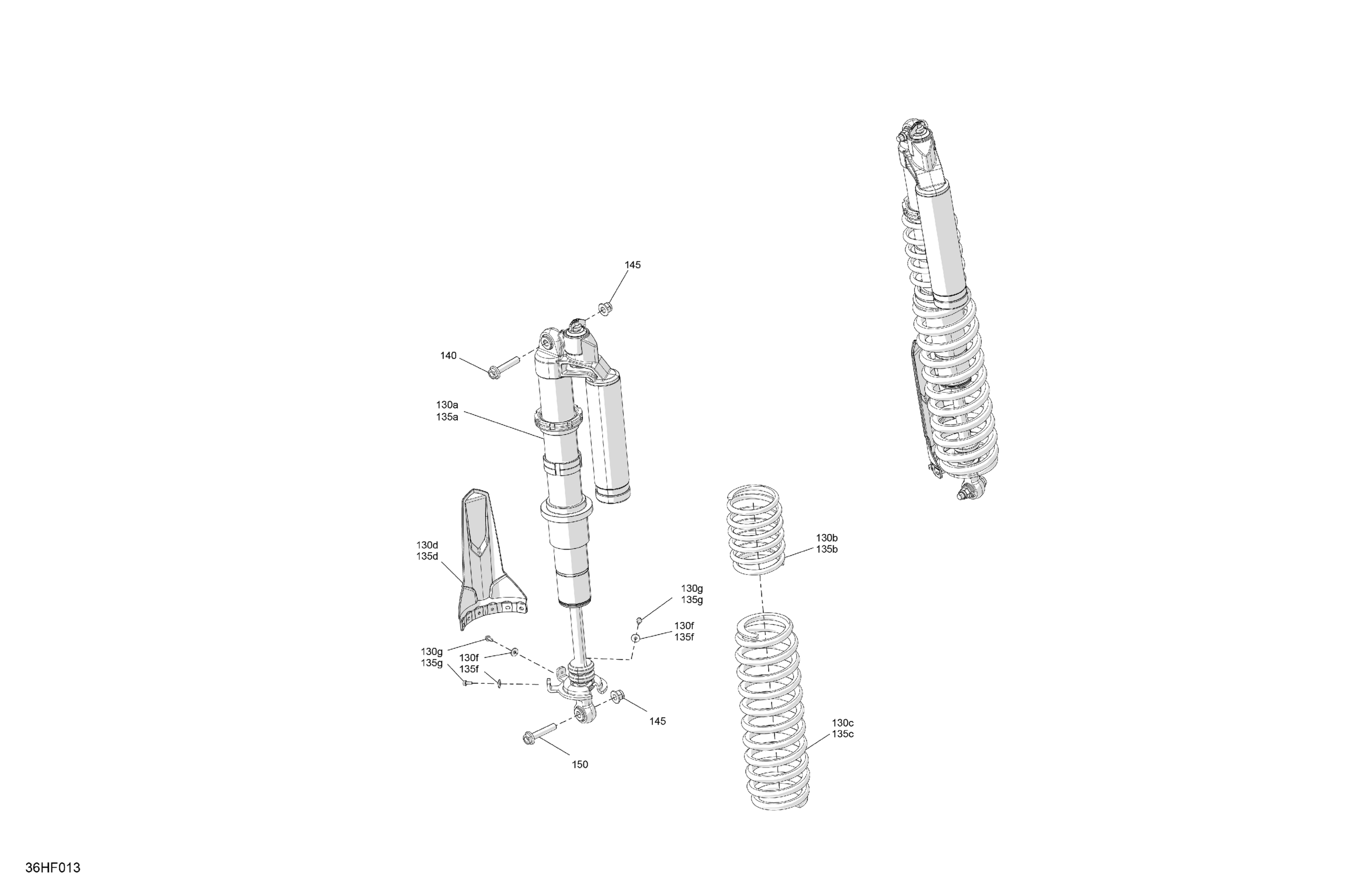

Can-Am Maverick Max - TURBO - DS - 7WTC - Scandi Blue - 64" Width, 2026 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber | Includes 130a to 130a2

706004678

$933.05

130b

Orange Crush, Compression Spring

706206117

$96.89

130c

Orange Crush, Compression Spring

706206118

$147.66

130d

Protector

706202215

$9.23

130f

Washer M5

250200025

$0.61

130g

Hex Flange Screw M5 X 11

210251150

$1.74

135a

RH Rear Adjustable Shock Absorber

706004679

$923.05

135b

Orange Crush, Compression Spring

706206117

$96.89

135c

Orange Crush, Compression Spring

706206118

$147.66

135d

Protector

706202215

$9.23

135f

Washer M5

250200025

$0.61

135g

Hex Flange Screw M5 X 11

210251150

$1.74

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

250001195

$2.15

150

Flange Screw M12 X 60

250000857

$6.08
