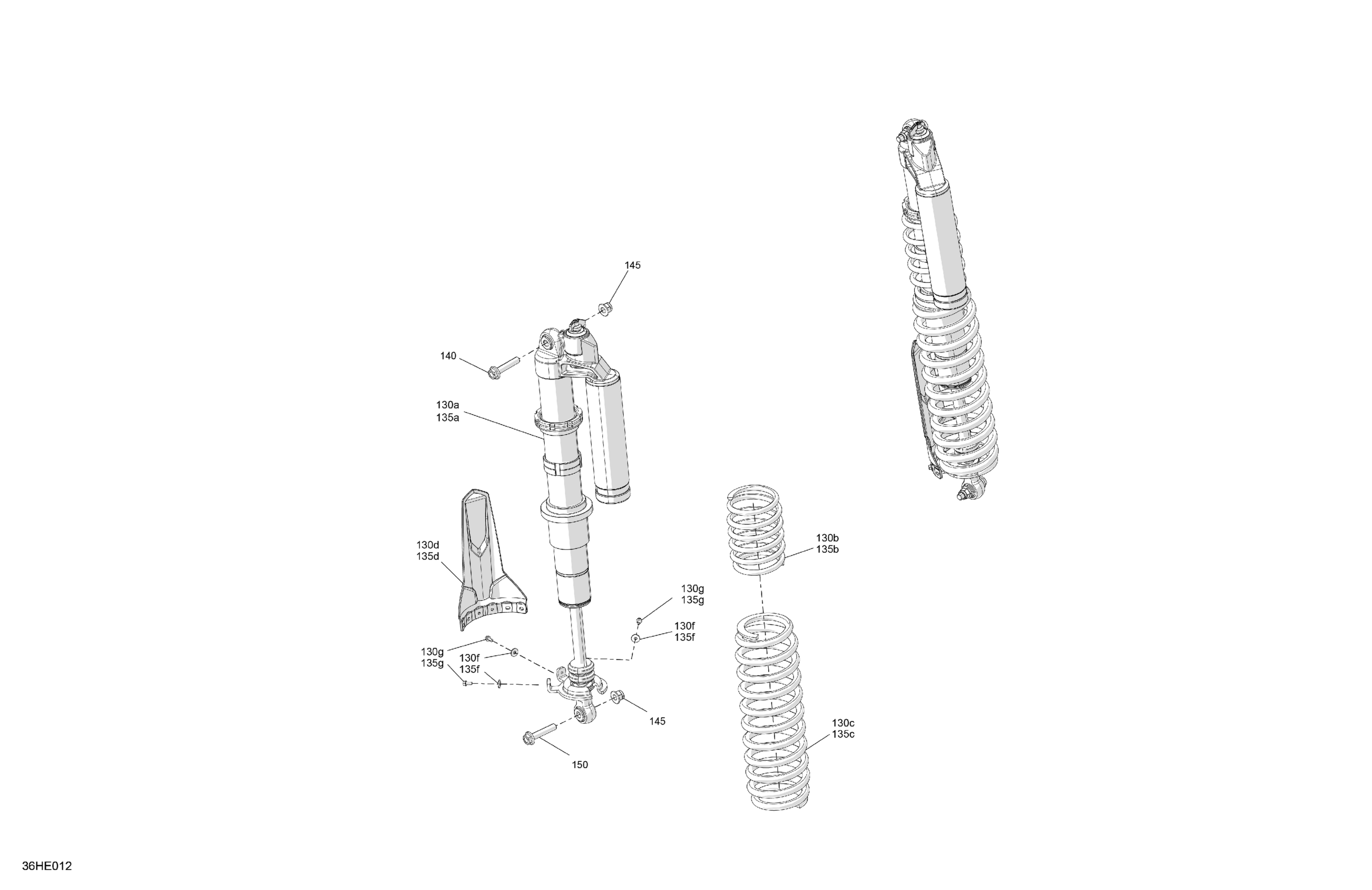

Can-Am International - Maverick MAX - TURBO - DS - 7WSJ - Scandi Blue - 64" Width, 2025 05- Suspension - Rear Shocks Diagram

#

Description
Price

130a

LH Rear Adjustable Shock Absorber | Includes 130a to 130a2

706004678

Unavailable

130b

Orange Crush, Compression Spring

706206117

Unavailable

130c

Orange Crush, Compression Spring

706206118

Unavailable

130d

Protector

706202215

Unavailable

130f

Washer M5

250200025

Unavailable

130g

Hex Flange Screw M5 X 11

210251150

Unavailable

135a

RH Rear Adjustable Shock Absorber

706004679

Unavailable

135b

Orange Crush, Compression Spring

706206117

Unavailable

135c

Orange Crush, Compression Spring

706206118

Unavailable

135d

Protector

706202215

Unavailable

135f

Washer M5

250200025

Unavailable

135g

Hex Flange Screw M5 X 11

210251150

Unavailable

140

Flange Screw M12 X 60

250000857

Unavailable

145

Elastic Flange Nut M12

250001195

Unavailable

150

Flange Screw M12 X 60

250000857

Unavailable
