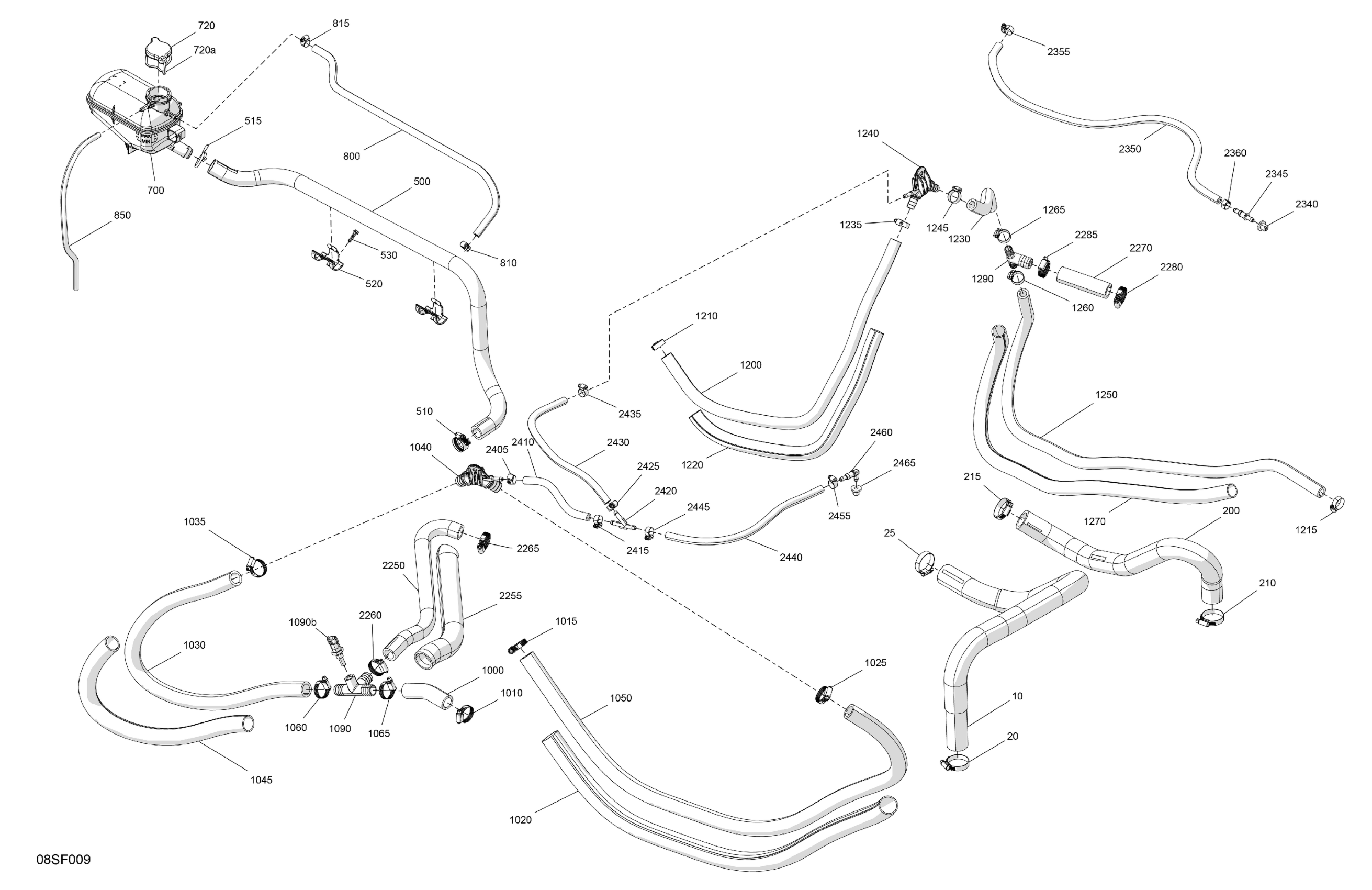

Sea-doo GTX - 325 - LIMITED - 26TC - Hybrid White Peal - Audio, 2026 Engine - Cooling Diagram

#

Description
Price

10

Hose

276000516

$70.49

20

Norma Clamp

293650245

$14.99

25

Norma Clamp

293650245

$14.99

200

Formed Hose

276000517

$56.99

210

Norma Clamp

293650245

$14.99

215

Norma Clamp

293650245

$14.99

500

Coolant Tank Hose

276000537

$37.99

510

Tridon Gear Clamp

293650019

$5.82

515

Spring Clamp

293650115

$3.09

520

Hose Support

270001126

$8.43

530

Hex. Flange PT Screw K50 X 20

241152040

$2.11

700

Coolant Tank

276000419

$119.99

720

Pressure Cap | Includes 720 to 720a

276000100

$25.99

720a

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

800

Hose 6,4 MM ID

276000425

$7.41

810

Gear Clamp

293650287

$2.11

815

Gear Clamp

293650287

$2.11

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

1000

Hose 19Mm X 4000 mm Long

219704613

$50.99

1010

Gear Clamp

293650284

$4.44

1015

Gear Clamp

293650284

$4.44

1020

Tubing 25 MM 1000MM Long

219704402

$15.99

1025

Gear Clamp

293650284

$4.44

1030

Hose 19Mm X 4000 mm Long

219704613

$50.99

1035

Gear Clamp

293650284

$4.44

1040

Fitting

276000547

$5.19

1045

Tubing 25 MM 1000MM Long

219704402

$15.99

1050

Hose 19Mm X 4000 mm Long

219704613

$50.99

1060

Gear Clamp

293650284

$4.44

1065

Gear Clamp

293650284

$4.44

1090

Temperature Sensor Fitting Ass'y | Includes 1090 to 1090b

293710164

$66.99

1090b

Temperature Sensor

278002895

$39.99

1200

Was 276000001 Hose 12.5 mm

219704394

$51.99

1210

Clamp Gear

293650285

$3.27

1215

Clamp Gear

293650285

$3.27

1220

Was 515175319 Tubing 22 mm

219704423

$14.99

1230

Was 276000001 Hose 12.5 mm

219704394

$51.99

1235

Clamp Gear

293650285

$3.27

1240

Fitting

276000565

$5.19

1245

Clamp Gear

293650285

$3.27

1250

Was 276000001 Hose 12.5 mm

219704394

$51.99

1260

Clamp Gear

293650285

$3.27

1265

Clamp Gear

293650285

$3.27

1270

Was 515175319 Tubing 22 mm

219704423

$14.99

1290

T-Fitting

293710132

$12.65

2250

Formed Hose

276000422

$22.49

2255

Tubing 25 MM 1000MM Long

219704402

$15.99

2260

Gear Clamp

293650284

$4.44

2265

Gear Clamp

293650284

$4.44

2270

Hose 19Mm X 4000 mm Long

219704613

$50.99

2280

Gear Clamp

293650284

$4.44

2285

Gear Clamp

293650284

$4.44

2340

Grommet

293720029

$1.59

2345

Male Connector

414518500

$4.23

2350

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

2355

Gear Clamp

293650287

$2.11

2360

Oetiker Gear Clamp

293650025

$3.09

2405

Gear Clamp

293650287

$2.11

2410

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

2415

Gear Clamp

293650287

$2.11

2420

Y-Fitting

293710059

$9.69

2425

Gear Clamp

293650287

$2.11

2430

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

2435

Gear Clamp

293650287

$2.11

2440

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

2445

Gear Clamp

293650287

$2.11

2455

Gear Clamp

293650287

$2.11

2460

Elbow Male Connector

414580600

$4.23

2465

Grommet

293720029

$1.59
