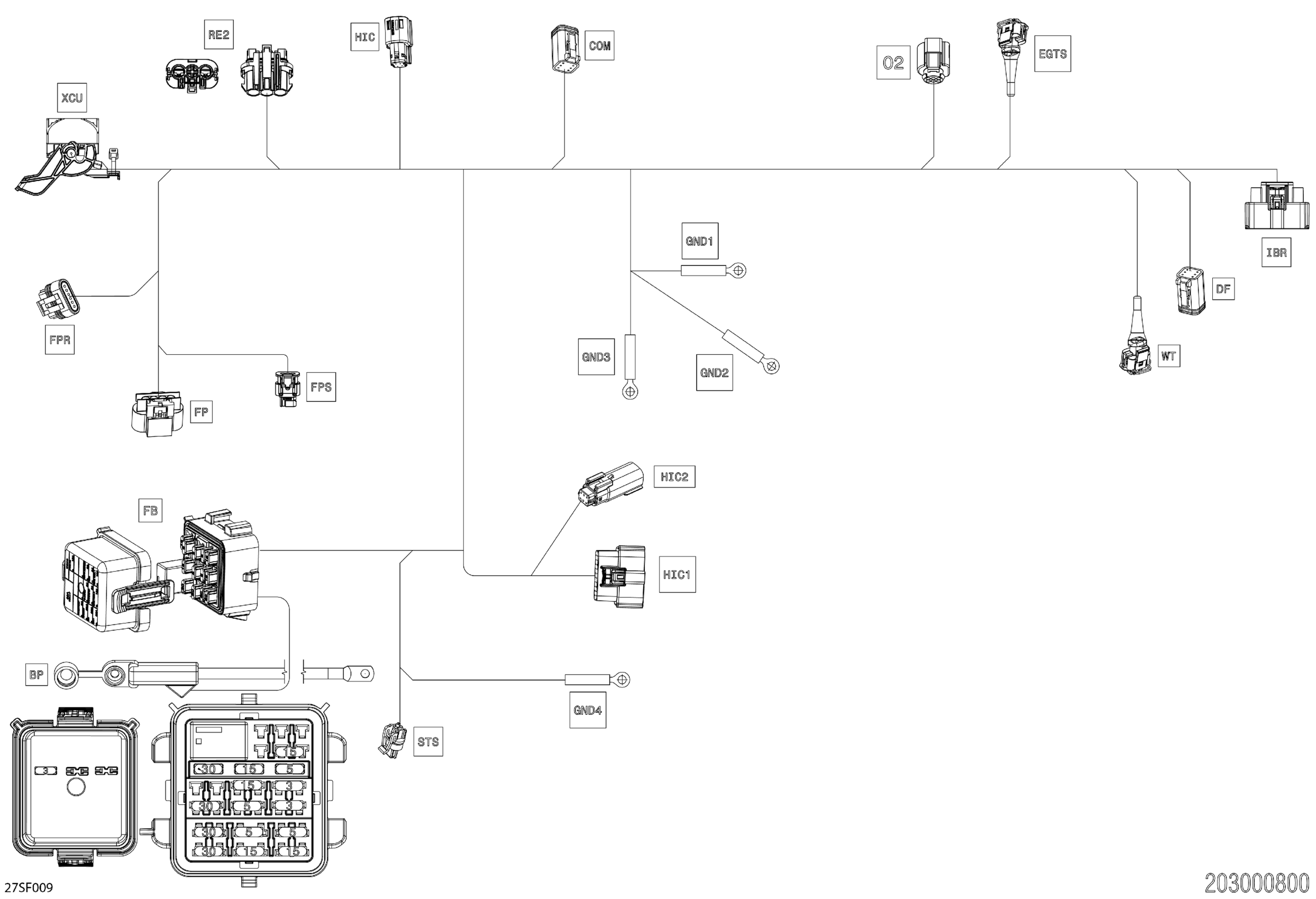

Sea-doo GTX - 325 - LIMITED - 26TC - Hybrid White Peal - Audio, 2026 Electric - Main Harness - 278004730 Diagram

#

Description
Price

1000

Main Wiring Harness

278004730

$739.99

BP

Battery Cable

278003716

$71.99

COM

Female Housing 6 Circuits

710002706

$20.49

COM

Lock

710002705

$4.44

COM

Female Terminal

710005438

$4.29

COM

Female Terminal

710005439

$4.44

DF

Female Housing 6 Circuits

710002706

$20.49

DF

Lock

710002705

$4.44

DF

Plug

710005437

$3.17

DF

Female Terminal

710005439

$4.44

EGTS

RUBBER CAP - Call your local BRP dealership

278001484

Unavailable

EGTS

Housing

710001136

$13.22

EGTS

Seal

415128501

$1.89

EGTS

Female Terminal

710001137

$4.55

FB

Fuse Box Cover

278004138

$12.59

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Fuse Base Ass'y

278003448

$31.99

FB

Seal Plug

278002880

$7.86

FB

Relay 30 Amp

278003828

$13.99

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

710000048

$7.69

FB

Wire Seal

278001065

$7.69

FB

Female Terminal

710000918

$7.69

FB

Female Terminal

278002578

$1.04

FB

Female Terminal

515177177

$6.49

FP

Male Housing, 4 Circuits

278002185

$7.90

FP

Lock

710001222

$2.09

FP

Wire Seal

278002186

$5.50

FP

Female Terminal

278002187

$6.39

FPR

Female Terminal Housing 6 Circuits

278002299

$9.10

FPR

Female Terminal

278001114

$3.19

FPS

Connector Tyco Female 3 Cavities

278004058

$34.99

FPS

Wire Seal

710001118

$1.16

FPS

Tyco Female Terminal

278004059

$4.55

GND1

Open Barrel Terminal

278001392

$4.79

GND2

Open Barrel Terminal

278001392

$4.79

GND3

Open Barrel Terminal

278001392

$4.79

GND4

Open Barrel

278000992

$2.21

HIC

Female Housing, 4 circuits

278003535

$25.99

HIC

Female Terminal

515178018

$1.19

HIC1

Female Housing 20 Circuits

278002858

$22.49

HIC1

Sealing Cap

278002860

$1.79

HIC1

Female Terminal

515178018

$1.19

HIC1

Female Terminal

515178014

$2.39

HIC2

Housing 6 Circuits

278003866

$13.75

HIC2

Male Terminal

515178013

$3.19

IBR

Female Housing ,16 Circuits

278003484

$17.59

IBR

Seal Plug

278002880

$7.86

IBR

Sealing Cap

278002860

$1.79

IBR

Seal

278003046

$0.92

IBR

Female Terminal

278003045

$2.99

IBR

Female Terminal

515178018

$1.19

O2

Female Housing

515177406

$38.99

O2

SEAL - Call your local BRP dealership | Model-North America

710002664

Unavailable

O2

Terminal

710002773

$2.09

R1

Shrink Tubing, 6 mm

515177246

$1.04

R1

Resistor

710000700

$31.99

RE2

Female Housing, 3 Circuits

710000879

$25.99

RE2

Seal

710000881

$17.99

RE2

Seal

278003685

$16.79

RE2

Female Terminal

710000877

$9.12

STS

Female Housing, 2 Circuits

515177192

$9.12

STS

Wire Seal

710001163

$7.69

STS

Female Terminal

710001164

$8.89

WT

RUBBER CAP - Call your local BRP dealership

278001484

Unavailable

WT

Housing

710001136

$13.22

WT

Seal

415128501

$1.89

WT

Female Terminal

710001137

$4.55

XCU A

Cover

515178601

$18.49

XCU A

Housing 56 Circuits

515178595

$29.49

XCU A

Plate

515178604

$4.59

XCU A

Plug

515178599

$3.17

XCU A

Plug

515178600

$3.17

XCU A

Plate

515178603

$4.59

XCU A

Terminal

515178596

$3.72

XCU A

Terminal

515178598

$3.61

XCU A

Terminal

515178666

$4.55

XCU A

Terminal

515178597

$15.36
