Description

Price

1

Timing / Drive Cover Ass'y | Includes no. 1-11

420912425

$762.99

2

Needle Bushing

420232482

$20.99

3

Plug Screw M20 X 1.5

420641317

$14.22

4

Oil Seal

420650316

$11.65

5

Rotary Seal

420650371

$43.49

6

Dowel 11.8X13

420229155

$11.60

7

Needle Pin

420929070

$1.90

8

Balll Bearing

420232855

$30.49

9

Lock Ring

420945880

$4.44

10

Double Sealed Bearing

420232103

$15.34

11

Center Pin 8 X 12

420632010

$4.01

12

Stator Plate

420889728

$319.49

13

Torx Flange Screw M6 X 35

420641258

$3.38

14

Torx Flange Screw M6 X 16

420641048

$2.96

15

Retaining Plate

420926303

$1.39

16

Magneto Flywheel

420296900

$461.99

17

Trigger Wheel

420966851

$18.49

18

Starter Double Gear 160/86 T

420834916

$285.99

19

Hex Screw

295501162

$15.28

20

Oil Collector Shell

420201401

$71.99

21

Torx Flange Screw M6 X 20

420440207

$3.06

22

Needle Bushing

420232482

$20.99

23

Starter Drive

420888041

$274.99

24

Spring Disk | Includes no. 18-19

420238307

$28.49

24

Spring Washer

420238300

$7.41

25

Thrust Washer

420827280

$8.47

26

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

27

O-Ring

420631310

$4.44

28

Carbon Brush Set

420881340

$67.99

29

Starter Gear, 9 Teeth

420834522

$74.99

30

Retaining Ring

420845601

$4.55

31

Torx Flange Screw M6 X 25

420641238

$3.27

32

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

33

O-Ring

420431580

$14.83

34

Torx Flange Screw M6 X 16

420641048

$2.96

35

Timing Drive Cover Gasket (1603 SXHO) | Timing drive cover (1603 SXHO)

420230066

$20.49

36

Clamp

420853414

$18.49

37

Torx Flange Screw M6 X 35

420641258

$3.38

38

Torx Flange Screw M6 X 85

420641228

$7.41

39

Input Shaft

420820462

$119.99

40

Spacer

420244034

$20.99

41

O-Ring

420250056

$0.77

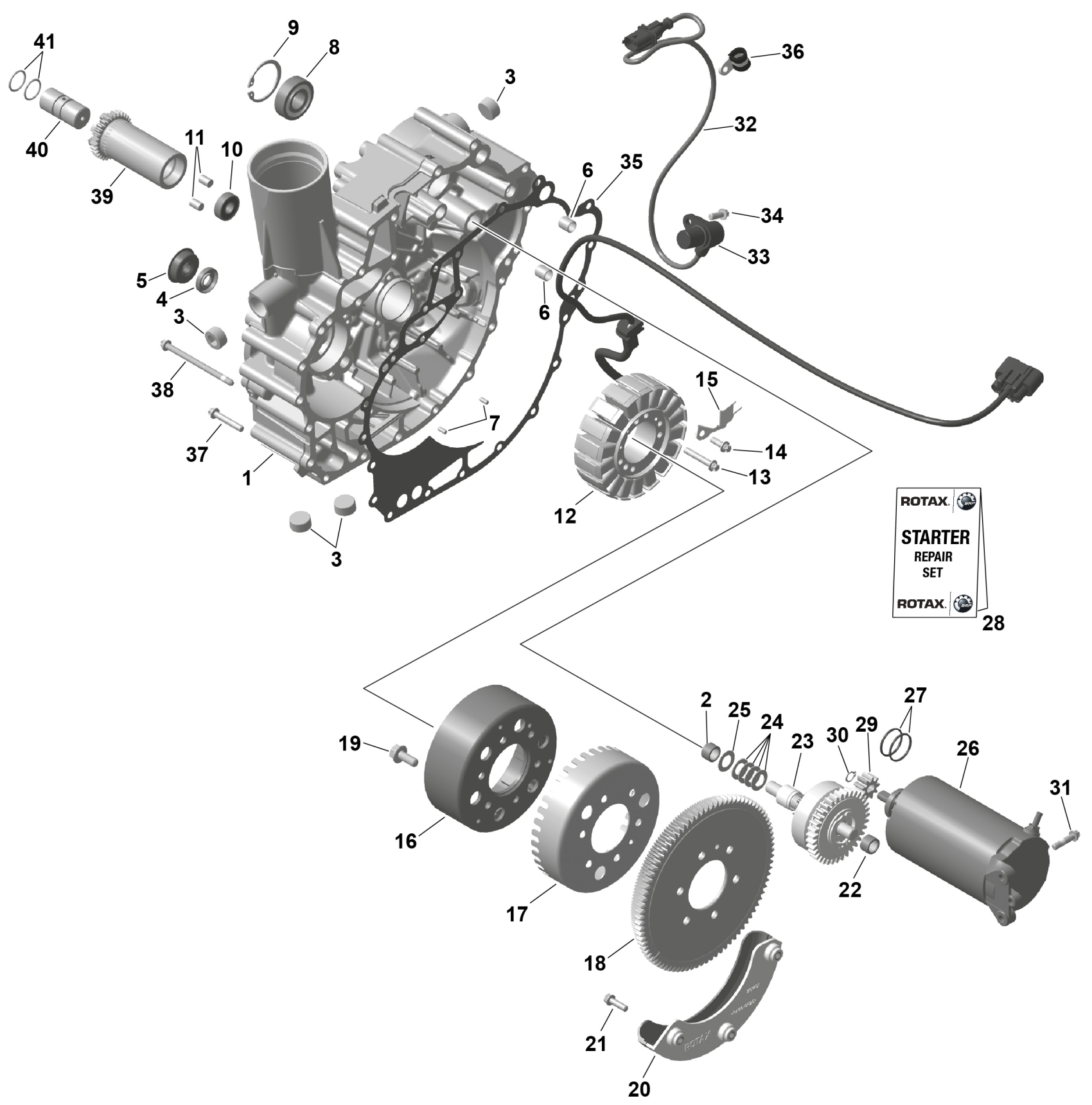

Sea-doo International - GTX - 325 - LIMITED - 26TA - Hybrid White Peal - Audio, 2026 01- ROTAX - Magneto and Electric Starter Diagram

Timing / Drive Cover Ass'y | Includes no. 1-11

Needle Bushing

Plug Screw M20 X 1.5

Oil Seal

Rotary Seal

Dowel 11.8X13

Needle Pin

Balll Bearing

Lock Ring

Double Sealed Bearing

Center Pin 8 X 12

Stator Plate

Torx Flange Screw M6 X 35

Torx Flange Screw M6 X 16

Retaining Plate

Magneto Flywheel

Trigger Wheel

Starter Double Gear 160/86 T

Hex Screw

Oil Collector Shell

Torx Flange Screw M6 X 20

Needle Bushing

Starter Drive

Spring Disk | Includes no. 18-19

Spring Washer

Thrust Washer

Electric Starter Ass'y | Includes no. 20-21

O-Ring

Carbon Brush Set

Starter Gear, 9 Teeth

Retaining Ring

Torx Flange Screw M6 X 25

Crankshaft Position Sensor Ass'y | Includes 10 to 11

O-Ring

Torx Flange Screw M6 X 16

Timing Drive Cover Gasket (1603 SXHO) | Timing drive cover (1603 SXHO)

Clamp

Torx Flange Screw M6 X 35

Torx Flange Screw M6 X 85

Input Shaft

Spacer

O-Ring
