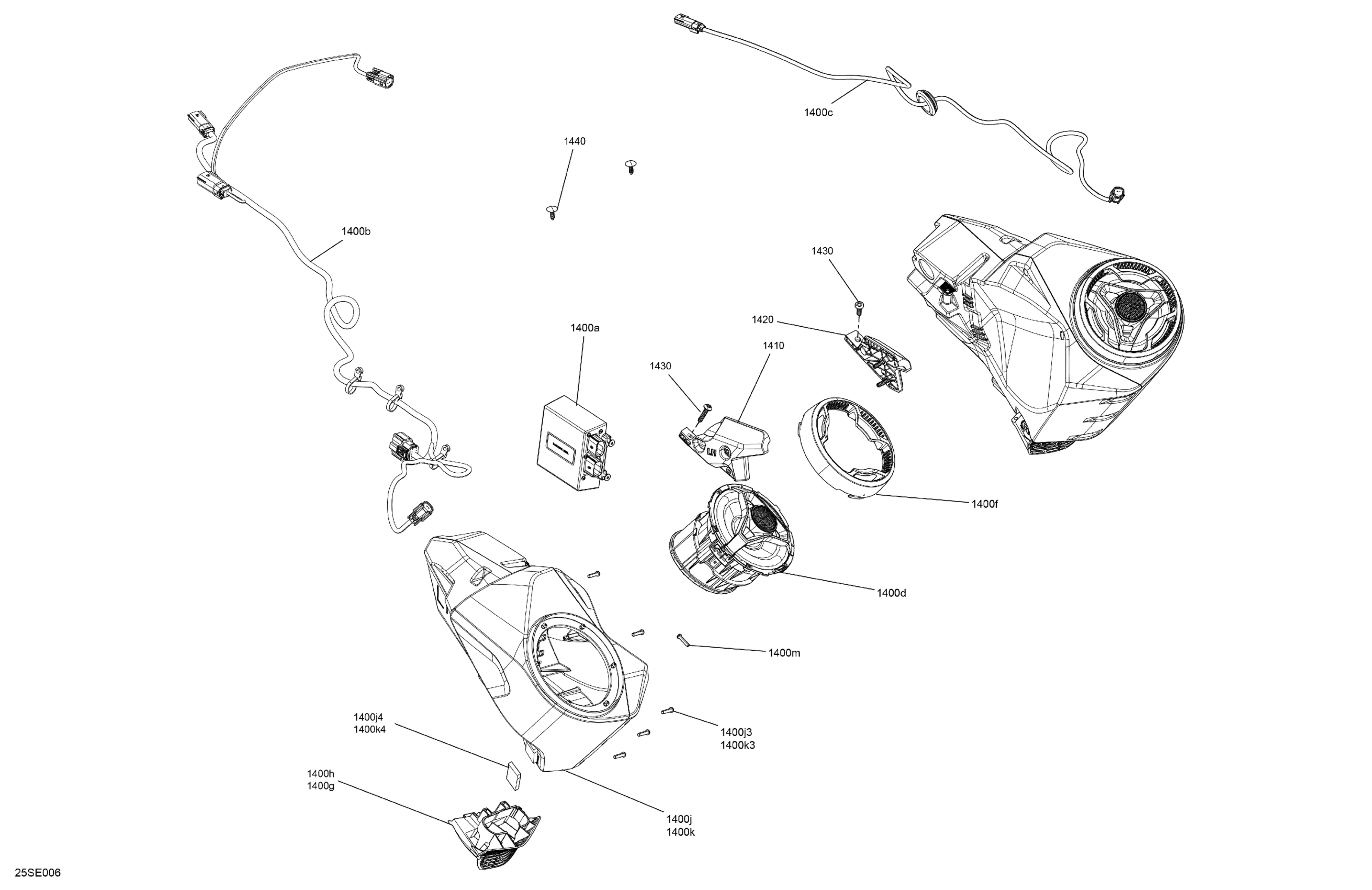

Sea-doo GTX - 325 - LIMITED - 26SB - Teal Blue Metalic - Audio, 2025 Electric - Audio System Diagram

Description

Price

1400a

Amplifier

278003464

$426.09

1400b

Wiring Harness

278004491

$75.34

1400c

Speaker Harness

278003462

$18.63

1400d

Speaker

278003463

$142.51

1400f

Speaker Grille

278003466

$14.90

1400g

Deep Black, LH Protective Grille

278003616

$8.37

1400h

Deep Black, RH Protective Grille

278003617

$8.37

1400j

LH Speaker Enclosure Ass'y | Includes 1400j to 1400j4

278004688

$300.72

1400j3

Plastite Torx Screw #10 X 7/8"

250000207

$1.88

1400j4

Stopper

278003860

$0.70

1400k

RH Speaker Enclosure Ass'y | Includes 1400m to 1400m4

278003736

$300.72

1400k3

Plastite Torx Screw #10 X 7/8"

250000207

$1.88

1400k4

Stopper

278003860

$0.70

1400m

Plastite Torx Screw #10 X 7/8"

250000207

$1.88

1410

LH Bracket

278003489

$5.21

1420

RH Bracket

278003518

$5.21

1430

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

1440

Black, Dart

293730011

$0.91
