02- Engine - System

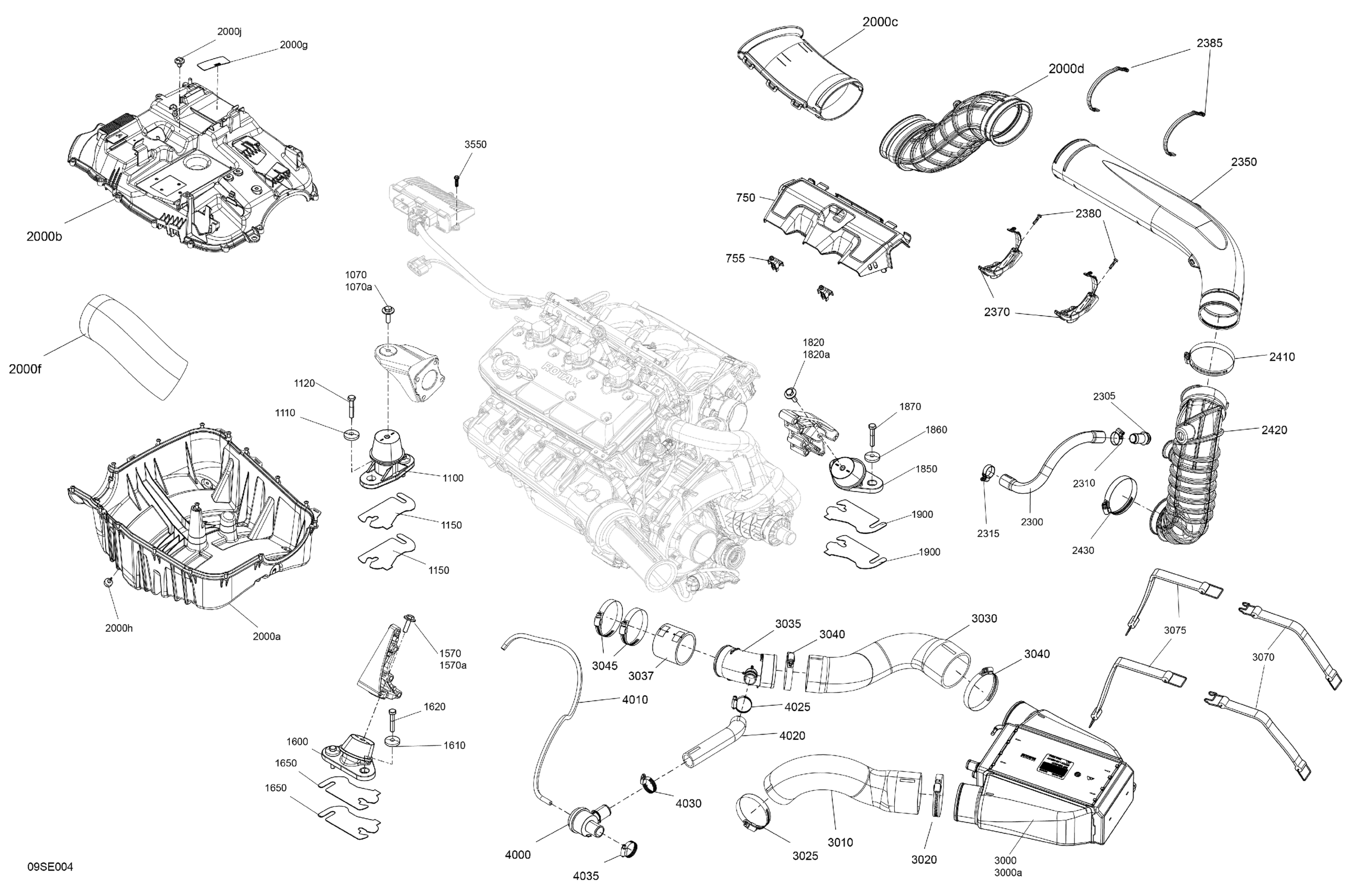

Sea-doo International - GTX - 325 - LIMITED - 26SA - Hybrid White Peal - Audio, 2025 02- Engine - System Diagram
#
750
Engine Cover
270001130
$74.99
755
Snap Fastener
293730112
$2.19
1070
Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a
250000933
$2.85
1070a
Hexagonal Screw M8 X 30
250000888
$3.17
1100
Engine Support Ass'y
270001096
$97.99
1110
Cone Washer
250200018
$5.61
1120
Hexagonal Head Cap Screw M8 X 45
250000782
$2.85
1150
Shim 1.3 mm
270000762
$12.99
1570
Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a
250000933
$2.85
1570a
Hexagonal Screw M8 X 30
250000888
$3.17
1600
Engine Support Ass'y
270001081
$109.99
1610
Cone Washer
250200018
$5.61
1620
Hexagonal Head Cap Screw M8 X 45
250000782
$2.85
1650
Shim 1.3 mm
270000762
$12.99
1820
Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a
250000933
$2.85
1820a
Hexagonal Screw M8 X 30
250000888
$3.17
1850
Engine Support Ass'y
270001081
$109.99
1860
Cone Washer
250200018
$5.61
1870
Hexagonal Head Cap Screw M8 X 45
250000782
$2.85
1900
Shim 1.3 mm
270000762
$12.99
2000a
Lower Intake Silencer
273000422
$71.99
2000b
Upper Intake Silencer
273000423
$71.99
2000c
Intake Duct Silencer Int
273000424
$49.99
2000d
Intake Duct Silencer Out
273000428
$45.99
2000f
Intake Duct Silencer In
273000425
$48.99
2000g
Air Silencer Notice Decal
219903177
Unavailable
2000h
Rubber Stopper
708000759
$4.19
2000j
Mount Dart
710008294
$1.04
2300
Formed Hose
270000950
$10.99
2305
Breather Valve
273000234
$14.49
2310
Gear Clamp
293650284
$4.44
2315
Gear Clamp
293650284
$4.44
2350
Central Intake Duct
273000426
$48.99
2370
Duct Support
273000431
$48.99
2380
Hex. Flange PT Screw K50 X 20
241152040
$2.11
2385
Retaining Strap
273000437
$15.35
2410
Tridon Gear Clamp
293650244
$9.29
2420
Molded Compressor Hose IN
273000427
$30.49
2430
Tridon Clamp
293650179
$11.49
3000
Intercooler | Includes 3000 to 3000a
276000335
$625.49
3000a
Anode Zinc
271001942
$18.76
3010
Formed Compressor Hose Out
273000420
$76.49
3020
Tridon Gear Clamp
293650244
$9.29
3025
Tridon Clamp
293650179
$11.49
3030
Formed Throttle Body Hose IN
273000449
$92.99
3035
Intake Duct
273000448
$20.99
3037
Duct Fitting
273000469
$28.99
3040
Tridon Gear Clamp
293650244
$9.29
3045
Tridon Clamp
293650179
$11.49
3070
Fuel Tank Strap
293850094
$22.49
3075
Fuel Tank Strap
293850093
$21.99
3550
Flange Torx Screw K40 X 16
250000287
$2.11
4000
Purge Valve
273000453
$224.99
4010
Was 420660574 Pressure Hose 280 mm
219704352
$224.99
4020
Formed Check Valve Hose
273000450
$12.99
4025
Gear Clamp
293650323
$4.44
4030
Gear Clamp
293650323
$4.44
4035
Gear Clamp
293650323
$4.44
