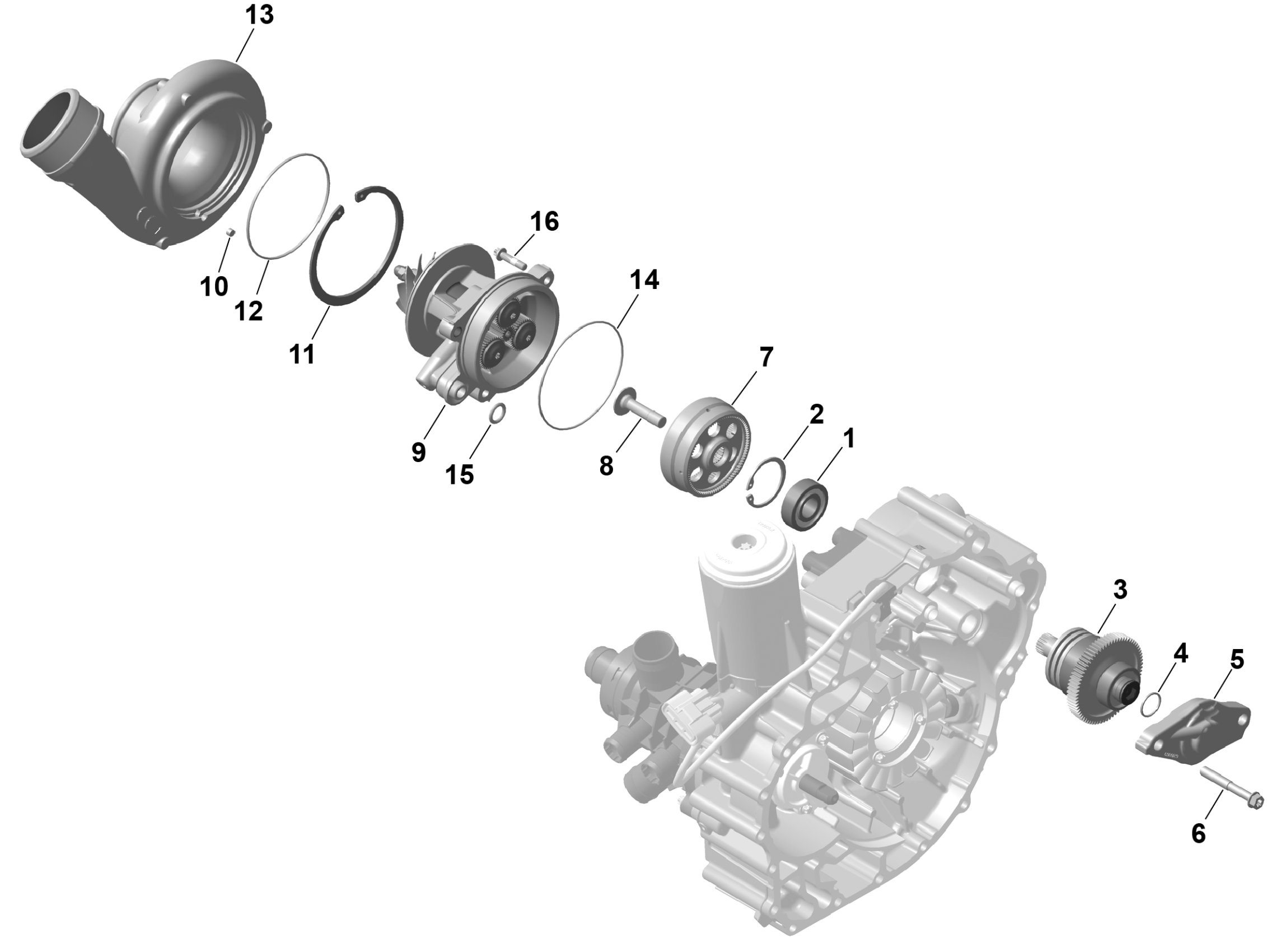

Sea-doo International - GTX - 325 - LIMITED - 26SA - Hybrid White Peal - Audio, 2025 01- ROTAX - SuperCharger Diagram

Description

Price

Balll Bearing

420232855

$30.49

Lock Ring

420945880

$4.44

Clutch Shaft Ass'y | Includes no. 3-4

420937397

$559.99

Gasket Ring

420230410

$20.49

Bearing Bracket

420210869

$61.49

Torx Flange Screw M8 X 55

420641213

$7.41

Hollow Wheel 91 Teeth

420940826

$82.49

Flat Head Screw M10X1

420242421

$7.41

Compressor Ass'y | Includes no. 9-13

420868017

$1.00

Needle Pin

420629320

$4.79

Retaining Ring

420651867

$79.99

O-Ring This part replaces 420850540.

293300026

$3.39

Not Available As Spare Parts

XXX

Unavailable

O-Ring

420650275

$6.35

O-ring

420250290

$8.85

Torx Flange Screw M6 X 25

420641238

$3.27
