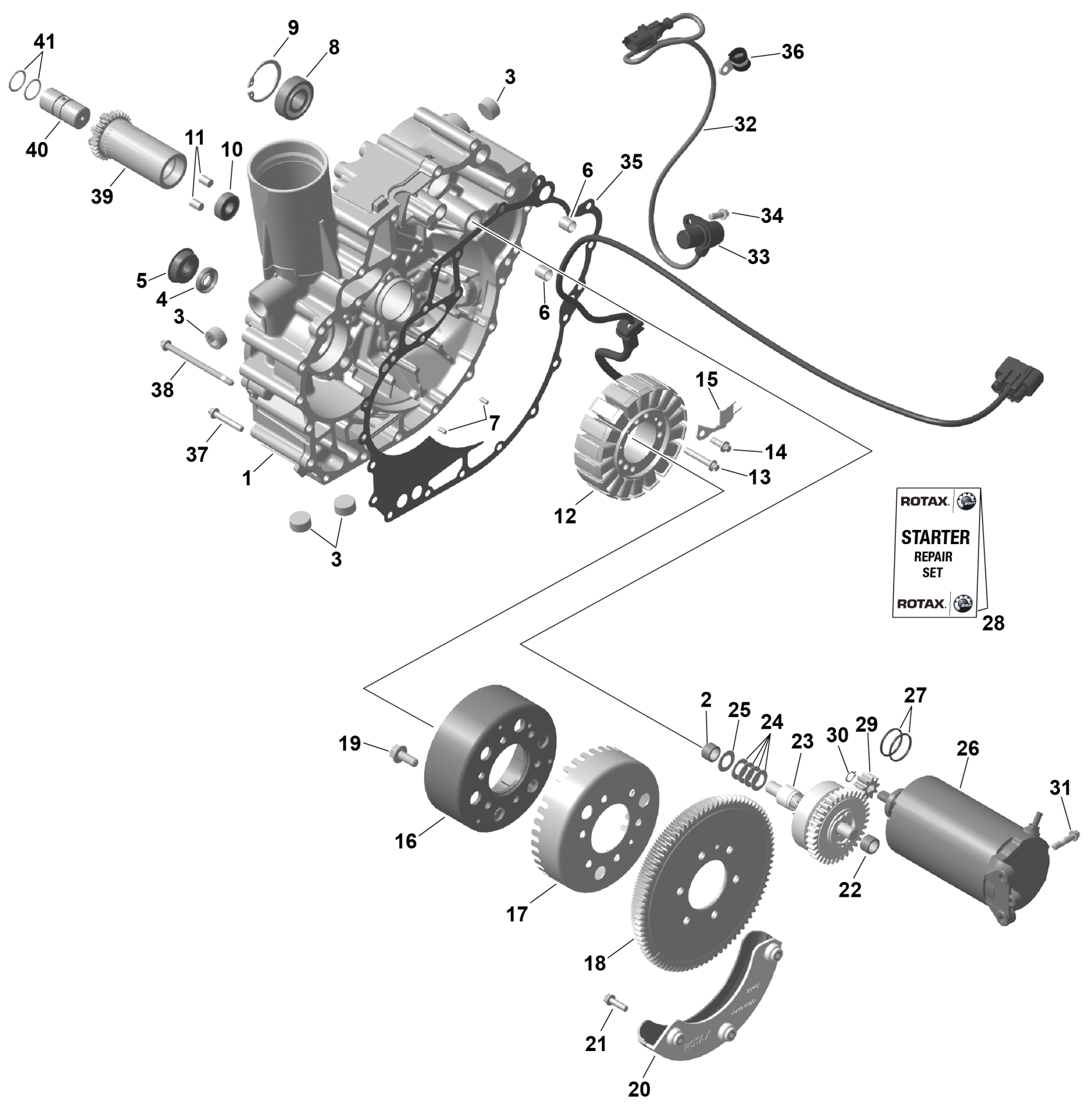

Sea-doo GTX - 325 - LIMITED - 26SB - Teal Blue Metalic - Audio, 2025 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Timing / Drive Cover Ass'y | Includes no. 1-11

420912425

Unavailable

2

Needle Bushing

420232482

$17.88

3

Plug Screw M20 X 1.5

420641317

$12.15

4

Oil Seal

420650316

$11.04

5

Rotary Seal

420650371

$41.01

6

Dowel 11.8X13

420229155

$10.01

7

Needle Pin

420929070

$1.79

8

Balll Bearing

420232855

$27.58

9

Lock Ring

420945880

$4.15

10

Double Sealed Bearing

420232103

$13.94

11

Center Pin 8 X 12

420632010

$3.52

12

Stator Plate

420889728

$319.49

13

Torx Flange Screw M6 X 35

420641258

$3.19

14

Torx Flange Screw M6 X 16

420641048

$2.82

15

Retaining Plate

420926303

$1.12

16

Magneto Flywheel

420296900

$461.99

17

Trigger Wheel

420966851

$17.13

18

Starter Double Gear 160/86 T

420834916

$264.15

19

Hex Screw

295501162

$13.16

20

Oil Collector Shell

420201401

$66.39

21

Torx Flange Screw M6 X 20

420440207

$2.91

22

Needle Bushing

420232482

$17.88

23

Starter Drive

420888041

$246.24

24

Spring Disk | Includes no. 18-19

420238307

$26.84

24

Spring Washer

420238300

$7.01

25

Thrust Washer

420827280

$7.90

26

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

27

O-Ring

420631310

$4.15

28

Carbon Brush Set

420881340

$60.42

29

Starter Gear, 9 Teeth

420834522

$68.63

30

Retaining Ring

420845601

$4.28

31

Torx Flange Screw M6 X 25

420641238

$3.07

32

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

33

O-Ring

420431580

$14.10

34

Torx Flange Screw M6 X 16

420641048

$2.82

35

Timing Drive Cover Gasket (1603 SXHO) | Timing drive cover (1603 SXHO)

420230066

$18.63

36

Clamp

420853414

$17.13

37

Torx Flange Screw M6 X 35

420641258

$3.19

38

Torx Flange Screw M6 X 85

420641228

$7.01

39

Input Shaft

420820462

$104.45

40

Spacer

420244034

$19.37

41

O-Ring

420250056

$0.72
