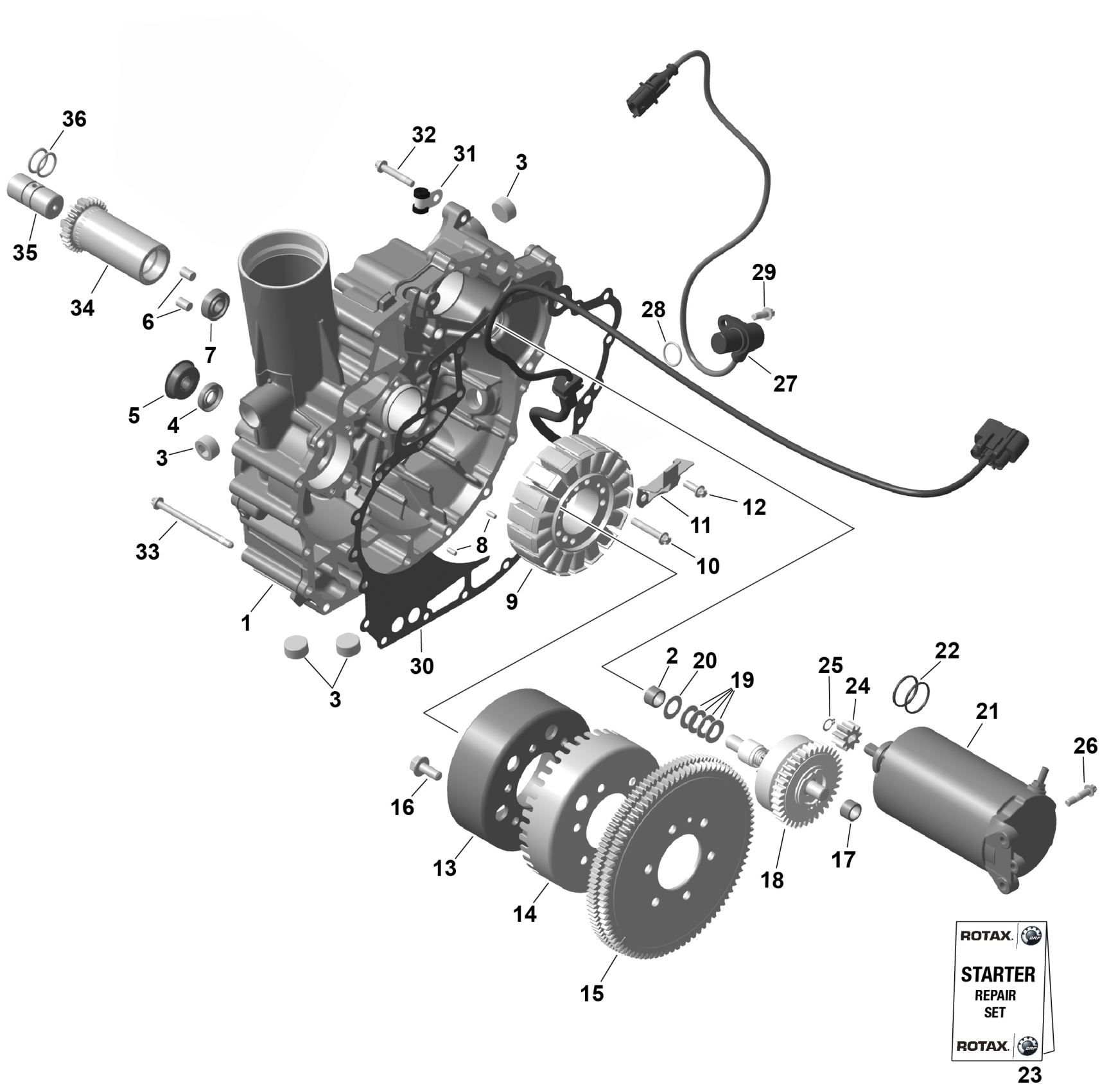

Sea-doo GTX - 300 - STD - 15TA - Blue Abyss - Audio, 2026 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes no. 1-8

420912420

$605.77

2

Needle Bushing

420232482

$15.57

3

Plug Screw M20 X 1.5

420641317

$10.58

4

Oil Seal

420650316

$9.62

5

Rotary Seal

420650371

$35.72

6

Center Pin 8 X 12

420632010

$3.07

7

Double Sealed Bearing

420232103

$12.14

8

Needle Pin

420929070

$1.56

9

Stator Plate

420889728

$278.82

10

Torx Flange Screw M6 X 35

420641258

$2.78

11

Retaining Plate

420926303

$1.12

12

Torx Flange Screw M6 X 16

420641048

$2.46

13

Magneto Flywheel

420296900

$459.52

14

Trigger Wheel

420966851

$14.92

15

Starter Double Gear 117/86 T

420834915

$231.37

16

Hex Screw

295501162

$11.47

17

Needle Bushing

420232482

$15.57

18

Starter Drive

420888041

$214.47

19

Spring Disk | Includes no. 18-19

420238307

$26.84

19

Spring Washer

420238300

$6.11

20

Thrust Washer

420827280

$6.88

21

Electric Starter Ass'y | Includes no. 20-21

420888995

$232.02

22

O-Ring

420631310

$3.61

23

Carbon Brush Set

420881340

$52.62

24

Starter Gear, 9 Teeth

420834522

$59.77

25

Retaining Ring

420845601

$3.73

26

Torx Flange Screw M6 X 25

420641238

$2.68

27

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

28

O-Ring

420431580

$12.29

29

Torx Flange Screw M6 X 16

420641048

$2.46

30

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$19.47

31

Clamp

420853414

$14.92

32

Torx Flange Screw M6 X 35

420641258

$2.78

33

Torx Flange Screw M6 X 85

420641228

$6.11

34

Input Shaft

420820462

$104.45

35

Spacer

420244034

$16.87

36

O-Ring

420250056

$0.62
