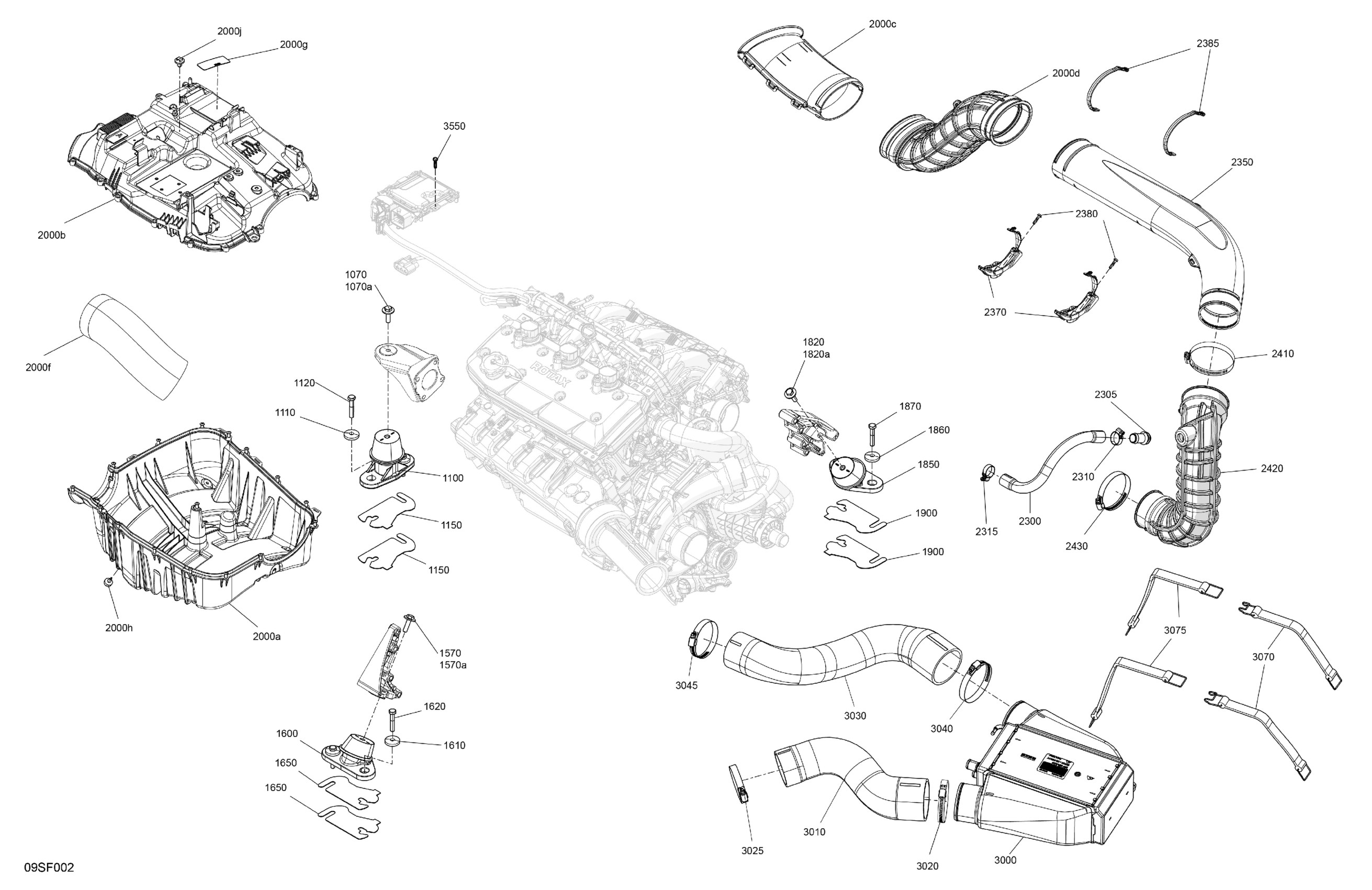

Sea-doo GTX - 230 - STD - 12TA - Blue Abyss - Audio, 2026 Engine - System Diagram

#

Description
Price

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1070a

Hexagonal Screw M8 X 30

250000888

$3.00

1100

Front Engine Support Ass'y

270001215

$77.32

1110

Cone Washer

250200018

$4.64

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

1150

Shim 1.3 mm

270000762

$9.04

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1570a

Hexagonal Screw M8 X 30

250000888

$3.00

1600

Lateral Engine Support Ass'y

270001211

$84.47

1610

Cone Washer

250200018

$4.64

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

1650

Shim 1.3 mm

270000762

$9.04

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1820a

Hexagonal Screw M8 X 30

250000888

$3.00

1850

Lateral Engine Support Ass'y

270001211

$84.47

1860

Cone Washer

250200018

$4.64

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

1900

Shim 1.3 mm

270000762

$9.04

2000a

Lower Intake Silencer

273000422

$64.15

2000b

Upper Intake Silencer

273000423

$64.15

2000c

Intake Duct Silencer Int

273000424

$44.75

2000d

Intake Duct Silencer Out

273000428

$38.32

2000f

Intake Duct Silencer In

273000425

$46.99

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Seat Stopper

708003866

$3.61

2000j

Mount Dart

293730040

$0.86

2300

Formed Hose

270000950

$8.54

2305

Breather Valve

273000234

$10.63

2310

Gear Clamp

293650284

$4.15

2315

Gear Clamp

293650284

$4.15

2350

Central Intake Duct

273000426

$46.99

2370

Duct Support

273000431

$38.32

2380

Hex. Flange PT Screw K50 X 20

241152040

$1.74

2385

Retaining Strap

273000437

$12.29

2410

Tridon Gear Clamp

293650244

$7.22

2420

Molded Compressor Hose IN

273000470

$41.01

2430

Tridon Clamp

293650179

$8.81

3000

Intercooler

276000406

$419.87

3010

Formed Hose

273000418

$64.97

3020

Tridon Gear Clamp

293650244

$7.22

3025

Tridon Clamp

293650179

$8.81

3030

Oultet Hose

273000419

$74.72

3040

Tridon Gear Clamp

293650244

$7.22

3045

Tridon Clamp

293650179

$8.81

3070

Fuel Tank Strap

293850094

$17.52

3075

Fuel Tank Strap

293850095

$14.27

3550

Flange Torx Screw K40 X 16

250000287

$1.74
