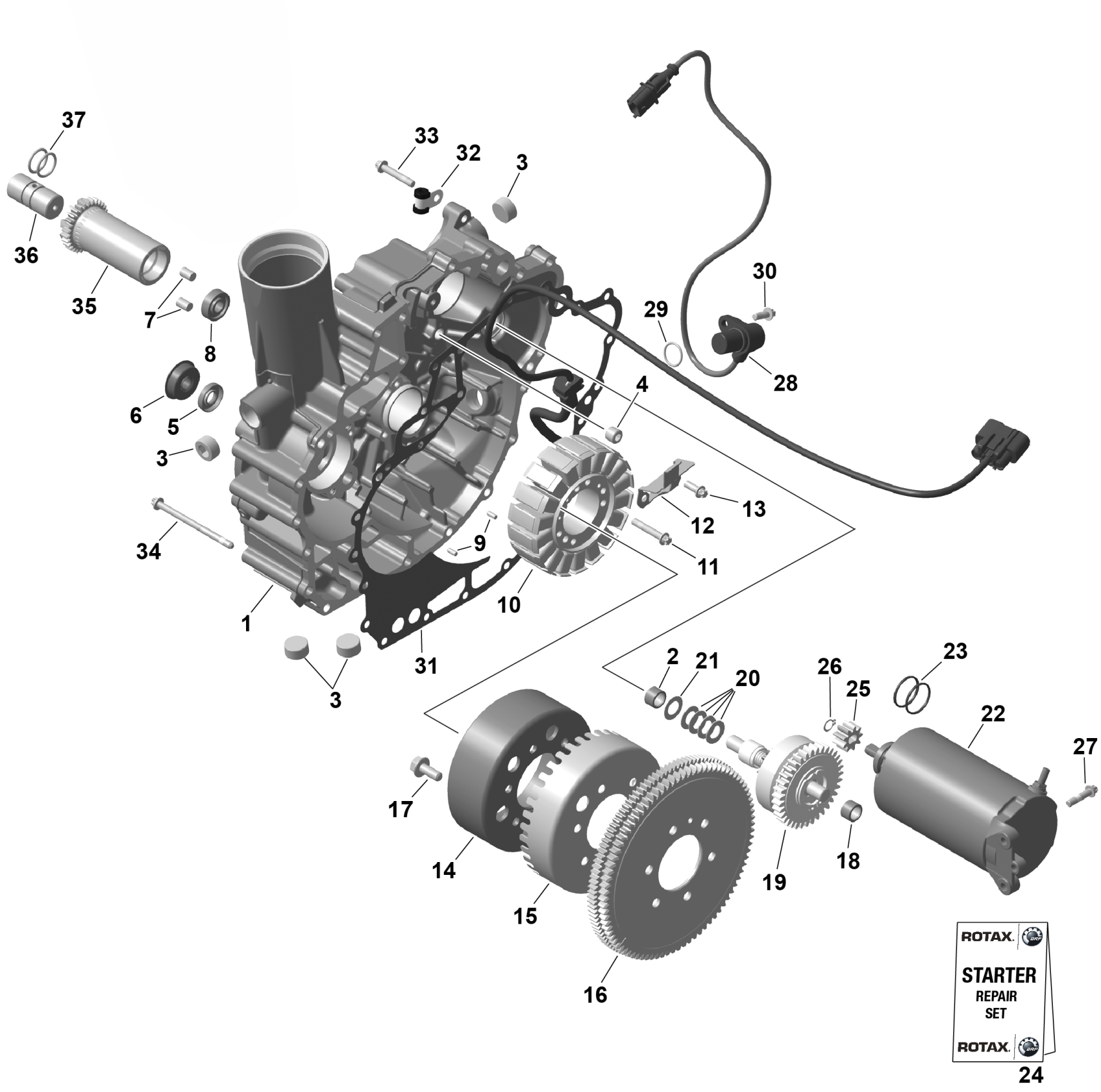

Sea-doo GTX - 230 - STD - 12SA - Blue Abyss - Audio, 2025 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes no. 1-9

420912421

$698.99

2

Needle Bushing

420232482

$20.99

3

Plug Screw M20 X 1.5

420641317

$14.22

4

Plug Screw M10 X 1

420641323

$14.28

5

Oil Seal

420650316

$11.65

6

Rotary Seal

420650371

$43.49

7

Center Pin 8 X 12

420632010

$4.01

8

Double Sealed Bearing

420232103

$15.34

9

Needle Pin

420929070

$1.90

10

Stator Plate

420889728

$319.49

11

Torx Flange Screw M6 X 35

420641258

$3.38

12

Retaining Plate

420926303

$1.39

13

Torx Flange Screw M6 X 16

420641048

$2.96

14

Magneto Flywheel

420296900

$461.99

15

Trigger Wheel

420966851

$18.49

16

Starter Double Gear 87/86T

420834871

$319.99

17

Hex Screw

295501162

$15.28

18

Needle Bushing

420232482

$20.99

19

Starter Drive

420888041

$274.99

20

Spring Disk | Includes no. 18-19

420238307

$28.49

20

Spring Washer

420238300

$7.41

21

Thrust Washer

420827280

$8.47

22

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

23

O-Ring

420631310

$4.44

24

Carbon Brush Set

420881340

$67.99

25

Starter Gear, 9 Teeth

420834522

$74.99

26

Retaining Ring

420845601

$4.55

27

Torx Flange Screw M6 X 25

420641238

$3.27

28

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

29

O-Ring

420431580

$14.83

30

Torx Flange Screw M6 X 16

420641048

$2.96

31

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$23.49

32

Clamp

420853414

$18.49

33

Torx Flange Screw M6 X 35

420641258

$3.38

34

Torx Flange Screw M6 X 85

420641228

$7.41

35

Input Shaft

420820462

$119.99

36

Spacer

420244034

$20.99

37

O-Ring

420250056

$0.77
