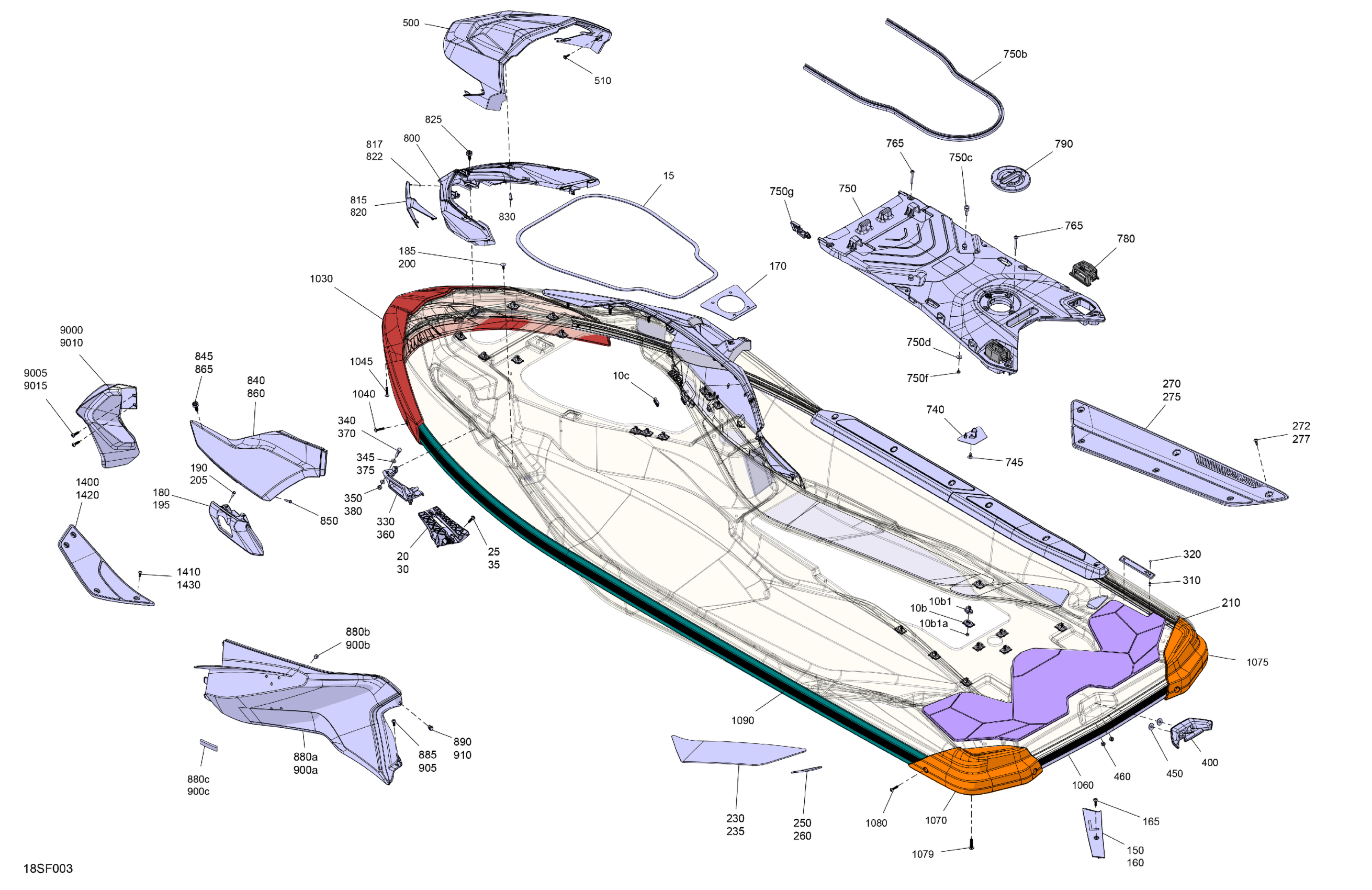

Sea-doo International - GTX - 170 - STD - 11TC - Blue Abyss, 2026 Body - System Diagram

#

Description
Price

10b

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$1.87

10b1

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.61

10b1a

Elastic Stop Nut M6, Brass

232561200

$3.51

10c

Anchorage Tie Wrap

293750109

$1.15

15

Gasket

293250401

$8.80

20

LH Support

291004714

$7.15

25

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

30

RH Support

291004715

$7.87

35

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

150

LH Shim

291005176

$14.37

160

RH Shim

291005177

$11.78

165

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

170

Gasket

293250451

$19.47

180

LH Shell Cleat

291004661

$7.15

185

Black, Dart

293730011

$0.79

190

Hex. Screw 10-14 X 7/8”

211000023

$2.91

195

RH Shell Cleat

291004719

$7.15

200

Black, Dart

293730011

$0.79

205

Hex. Screw 10-14 X 7/8”

211000023

$2.91

210

Rear Plat-Form Carpet

291005076

$85.12

230

Deep Black, LH Rear Anti Slip Footrest Mat

291006768

$13.62

235

Deep Black, RH Rear Anti Slip Footrest Mat

291006769

$13.62

250

LH Anti Slip Mat

291005883

$4.42

260

RH Anti Slip Mat

291005884

$4.42

270

Deep Black, LH Central Driver Footrest Ass'y

291006715

$43.52

272

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39

275

Deep Black, RH Central Driver Footrest Ass'y

291006720

$43.52

277

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39

310

Rivet 1/8"

293150016

$0.29

320

Black, Snap Cap

293000014

$0.85

330

LH Cleat

291004559

$6.37

340

Hex. Screw M8 X 35

207083560

$1.45

345

Stainless, Flat Washer 8 mm

234081600

$0.46

350

Hex. Elastic Nut M8 Brass

232581200

$1.29

360

RH Cleat

291004720

$6.37

370

Hex. Screw M8 X 35

207083560

$1.45

375

Stainless, Flat Washer 8 mm

234081600

$0.46

380

Hex. Elastic Nut M8 Brass

232581200

$1.29

400

Cleat

291004597

$19.47

450

Flat Washer 8 mm, Stainless

234082600

$1.98

460

Hex. Elastic Nut M8 Brass

232581200

$1.29

500

Deep Black, Hood

291005579

$76.02

510

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

740

Hose Protector

291004941

$4.35

745

Black, Dart

293730011

$0.79

750

Access Cover Ass'y | Includes 750 to 750g

291006468

$207.66

750b

Was 293200062 Seal

219704366

$61.72

750c

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

750d

Flat Washer M6, Stainless

234062600

$0.64

750f

Elastic Stop Nut M6, Brass

232561200

$3.51

750g

Seal

291004717

$9.04

765

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

780

Linq Bases Kit

295100858

$21.42

790

Access Cap Ass'y

291004481

$7.15

800

Front Hood Grille

291005915

$27.92

815

Gulfstream Blue, LH Trim

291005970

$22.07

817

Push Nut

250100206

$0.83

820

Gulfstream Blue, RH Trim

291005971

$22.07

822

Push Nut

250100206

$0.83

825

Dard

293730071

$0.90

830

Hex. Screw 10-14 X 7/8”

211000023

$2.91

840

Iceland Grey, LH Front Body Panel

291004676

$64.32

845

Dard

293730071

$0.90

850

Hex. Screw 10-14 X 7/8”

211000023

$2.91

860

Iceland Grey, RH Front Body Panel

291004775

$64.32

865

Dard

293730071

$0.90

880a

Iceland Grey, LH Central Body Panel

291004556

$129.32

880b

Rubber Bumper

293830005

$5.33

880c

Stopper

278003618

$0.72

885

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.12

890

Tuflok Plastic Rivet

293150230

$1.21

900a

Iceland Grey, RH Central Body Panel

291004558

$129.32

900b

Rubber Bumper

293830005

$5.33

900c

Stopper

278003618

$0.72

905

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.12

910

Tuflok Plastic Rivet

293150230

$1.21

1030

Front Bumper

291004452

$62.37

1040

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1045

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1060

Bumper 2775±25mm

291004468

$113.07

1070

LH Rear Bumper

291004465

$24.02

1075

RH Rear Bumper

291004466

$24.02

1079

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1080

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1090

Lateral Bumper

291006726

$138.43

1400

Deep Black, LH Upper Driver Footrest Ass'y

291006707

$50.67

1410

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39

1420

Deep Black, RH Upper Driver Footrest Ass'y

291006711

$50.67

1430

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39

9000

LH Side Grille

291004455

$7.29

9005

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

9010

RH Side Grille

291004456

$7.29

9015

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61
