Description

Price

10

Outer Skin

269502394

$158.57

11

Hexagonal Cap Screw M6 X35

250000399

$3.61

15

Inner Skin

269502555

$131.92

30

LH Latch

269502267

$24.02

31

Pin

269502536

$15.22

32

Latch Spring

269502268

$20.77

33

Rubber Bumper

293830005

$5.33

35

RH Latch

269502299

$24.02

36

Pin

269502536

$15.22

37

Latch Spring

269502268

$20.77

38

Rubber Bumper

293830005

$5.33

150

Shock Absorber Assembly | Includes 150 to 150b

269502426

$78.62

150b

Shock Absorber End Fitting

269501984

$8.88

200

RH Mirror Glass

269502276

$72.12

210

Deep Black, RH Mirror Cover

269502428

$43.52

220

LH Mirror Glass

269502274

$72.12

230

Deep Black, LH Mirror Cover

269502427

$43.52

300

Rubber Bumper

293830005

$5.33

310

Rubber Bumper

293830005

$5.33

400

LH Latch Base

269502385

$13.62

405

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

420

RH Latch Base

269502386

$13.62

425

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

500

Iceland Grey, Top Cover

269502406

$93.57

515

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

700

Shock Base

269502282

$20.12

710

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1000

Bin Compartment

264000144

$95.52

1001

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1002

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1020

Gasket

293250478

$10.34

1050

Adjustment Hook

269502325

$7.15

1130

Strap

269502493

$11.53

1500

COVER_BOX

264000170

$51.32

1510

Glove Box Latch

264000133

$15.57

1517

Screw K40 X 10

250001119

$1.64

1520

Cover Gasket

293250717

$23.37

1550a

Box Trim

269502690

$14.92

1550b

Tuflok Plastic Rivet

293150230

$1.21

1600

Box Cover

264000158

$10.21

1610

Clip

269501718

$12.97

1620

Gasket

293250591

$15.22

1640

USB Plug

269502324

$2.39

1650

Sealed Compartment Foam

264000135

$9.22

1675

Vent Membrane

264000137

$9.04

1100a

Hexagonal Cap Screw M6 X35

250000399

$3.61

1100b

Hex. Screw 10-14 X 7/8”

211000023

$2.91

1100d

Hex. Screw 10-14 X 7/8”

211000023

$2.91

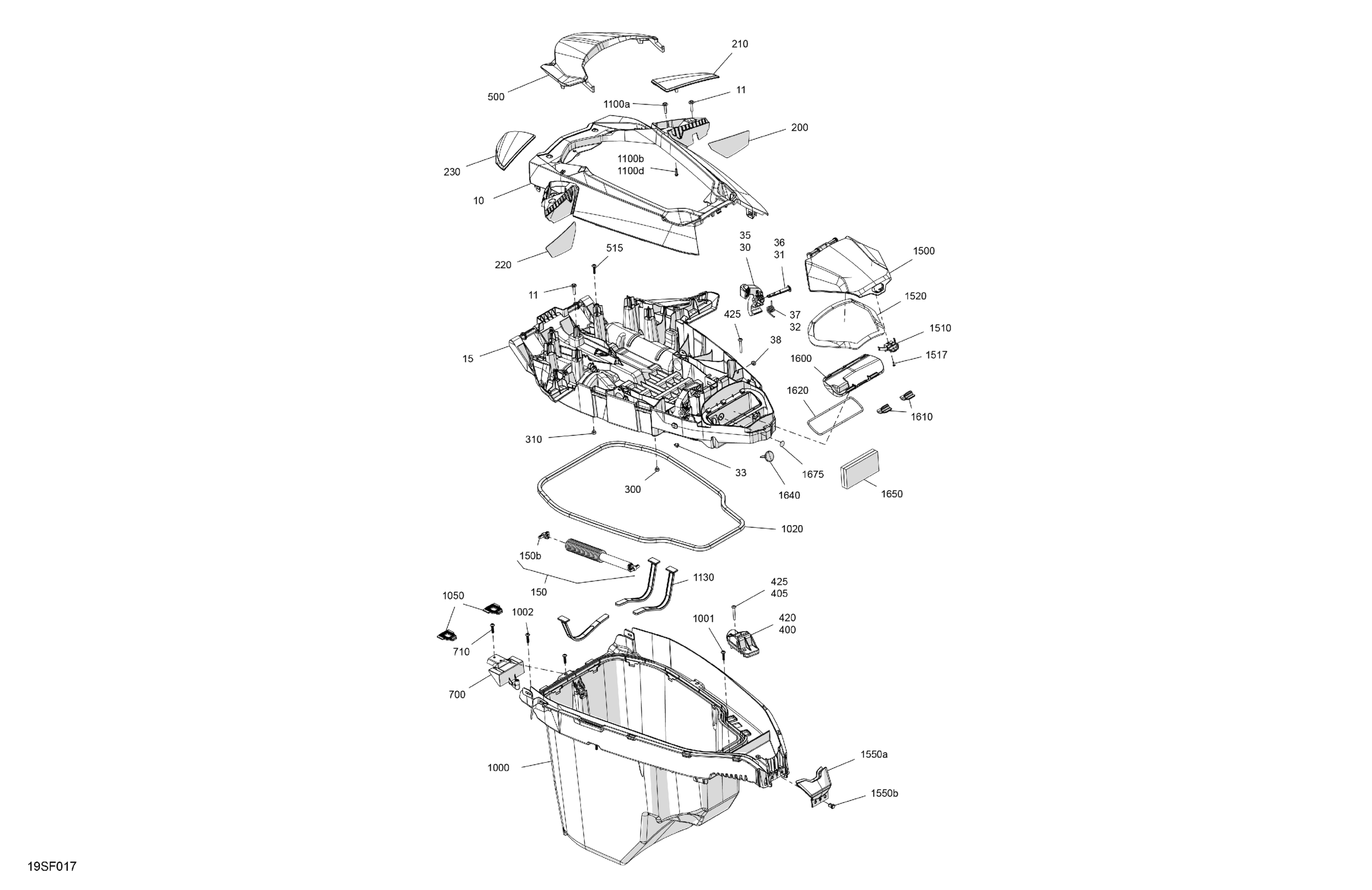

Sea-doo International - GTX - 170 - STD - 11TC - Blue Abyss, 2026 Body - Front Cover Diagram

Outer Skin

Hexagonal Cap Screw M6 X35

Inner Skin

LH Latch

Pin

Latch Spring

Rubber Bumper

RH Latch

Pin

Latch Spring

Rubber Bumper

Shock Absorber Assembly | Includes 150 to 150b

Shock Absorber End Fitting

RH Mirror Glass

Deep Black, RH Mirror Cover

LH Mirror Glass

Deep Black, LH Mirror Cover

Rubber Bumper

Rubber Bumper

LH Latch Base

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

RH Latch Base

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

Iceland Grey, Top Cover

Plastite Screw Torx Cone HD.M6.81X3

Shock Base

Plastite Torx Screw M6.81X30 | Not Shown

Bin Compartment

Plastite Screw Torx Cone HD.M6.81X3

Plastite Torx Screw M6.81X30 | Not Shown

Gasket

Adjustment Hook

Strap

COVER_BOX

Glove Box Latch

Screw K40 X 10

Cover Gasket

Box Trim

Tuflok Plastic Rivet

Box Cover

Clip

Gasket

USB Plug

Sealed Compartment Foam

Vent Membrane

Hexagonal Cap Screw M6 X35

Hex. Screw 10-14 X 7/8”

Hex. Screw 10-14 X 7/8”
