Description

Price

10

Hose

276000516

$70.49

20

Norma Clamp

293650245

$14.99

25

Norma Clamp

293650245

$14.99

200

Formed Hose

276000517

$56.99

210

Norma Clamp

293650245

$14.99

215

Norma Clamp

293650245

$14.99

500

Coolant Tank Hose

276000537

$37.99

510

Tridon Gear Clamp

293650019

$5.82

515

Spring Clamp

293650115

$3.09

520

Hose Support

270001126

$8.43

530

Hex. Flange PT Screw K50 X 20

241152040

$2.11

700

Coolant Tank

276000419

$119.99

720

Pressure Cap | Includes 720 to 720a

276000100

$25.99

800

Hose 6,4 MM ID

276000425

$7.41

810

Gear Clamp

293650287

$2.11

815

Gear Clamp

293650287

$2.11

830

Was 409901800 Tubing (13 mm)

219704400

$14.49

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

1000

Hose 19Mm X 4000 mm Long

219704613

$50.99

1010

Gear Clamp

293650284

$4.44

1015

Gear Clamp

293650284

$4.44

1020

Tubing 25 MM 1000MM Long

219704402

$15.99

1025

Gear Clamp

293650284

$4.44

1035

Gear Clamp

293650284

$4.44

1040

Fitting

276000547

$5.19

1045

Tubing 25 MM 1000MM Long

219704402

$15.99

1050

Hose 19Mm X 4000 mm Long

219704613

$50.99

1200

Was 276000001 Hose 12.5 mm

219704394

$51.99

1210

Clamp Gear

293650285

$3.27

1215

Clamp Gear

293650285

$3.27

1220

Was 515175319 Tubing 22 mm

219704423

$14.99

1235

Clamp Gear

293650285

$3.27

1240

Fitting

276000565

$5.19

1245

Clamp Gear

293650285

$3.27

1250

Was 276000001 Hose 12.5 mm

219704394

$51.99

2340

Grommet

293720029

$1.59

2345

Straight Fitting

293710133

$14.75

2405

Gear Clamp

293650287

$2.11

2410

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

2415

Gear Clamp

293650287

$2.11

2420

Y-Fitting

293710059

$9.69

2425

Gear Clamp

293650287

$2.11

2430

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

2435

Gear Clamp

293650287

$2.11

2440

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

2445

Gear Clamp

293650287

$2.11

2455

Gear Clamp

293650287

$2.11

2460

Elbow Male Connector

414580600

$4.23

2465

Grommet

293720029

$1.59

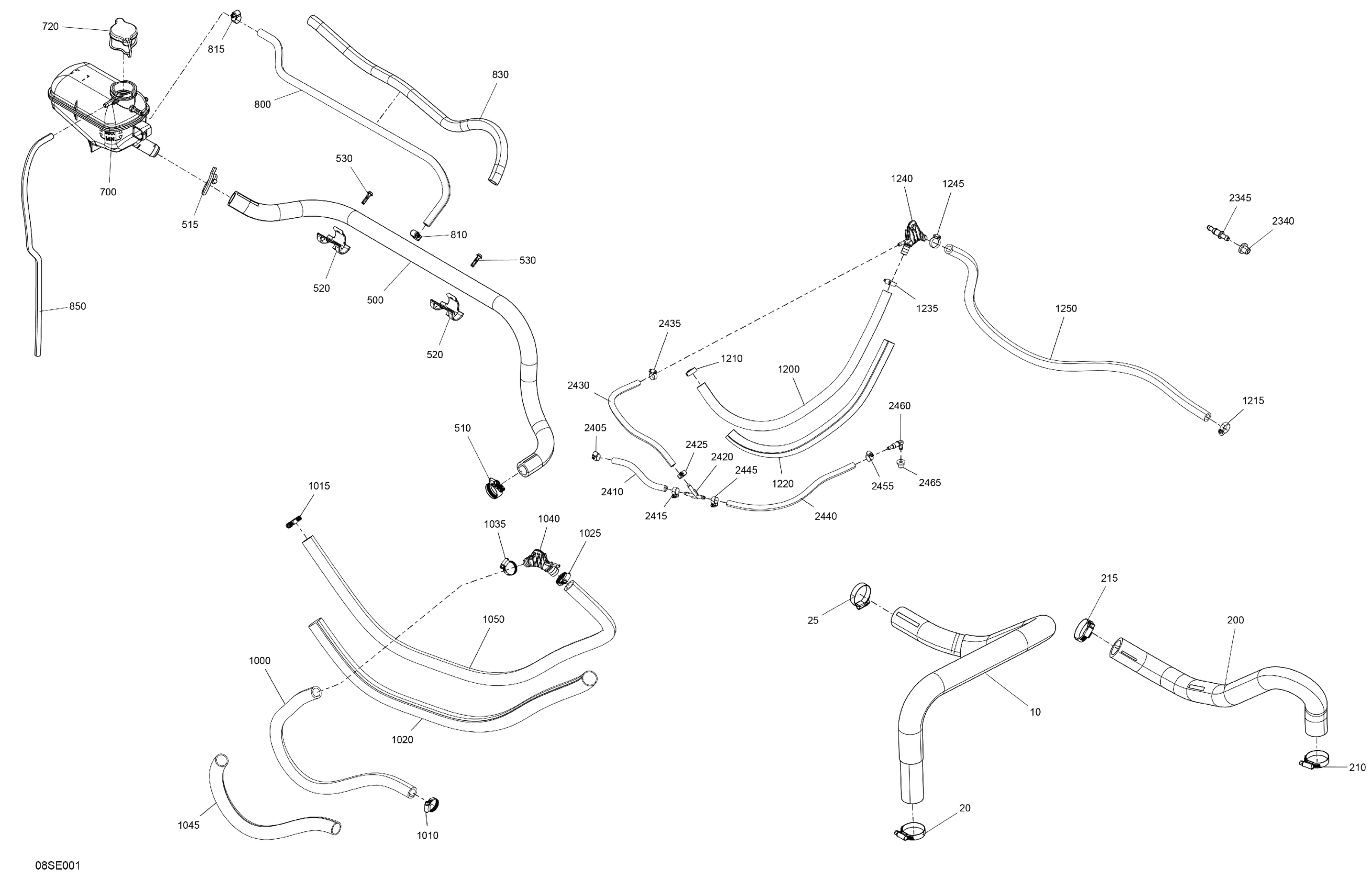

Sea-doo GTX - 130 - (Rental) - 25SF - Bright White, 2025 Engine - Cooling Diagram

Hose

Norma Clamp

Norma Clamp

Formed Hose

Norma Clamp

Norma Clamp

Coolant Tank Hose

Tridon Gear Clamp

Spring Clamp

Hose Support

Hex. Flange PT Screw K50 X 20

Coolant Tank

Pressure Cap | Includes 720 to 720a

Hose 6,4 MM ID

Gear Clamp

Gear Clamp

Was 409901800 Tubing (13 mm)

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Hose 19Mm X 4000 mm Long

Gear Clamp

Gear Clamp

Tubing 25 MM 1000MM Long

Gear Clamp

Gear Clamp

Fitting

Tubing 25 MM 1000MM Long

Hose 19Mm X 4000 mm Long

Was 276000001 Hose 12.5 mm

Clamp Gear

Clamp Gear

Was 515175319 Tubing 22 mm

Clamp Gear

Fitting

Clamp Gear

Was 276000001 Hose 12.5 mm

Grommet

Straight Fitting

Gear Clamp

Hose 6,35 Mm Id 4000Mm Long

Gear Clamp

Y-Fitting

Gear Clamp

Hose 6,35 Mm Id 4000Mm Long

Gear Clamp

Hose 6,35 Mm Id 4000Mm Long

Gear Clamp

Gear Clamp

Elbow Male Connector

Grommet
