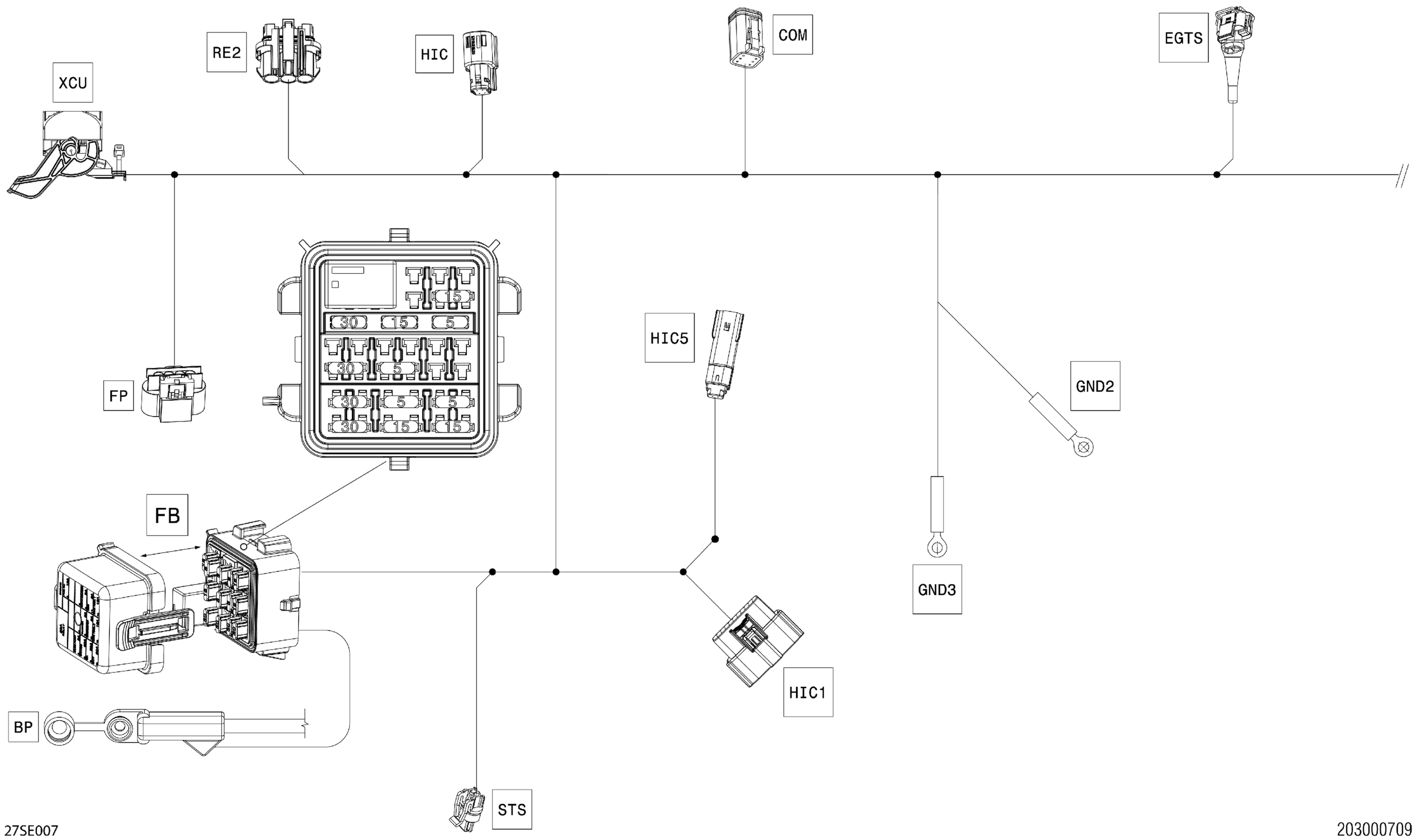

Sea-doo GTX - 130 - (Rental) - 25SF - Bright White, 2025 Electric - Main Harness - 278004459 Diagram

#

Description
Price

1000

Main Wiring Harness

278004459

$292.51

BP

Battery Cable

278003715

$66.39

COM

Female Housing 6 Circuits

710002706

$18.63

COM

Lock

710002705

$4.15

COM

Female Terminal

710005438

$3.88

COM

Female Terminal

710005439

$4.15

EGTS

Housing

710001136

$12.01

EGTS

Seal

415128501

$1.73

EGTS

Female Terminal

710001137

$4.28

FB

Fuse Cover

278003879

$4.22

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Fuse Base Ass'y

278003448

$30.57

FB

Seal Plug

278002880

$6.24

FB

Relay 30 Amp

278003828

$11.22

FB

Wire Seal

278000218

$4.00

FB

Wire Seal

710000048

$5.85

FB

Wire Seal

278001065

$5.85

FB

Female Terminal

710000918

$5.85

FB

Female Terminal

515177177

$4.96

FP

Male Housing, 4 Circuits

278002185

$6.73

FP

Lock

710001222

$1.93

FP

Wire Seal

278002186

$5.18

FP

Female Terminal

278002187

$5.79

GND2

Open Barrel Terminal

278001392

$4.00

GND3

Open Barrel Terminal

278001392

$4.00

HIC

Female Housing, 4 circuits

278003535

$24.60

HIC

Female Terminal

515178018

$0.90

HIC1

Female Housing 20 Circuits

278002858

$22.98

HIC1

Sealing Cap

278002860

$1.63

HIC1

Female Terminal

515178018

$0.90

HIC1

Female Terminal

515178014

$2.21

HIC5

2 Circuits Male Housing

515178020

$23.10

HIC5

Male Terminal

515178013

$2.93

RE2

Female Housing, 3 Circuits

710000879

$24.60

RE2

Seal

710000881

$16.39

RE2

Seal

278003685

$13.40

RE2

Female Terminal

710000877

$7.25

STS

Female Housing, 2 Circuits

515177192

$7.25

STS

Lock

710001152

$4.00

STS

Seal Wire

710001153

$2.06

STS

Terminal

710000925

$2.93

XCU A

Cover

515178601

$16.39

XCU A

Housing 56 Circuits

515178595

$27.58

XCU A

Plate

515178604

$4.16

XCU A

Plug

515178599

$2.99

XCU A

Plug

515178600

$2.99

XCU A

Plate

515178603

$4.16

XCU A

Terminal

515178596

$3.79

XCU A

Terminal

515178598

$3.69

XCU A

Terminal

515178597

$14.52
