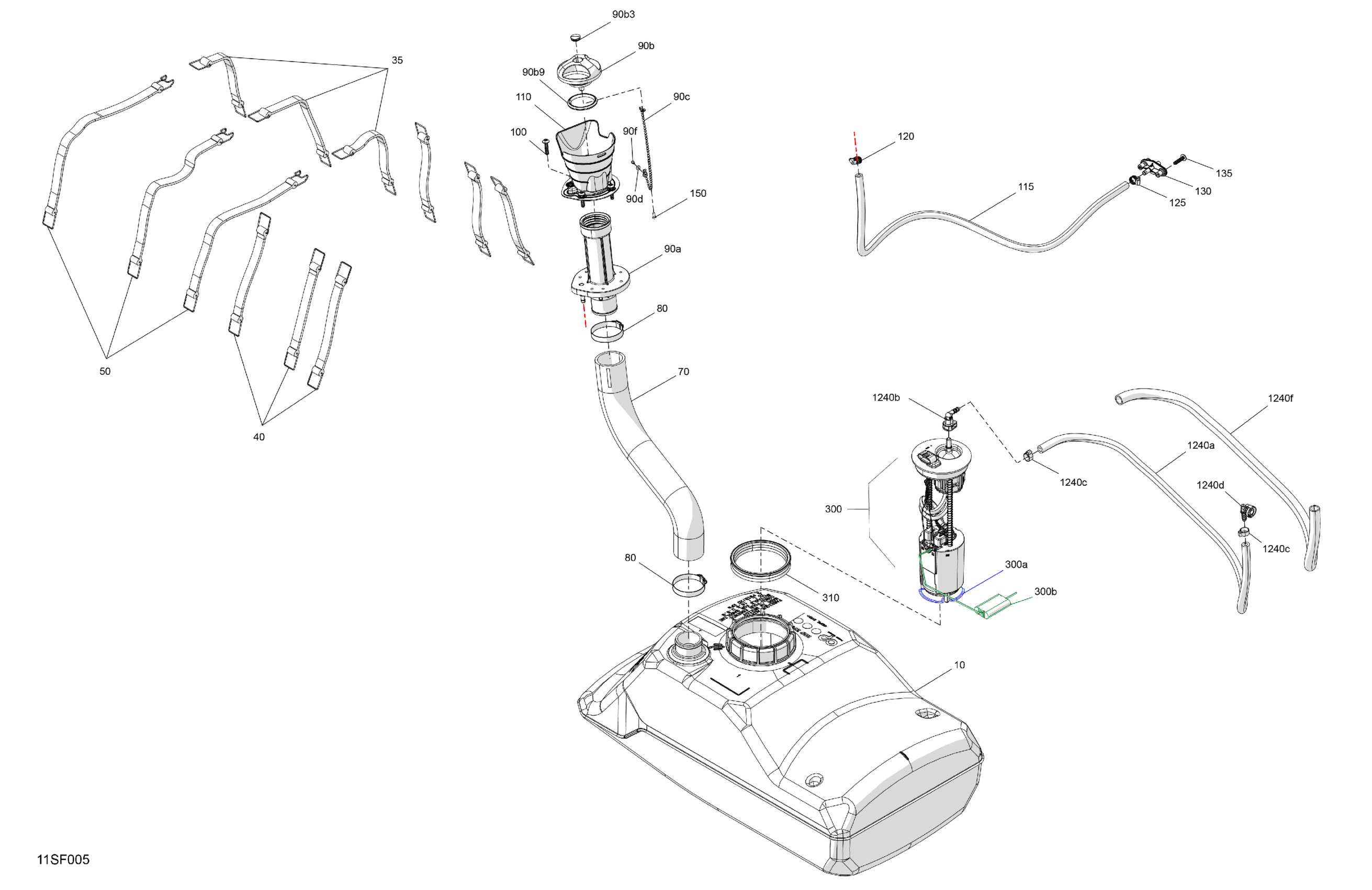

Sea-doo GTR - 300 - X - 24TB - Eclipse Black - Audio, 2026 Engine - Fuel Diagram

Description

Price

Fuel Tank_

275501223

$320.87

Fuel Tank Strap

293850087

$16.39

Fuel Tank Strap

293850087

$16.39

Holding Strap

293850134

$16.87

Fuel Tank Hose

275501229

$39.49

Norma Clamp

293650081

$9.87

90a

Filler Neck

275501005

$31.82

90b

Fuel Cap Ass'y | Includes 90b to 90b9

275501094

$48.07

90b3

Black, Snap Cap

293000034

$7.48

90b9

Gasket

293250417

$3.17

90c

Fuel Cap Chain

275500972

$15.64

90d

Flat Washer M3, Stainless

234032600

$0.52

90f

Pop Rivet 1/8"

390407900

$1.17

100

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

110

Gas, Deflector

293250480

$8.39

115

Hose I.D. 7.9Mm 3000Mm Long

219704359

$305.94

120

Clamp Gear

293650285

$2.68

125

Clamp Gear

293650285

$2.68

130

Fitting Sub Ass'y

275501022

$5.54

135

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

150

Screw K40 X 10

241140060

$1.25

300

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$371.77

300a

Fuel Filter

270600113

$27.27

300b

Sensor Lever

275500780

$176.12

310

Pump Gasket

293250514

$15.57

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$305.94

1240b

Quick Disconnect

275500921

$12.61

1240c

Crimp Clamp

293650053

$2.42

1240d

Elbow Fitting 90°

293710105

$10.58

1240f

Tubing 16 Mm 1000Mm Long

219704408

$6.23
