Description

Price

10

Hose

276000516

$70.49

20

Norma Clamp

293650245

$14.99

25

Norma Clamp

293650245

$14.99

200

Formed Hose

276000517

$56.99

210

Norma Clamp

293650245

$14.99

215

Norma Clamp

293650245

$14.99

500

Coolant Tank Hose

276000537

$37.99

510

Tridon Gear Clamp

293650019

$5.82

515

Spring Clamp

293650115

$3.09

530

Hex. Screw 10-14 X 7/8”

211000023

$3.59

700

Coolant Tank

276000419

$119.99

720

Pressure Cap | Includes 720 to 720a

276000100

$25.99

720a

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

800

Hose 6,4 MM ID

276000425

$7.41

810

Gear Clamp

293650287

$2.11

815

Gear Clamp

293650287

$2.11

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

1000

Hose 19Mm X 4000 mm Long

219704613

$50.99

1010

Gear Clamp

293650284

$4.44

1015

Gear Clamp

293650284

$4.44

1020

Tubing 25 MM 1000MM Long

219704402

$15.99

1050

Hose 19Mm X 4000 mm Long

219704613

$50.99

1060

Gear Clamp

293650284

$4.44

1065

Gear Clamp

293650284

$4.44

1090

T-Fitting

293710131

$15.87

1200

Was 276000001 Hose 12.5 mm

219704394

$51.99

1210

Clamp Gear

293650285

$3.27

1215

Clamp Gear

293650285

$3.27

1220

Was 515175319 Tubing 22 mm

219704423

$14.99

1250

Was 276000001 Hose 12.5 mm

219704394

$51.99

1260

Clamp Gear

293650285

$3.27

1265

Clamp Gear

293650285

$3.27

1270

Was 515175319 Tubing 22 mm

219704423

$14.99

1290

T-Fitting

293710132

$12.65

2250

Formed Hose

276000422

$22.49

2255

Tubing 25 MM 1000MM Long

219704402

$15.99

2260

Gear Clamp

293650284

$4.44

2265

Gear Clamp

293650284

$4.44

2270

Hose 19Mm X 4000 mm Long

219704613

$50.99

2280

Gear Clamp

293650284

$4.44

2285

Gear Clamp

293650284

$4.44

2340

Grommet

293720029

$1.59

2345

Male Connector

414518500

$4.23

2350

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

2355

Gear Clamp

293650287

$2.11

2360

Oetiker Gear Clamp

293650025

$3.09

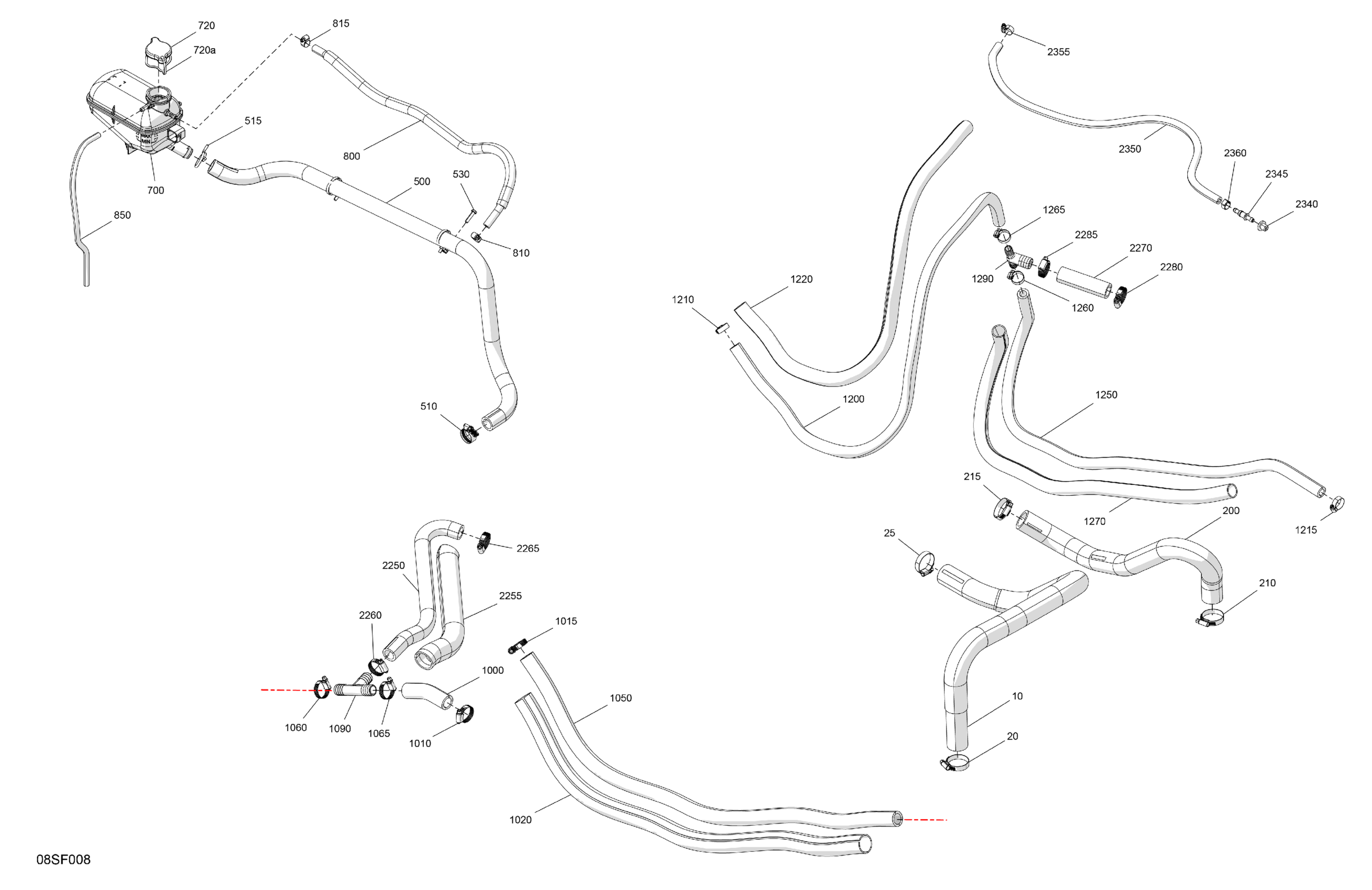

Sea-doo GTR - 300 - X - 24TB - Eclipse Black - Audio, 2026 Engine - Cooling Diagram

Hose

Norma Clamp

Norma Clamp

Formed Hose

Norma Clamp

Norma Clamp

Coolant Tank Hose

Tridon Gear Clamp

Spring Clamp

Hex. Screw 10-14 X 7/8”

Coolant Tank

Pressure Cap | Includes 720 to 720a

Latch - Call your local BRP dealership | Not Shown

Hose 6,4 MM ID

Gear Clamp

Gear Clamp

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Hose 19Mm X 4000 mm Long

Gear Clamp

Gear Clamp

Tubing 25 MM 1000MM Long

Hose 19Mm X 4000 mm Long

Gear Clamp

Gear Clamp

T-Fitting

Was 276000001 Hose 12.5 mm

Clamp Gear

Clamp Gear

Was 515175319 Tubing 22 mm

Was 276000001 Hose 12.5 mm

Clamp Gear

Clamp Gear

Was 515175319 Tubing 22 mm

T-Fitting

Formed Hose

Tubing 25 MM 1000MM Long

Gear Clamp

Gear Clamp

Hose 19Mm X 4000 mm Long

Gear Clamp

Gear Clamp

Grommet

Male Connector

Hose 6,35 Mm Id 4000Mm Long

Gear Clamp

Oetiker Gear Clamp
