01- ROTAX - Magneto and Electric Starter

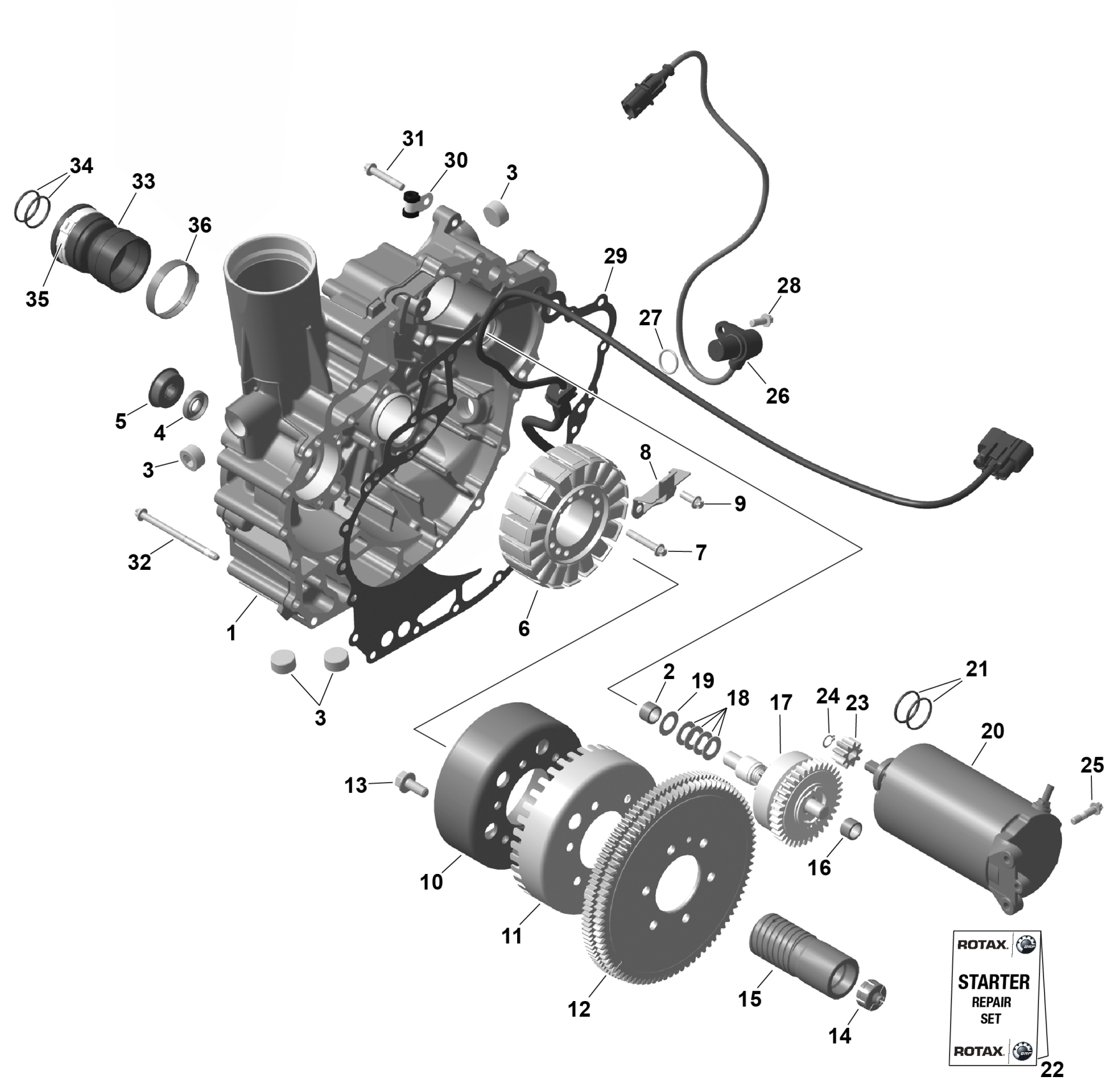

Sea-doo International - GTR - 300 - X - 24TA - Eclipse Black - Audio, 2026 01- ROTAX - Magneto and Electric Starter Diagram
#
Description
Price
1
Timing Drive Cover | Includes no. 1-5
420912261
$762.99
2
Needle Bushing
420232482
$20.99
3
Plug Screw M20 X 1.5
420641317
$14.22
4
Oil Seal
420650316
$11.65
5
Rotary Seal
420650371
$43.49
6
Stator Plate
420889728
$319.49
7
Torx Flange Screw M6 X 35
420641258
$3.38
8
Retaining Plate
420926303
$1.39
9
Torx Flange Screw M6 X 16
420641048
$2.96
10
Magneto Flywheel
420296900
$461.99
11
Trigger Wheel
420966851
$18.49
12
Starter Double Gear 117/86 T
420834915
$299.99
13
Hex Screw
295501162
$15.28
14
Stop Sleeve
420660280
$14.75
15
Output Sleeve
420947773
$121.99
16
Needle Bushing
420232482
$20.99
17
Starter Drive
420888041
$274.99
18
Spring Disk | Includes no. 18-19
420238307
$28.49
19
Thrust Washer
420827280
$8.47
20
Electric Starter Ass'y | Includes no. 20-21
420888995
$265.99
21
O-Ring
420631310
$4.44
22
Carbon Brush Set
420881340
$67.99
23
Starter Gear, 9 Teeth
420834522
$74.99
24
Retaining Ring
420845601
$4.55
25
Torx Flange Screw M6 X 25
420641238
$3.27
26
Crankshaft Position Sensor Ass'y | Includes 10 to 11
420966570
$109.99
27
O-Ring
420431580
$14.83
28
Torx Flange Screw M6 X 16
420641048
$2.96
29
Timing Drive Cover Gasket (1603 NA) | Included in gasket kit
420931130
$23.49
30
Clamp
420853414
$18.49
31
Torx Flange Screw M6 X 35
420641258
$3.38
32
Torx Flange Screw M6 X 85
420641228
$7.41
33
Ball Bearing With Bellows Ass'y | Includes no. 33-35
420832643
$142.99
34
O-Ring
420631612
$4.33
35
Gear Clamp 46.8-50.0MM
420853023
$7.41
36
Gear Clamp
420851653
$7.41
