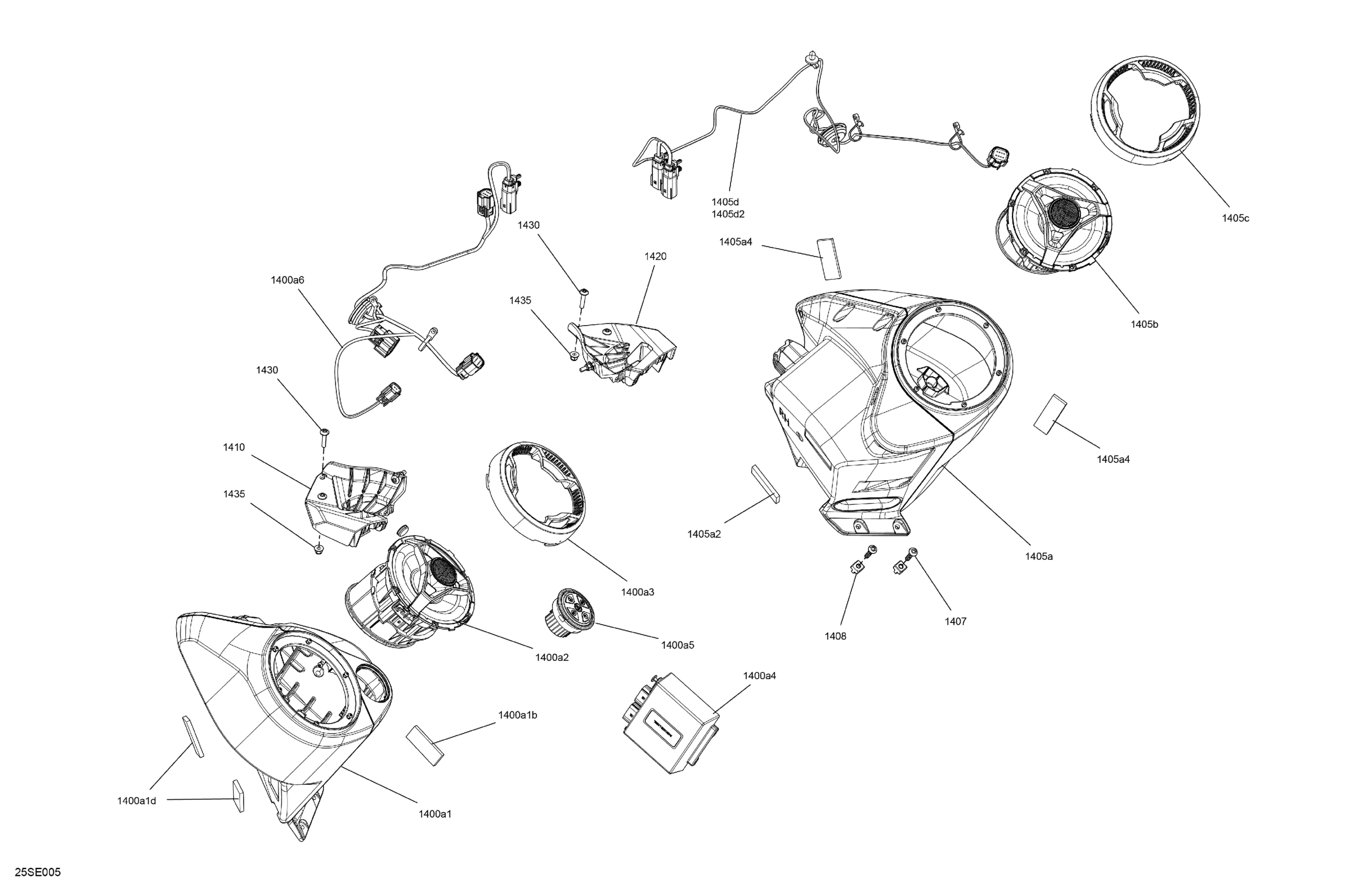

Sea-doo GTR - 300 - X - 24SA - Eclipse Black - Audio, 2025 Electric - Audio System Diagram

Description

Price

1400a1

LH Speaker Enclosure | Includes 1400a1 to 1400a1d

278003876

$300.72

1400a1b

Stopper

278003860

$0.70

1400a1d

Stopper

278003860

$0.70

1400a2

Speaker

278003463

$142.51

1400a3

Speaker Grille

278003466

$14.90

1400a4

Amplifier

278003464

$426.09

1400a5

Audio Control

278003738

$308.93

1400a6

Amplifier Harness

278003955

$76.84

1405a

RH Speaker Enclosure | Includes 1405a to 1405a4

278003877

$300.72

1405a2

Stopper

278003860

$0.70

1405a4

Stopper

278003860

$0.70

1405b

Speaker

278003463

$142.51

1405c

Speaker Grille

278003466

$14.90

1405d

RH Harness Speaker | Includes 1405d to 1405d2

278003759

$18.63

1405d2

Housing 6 Circuits

278003866

$12.70

1407

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

1408

Insert

291003793

$2.81

1410

LH Bracket

278003766

$10.82

1420

RH Bracket

278003768

$10.82

1430

Truss Cone Torx Screw M6 X 30

250000924

$7.06

1435

Nut Flange Elastic M6

233261200

$0.94
