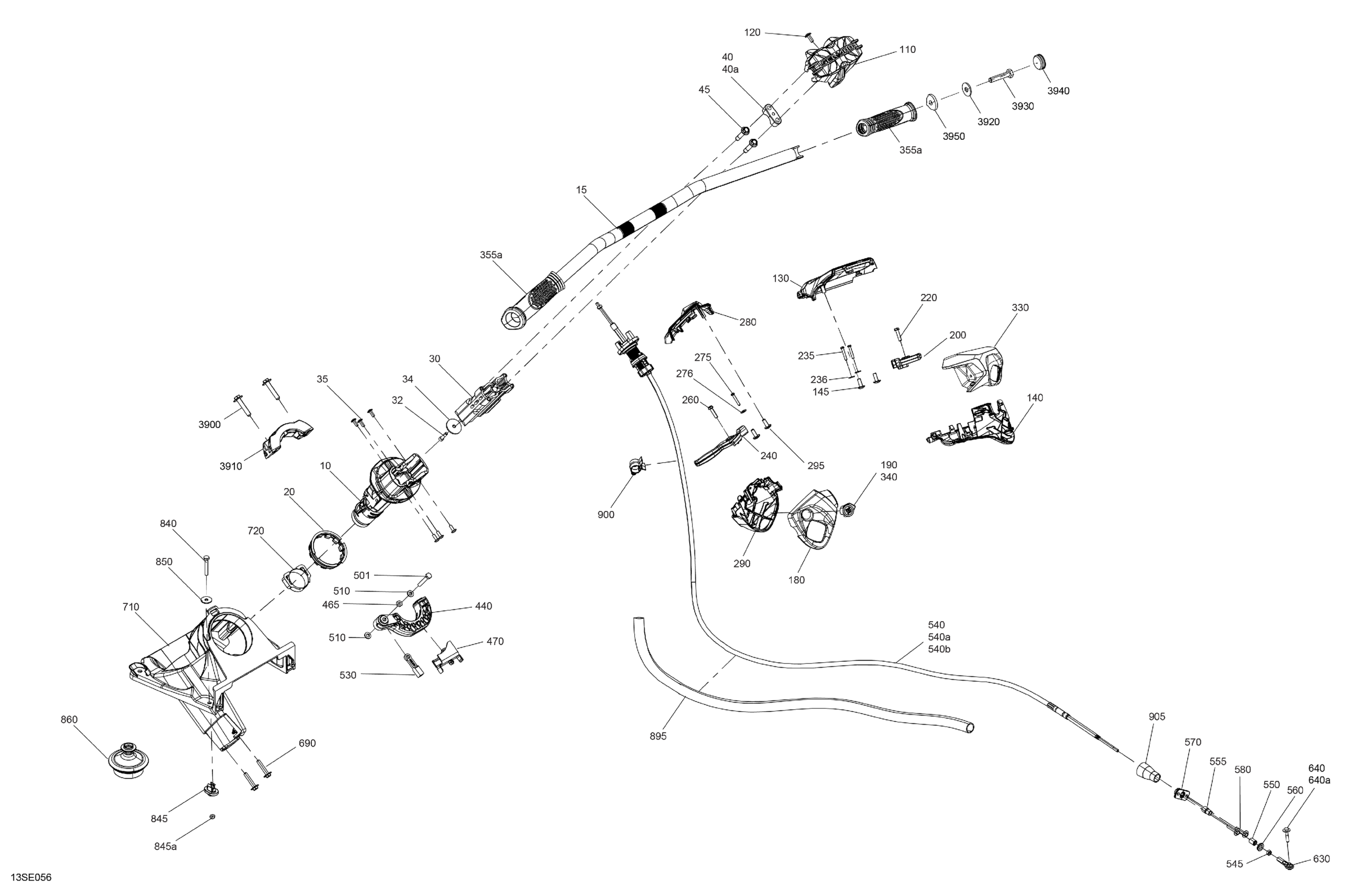

Sea-doo GTR - 300 - X - 24SA - Eclipse Black - Audio, 2025 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002111

$191.76

15

Deep Black, Handlebar

277002180

$96.24

20

Wear Ring

277001874

$11.18

30

Handlebar Riser Bock

277002141

$63.40

32

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.31

34

Flat Washer M8.4 x 40

250200188

$5.72

35

Torx Truss Screw M6 X 16

250000922

$1.79

40

Steering Support | Includes 40 to 40a

506152751

$11.58

40a

Steering Support | Includes 40 to 40a

506152751

$11.58

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.73

110

Deep Black, Steering Pad

277002005

$25.34

120

Torx Truss Screw M6 X 16

250000922

$1.79

130

RH Upper Housing

277002040

$98.48

140

RH Lower Housing

277002036

$91.76

145

Torx Truss Screw M6 X 16

250000922

$1.79

180

LH Cover

277002314

$15.64

190

Red Button Switch

277002327

$8.57

200

Hand Lever Accelerator

277002138

$35.04

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

235

Hex. Flange Screw K40 X 25

241142560

$2.49

236

Flat Washer 4 mm, Stainless

234042600

$1.06

240

Reverse Handle

277001945

$39.52

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

275

Hex. Flange Screw K40 X 25

241142560

$2.49

276

Flat Washer 4 mm, Stainless

234042600

$1.06

280

LH Upper Housing

277002041

$98.48

290

LH Lower Housing

277002035

$91.76

295

Torx Truss Screw M6 X 16

250000922

$1.79

330

RH Cover

277002316

$15.64

340

Button Switch

277002320

$8.34

355a

Handlebar Grip

277002286

$17.13

440

Steering Arm

277002319

$8.25

465

Nut Flange Elastic M6

233261200

$0.94

470

Spacer

277001654

$13.09

501

Hex. Screw M6 X 40

207064060

$1.61

510

Stainless Flat Washer M6

234061600

$0.28

530

Ball Joint

277001180

$32.06

540

Steering Cable | Includes 540 to 540b

277002450

$110.42

540a

Hex. Nut 1/4"-28

211100056

$0.64

540b

Wiper Rod

277001582

$10.13

545

Hex. Nut 1/4"-28

211100056

$0.64

550

Wiper Rod

277001582

$10.13

555

End Piece

277001583

$12.79

560

Rubber Washer

293830063

$1.73

570

Ring Halves

277001856

$11.31

580

Hexagonal Cap Screw M6 X35

250000399

$4.15

630

Ball Joint

277000775

$46.24

640

Hex Sems Screw M6X35

250000970

$2.00

640a

Hex Screw SEMS M6X35, SS

250000969

$2.00

690

Hexagonal Cap Screw M6 X35

250000399

$4.15

710

Steering Column Support

277002168

$46.24

720

Wear Ring

277002318

$14.27

840

Hex. Screw M6 X 40

207164060

$3.15

845

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.85

845a

Elastic Stop Nut M6, Brass

232561200

$4.03

850

Flat Washer M6.6 X 22

250200022

$2.15

860

Cable Boot

293720116

$4.49

895

Corrugated Sheath 22MM - 1250MM

276000520

$24.60

900

Cable Retainer

275500527

$2.68

905

Rope Guide

277002150

$0.87

3900

Hexagonal Cap Screw M6 X35

250000399

$4.15

3910

C Clamp

277002085

$8.25

3920

Flat Washer M6, Stainless

234062600

$0.73

3930

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.87

3940

Black, Cap

277000203

$8.58

3950

Insert Grip Handle

277001863

$8.83
