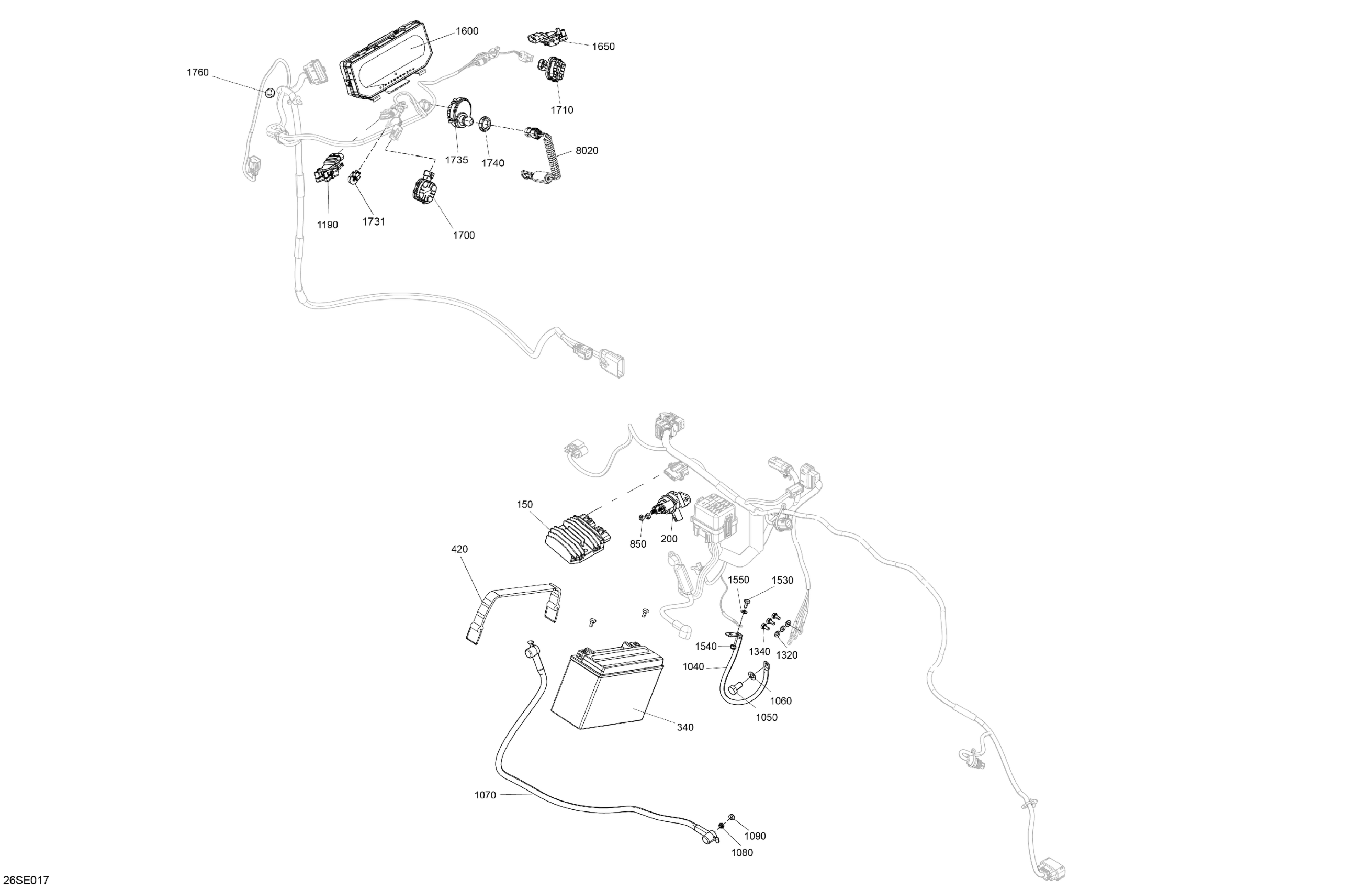

Sea-doo GTR - 300 - X - 24SE - Eclipse Black, 2025 Electric - System Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

200

Starter Relay

278003012

$35.07

340

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

420

Fuel Tank Strap

293850095

$14.27

850

Elastic Stop Nut M6, Brass

232561200

$3.51

1040

Ground Battery Cable

278003451

$31.17

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1060

Stainless Flat Washer M6

234061600

$0.25

1070

Starter Cable

278003369

$31.17

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$115.35

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1540

Elastic Stop Nut M6, Brass

232561200

$3.51

1550

Stainless Flat Washer M6

234061600

$0.25

1600

Full Size Multifunction Mono Gauge

278003432

$766.12

1650

Throttle Position Sensor

278002283

$94.22

1700

LH Switch Keypad

278003726

$101.37

1710

RH Switch Keypad

278003474

$101.37

1731

Start/Stop Switch This part replaces 296000440.

296000440

$42.87

1735

Terminal DESS One Wire

515179305

$60.42

1740

Specialized Nut

278004274

$2.72

1760

Mount Dart

710008294

$1.02

8020

Cut Off Switch Tether Cord

278004669

$58.47
