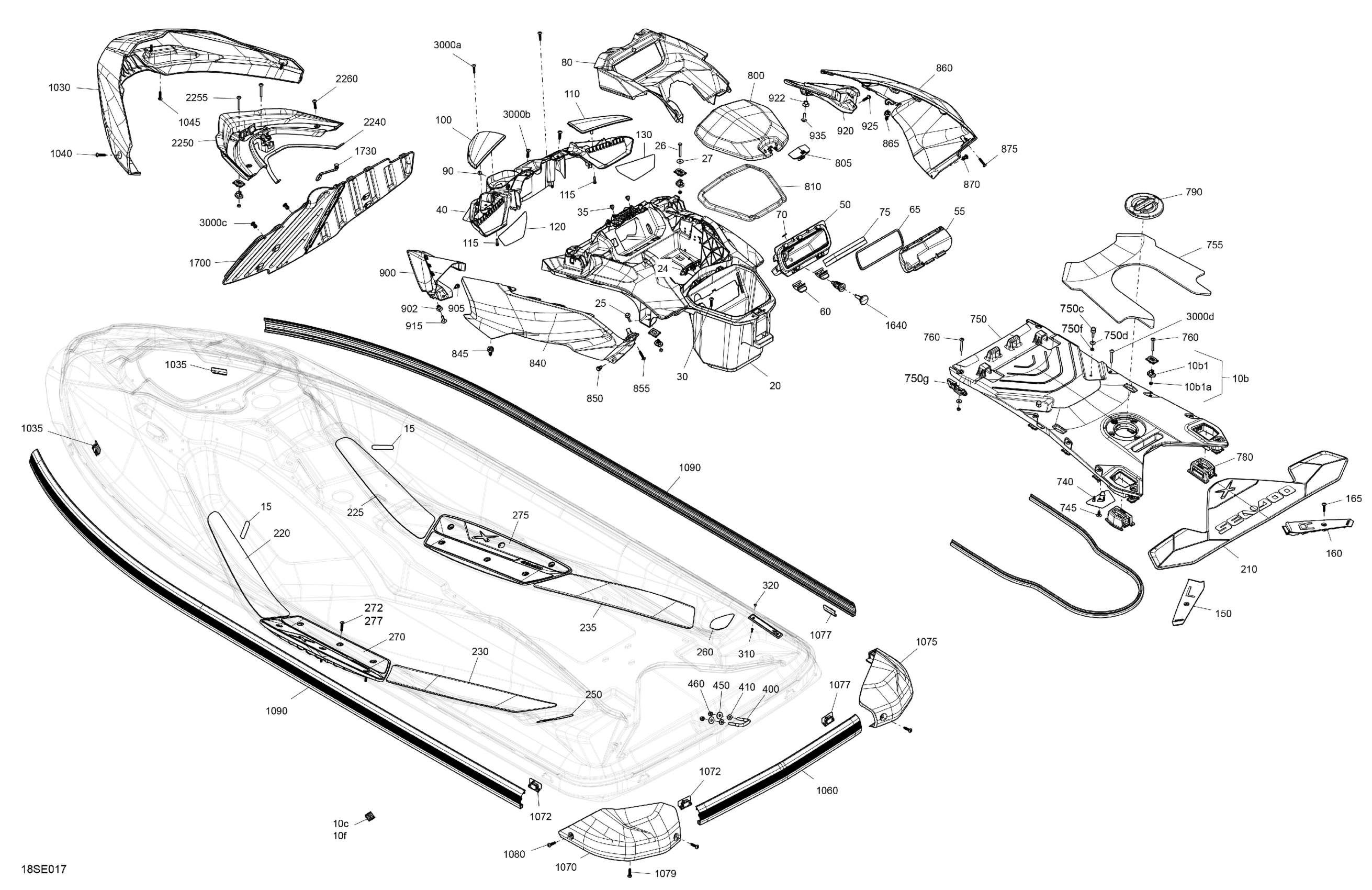

Sea-doo GTR - 300 - X - 24SE - Eclipse Black, 2025 Body - System Diagram

#

Description
Price

10b

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.15

10b1

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.85

10b1a

Elastic Stop Nut M6, Brass

232561200

$4.03

10c

Anchorage Tie Wrap

293750109

$0.99

10f

Anchorage Tie Wrap

293750109

$0.99

15

Decal

291005381

$0.94

20

Console

291005315

$166.39

24

Deep Black, Console Cap

291004718

$13.99

25

Hex Screw SEMS M6X35, SS

250000969

$2.00

26

Hex. Screw M6 X 50

207165060

$0.87

27

Flat Washer M6.6 X 22

250200022

$2.15

30

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

35

Rubber Bumper

293830005

$6.12

40

Mirror Support

291005178

$61.16

50

Deep Black, Storage Bin

291005122

$21.61

55

Box Cover

264000158

$11.72

60

Clip

269501718

$14.90

65

Gasket

293250591

$14.46

70

Vent Membrane

264000137

$10.37

75

Sealed Compartment Foam

264000135

$10.58

80

Deep Black, Console Panel

291005327

$51.46

90

Rubber Bumper

293830005

$6.12

100

Iceland Grey, LH Miror Cover

269502543

$49.97

110

Iceland Grey, RH Miror Cover

269502542

$49.97

115

Hex. Screw 10-14 X 7/8”

211000023

$3.34

120

LH Mirror Glass

269502274

$82.81

130

RH Mirror Glass

269502276

$82.81

150

LH Spacer

291005127

$17.13

160

RH Spacer

291005182

$17.13

165

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

210

Anti Slip Mat Deck Rear

291005258

$66.39

220

LH Front Anti SLip Mat

291005466

$15.64

225

RH Front Anti Slip Mat

291005467

$15.64

230

LH Rear Anti Slip Mat

291005470

$26.84

235

RH Rear Anti Slip Mat

291005471

$26.84

250

LH Rear Footrest Anti Slip Mat

291005885

$3.93

260

RH Rear Footrest Anti Slip Mat

291005886

$3.93

270

LH Footrest Ass'y

291005703

$58.18

272

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

275

RH Footrest Ass'y

291005704

$58.18

277

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

310

Rivet 1/8"

293150016

$0.33

320

Black, Snap Cap

293000014

$0.97

400

U-Clamp

292000933

$37.28

410

Flat Washer M8.5 x 18

293050001

$1.48

450

Flat Washer 8 mm, Stainless

234082600

$2.27

460

Hex. Elastic Nut M8 Brass

232581200

$1.48

740

Hose Protector

291004941

$4.22

745

Black, Dart

293730011

$0.91

750

Acces Cover Ass'y | Includes 750 to 750g

291005876

$197.73

750c

STUD - Call your local BRP dealership This part replaces 291004611.

291004611

Unavailable

750d

Flat Washer M6, Stainless

234062600

$0.73

750f

Elastic Stop Nut M6, Brass

232561200

$4.03

750g

Seal

291004717

$10.37

755

Deep Black, Rear Mat

291005861

$36.54

760

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

780

Linq Bases Kit

295100858

$24.60

790

Access Cap Ass'y

291004481

$8.21

800

Deep Black, Glove Box Cover

291005346

$60.42

805

Black, Latch

264000164

$13.09

810

Gasket

293250528

$27.58

840

Iceland Grey, LH Front Body Panel

291005328

$164.15

845

Dard

293730071

$1.03

850

Tuflok Plastic Rivet

293150230

$1.39

855

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

860

Iceland Gray, RH Front Body Panel

291005329

$164.15

865

Dard

293730071

$1.03

870

Tuflok Plastic Rivet

293150230

$1.39

875

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

900

LH Front Grille Panel

291005330

$11.00

902

Insert

291003793

$2.81

905

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

915

Hexagonal Cap Screw M6 X 25

250000978

$4.15

920

RH Front Grille Panel

291005331

$11.00

922

Insert

291003793

$2.81

925

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

935

Hexagonal Cap Screw M6 X 25

250000978

$4.15

1030

Bumper Front

291005082

$96.99

1035

Plastite Housing

291005701

$7.03

1040

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

1045

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

1060

Lateral Bumper

291005510

$52.21

1070

LH Rear Bumper Corner

291005083

$18.63

1072

Plastite Housing

291005701

$7.03

1075

RH Rear Bumper Corner

291005084

$18.63

1077

Plastite Housing

291005701

$7.03

1079

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

1080

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

1090

Lateral Bumper

291005510

$52.21

1640

USB Plug

269502324

$2.75

1700

Separation Panel Ass'y

291005587

$94.00

1730

Holding Strap

269502111

$16.39

2240

Gasket, Neoprene 2000Mm Long

219704476

$14.51

2250

Body Deflector

291005108

$51.46

2255

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

2260

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

3000a

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

3000b

Tuflok Plastic Rivet

293150230

$1.39

3000c

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

3000d

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82
