Description

Price

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1070a

Hexagonal Screw M8 X 30

250000888

$3.17

1100

Front Engine Support Ass'y

270001215

$97.99

1110

Cone Washer

250200018

$5.61

1120

Hex. Elastic Nut M8 Brass

232581200

$2.22

1150

Shim 1.3 mm

270000762

$12.99

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1570a

Hexagonal Screw M8 X 30

250000888

$3.17

1600

Lateral Engine Support Ass'y

270001211

$109.99

1610

Cone Washer

250200018

$5.61

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1650

Shim 1.3 mm

270000762

$12.99

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1820a

Hexagonal Screw M8 X 30

250000888

$3.17

1850

Lateral Engine Support Ass'y

270001211

$109.99

1860

Cone Washer

250200018

$5.61

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1900

Shim 1.3 mm

270000762

$12.99

2000a

Lower Intake Silencer

273000422

$71.99

2000b

Upper Intake Silencer

273000423

$71.99

2000c

Intake Duct Silencer Int

273000424

$49.99

2000d

Intake Duct Silencer Out

273000428

$45.99

2000f

Intake Duct Silencer In

273000425

$48.99

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Seat Stopper

708003866

$4.59

2000j

Mount Dart

293730040

$1.04

2300

Formed Hose

270000950

$10.99

2305

Breather Valve

273000234

$14.49

2310

Gear Clamp

293650284

$4.44

2315

Gear Clamp

293650284

$4.44

2350

Central Intake Duct

273000426

$48.99

2370

Duct Support

273000431

$48.99

2380

Hex. Flange PT Screw K50 X 20

241152040

$2.11

2385

Retaining Strap

273000437

$15.35

2410

Tridon Gear Clamp

293650244

$9.29

2420

Molded Compressor Hose IN

273000470

$44.49

2430

Tridon Clamp

293650179

$11.49

3000

Intercooler

276000406

$519.49

3010

Formed Hose

273000418

$83.99

3020

Tridon Gear Clamp

293650244

$9.29

3025

Tridon Clamp

293650179

$11.49

3030

Oultet Hose

273000419

$85.99

3040

Tridon Gear Clamp

293650244

$9.29

3045

Tridon Clamp

293650179

$11.49

3070

Fuel Tank Strap

293850094

$22.49

3075

Fuel Tank Strap

293850095

$19.99

3550

Flange Torx Screw K40 X 16

250000287

$2.11

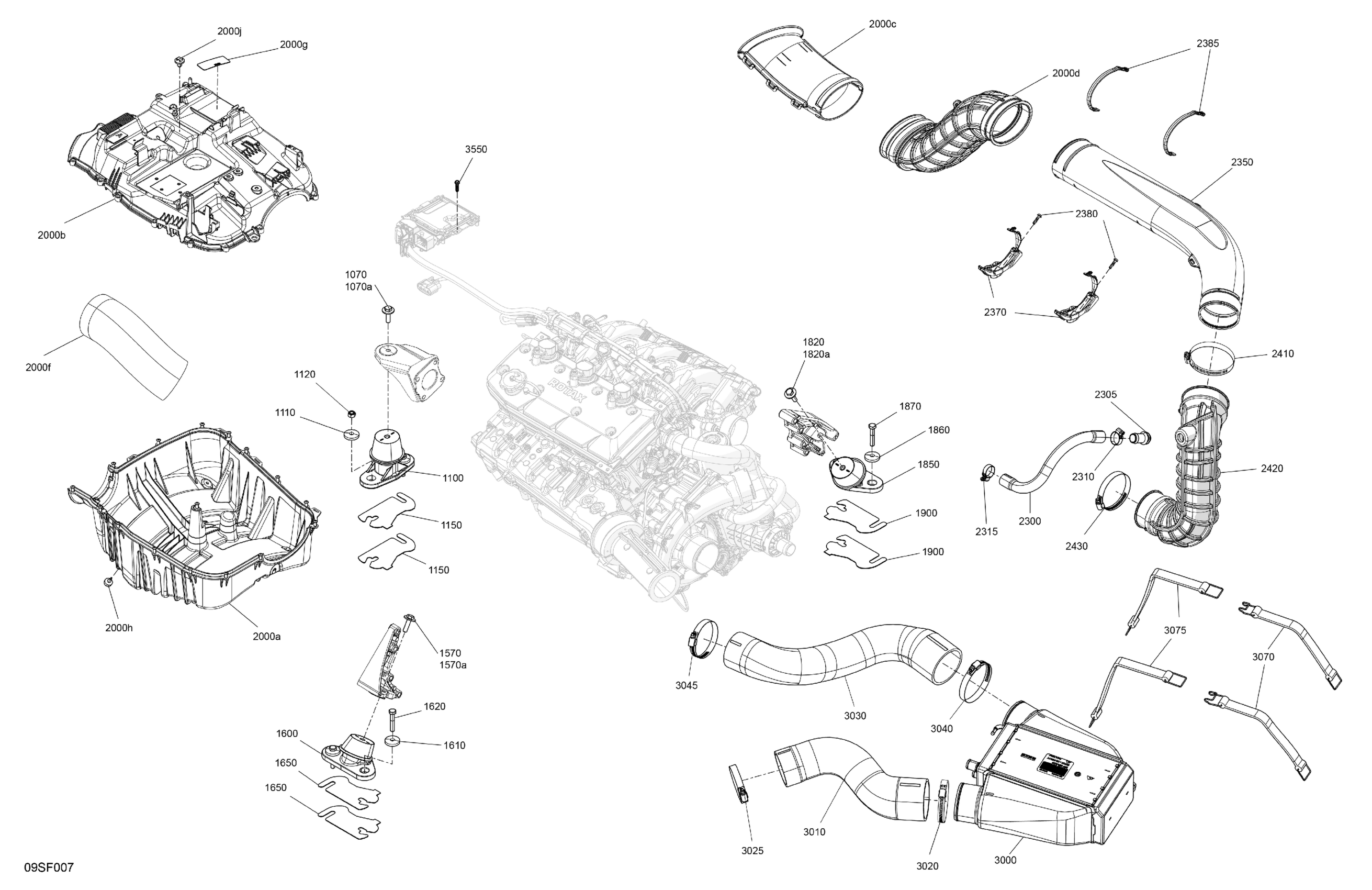

Sea-doo GTR - 230 - STD - 36TC - Eclipse Black, 2026 Engine - System Diagram

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Hexagonal Screw M8 X 30

Front Engine Support Ass'y

Cone Washer

Hex. Elastic Nut M8 Brass

Shim 1.3 mm

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Hexagonal Screw M8 X 30

Lateral Engine Support Ass'y

Cone Washer

Hexagonal Head Cap Screw M8 X 45

Shim 1.3 mm

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Hexagonal Screw M8 X 30

Lateral Engine Support Ass'y

Cone Washer

Hexagonal Head Cap Screw M8 X 45

Shim 1.3 mm

Lower Intake Silencer

Upper Intake Silencer

Intake Duct Silencer Int

Intake Duct Silencer Out

Intake Duct Silencer In

Air Silencer Notice Decal

Seat Stopper

Mount Dart

Formed Hose

Breather Valve

Gear Clamp

Gear Clamp

Central Intake Duct

Duct Support

Hex. Flange PT Screw K50 X 20

Retaining Strap

Tridon Gear Clamp

Molded Compressor Hose IN

Tridon Clamp

Intercooler

Formed Hose

Tridon Gear Clamp

Tridon Clamp

Oultet Hose

Tridon Gear Clamp

Tridon Clamp

Fuel Tank Strap

Fuel Tank Strap

Flange Torx Screw K40 X 16
