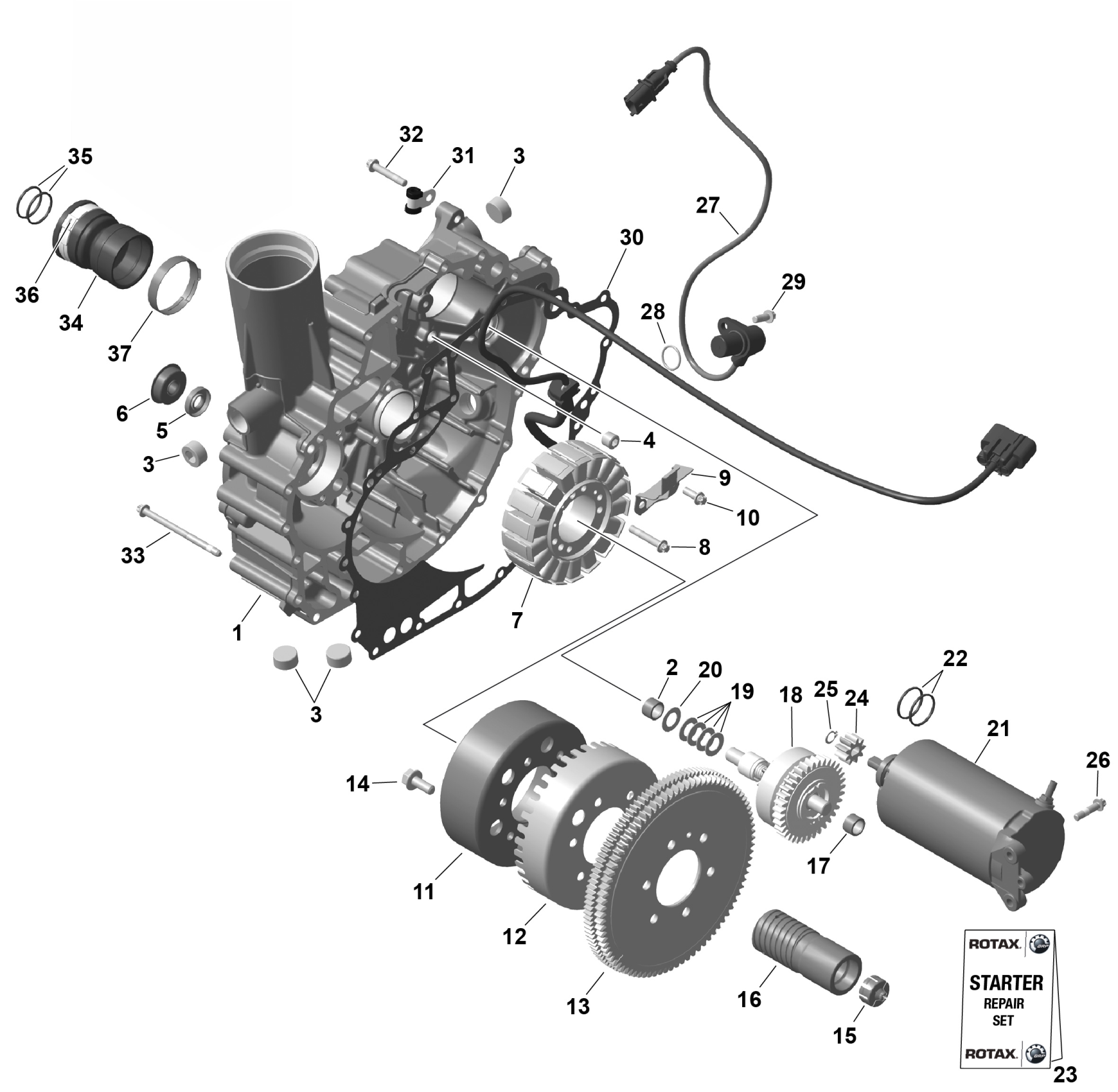

Sea-doo GTR - 230 - STD - 36TC - Eclipse Black, 2026 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes no. 1-6

420912264

$779.99

2

Needle Bushing

420232482

$20.99

3

Plug Screw M20 X 1.5

420641317

$14.22

4

Plug Screw M10 X 1

420641323

$14.28

5

Oil Seal

420650316

$11.65

6

Rotary Seal

420650371

$43.49

7

Stator Plate

420889728

$319.49

8

Torx Flange Screw M6 X 35

420641258

$3.38

9

Retaining Plate

420926303

$1.39

10

Torx Flange Screw M6 X 16

420641048

$2.96

11

Magneto Flywheel

420296900

$461.99

12

Trigger Wheel

420966851

$18.49

13

Starter Double Gear 87/86T

420834871

$319.99

14

Hex Screw

295501162

$15.28

15

Stop Sleeve

420660280

$14.75

16

Output Sleeve

420947773

$121.99

17

Needle Bushing

420232482

$20.99

18

Starter Drive

420888041

$274.99

19

Spring Disk | Includes no. 18-19

420238307

$28.49

19

Spring Washer

420238300

$7.41

20

Thrust Washer

420827280

$8.47

21

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

22

O-Ring

420631310

$4.44

23

Carbon Brush Set

420881340

$67.99

24

Starter Gear, 9 Teeth

420834522

$74.99

25

Retaining Ring

420845601

$4.55

26

Torx Flange Screw M6 X 25

420641238

$3.27

27

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

28

O-Ring

420431580

$14.83

29

Torx Flange Screw M6 X 16

420641048

$2.96

30

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$23.49

31

Clamp

420853414

$18.49

32

Torx Flange Screw M6 X 35

420641258

$3.38

33

Torx Flange Screw M6 X 85

420641228

$7.41

34

Ball Bearing With Bellows Ass'y | Includes no. 33-35

420832643

$142.99

35

O-Ring

420631612

$4.33

36

Gear Clamp 46.8-50.0MM

420853023

$7.41

37

Gear Clamp

420851653

$7.41
