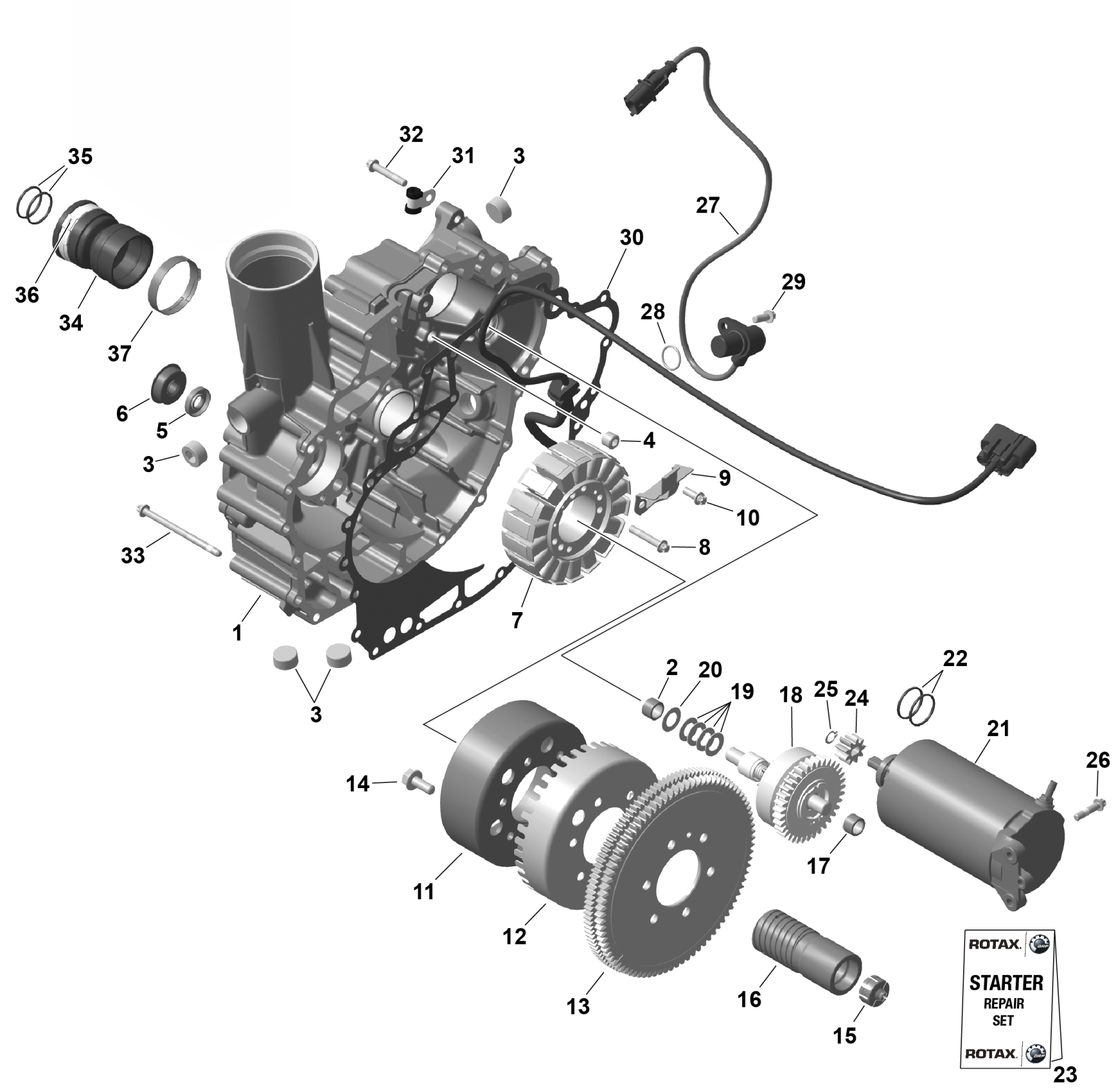

Sea-doo GTR - 230 - STD - 36SE - Eclipse Black, 2025 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes no. 1-6

420912264

$695.49

2

Needle Bushing

420232482

$17.88

3

Plug Screw M20 X 1.5

420641317

$12.15

4

Plug Screw M10 X 1

420641323

$13.18

5

Oil Seal

420650316

$11.04

6

Rotary Seal

420650371

$41.01

7

Stator Plate

420889728

$319.49

8

Torx Flange Screw M6 X 35

420641258

$3.19

9

Retaining Plate

420926303

$1.12

10

Torx Flange Screw M6 X 16

420641048

$2.82

11

Magneto Flywheel

420296900

$461.99

12

Trigger Wheel

420966851

$17.13

13

Starter Double Gear 87/86T

420834871

$287.28

14

Hex Screw

295501162

$13.16

15

Stop Sleeve

420660280

$12.52

16

Output Sleeve

420947773

$112.66

17

Needle Bushing

420232482

$17.88

18

Starter Drive

420888041

$246.24

19

Spring Disk | Includes no. 18-19

420238307

$26.84

19

Spring Washer

420238300

$7.01

20

Thrust Washer

420827280

$7.90

21

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

22

O-Ring

420631310

$4.15

23

Carbon Brush Set

420881340

$60.42

24

Starter Gear, 9 Teeth

420834522

$68.63

25

Retaining Ring

420845601

$4.28

26

Torx Flange Screw M6 X 25

420641238

$3.07

27

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

28

O-Ring

420431580

$14.10

29

Torx Flange Screw M6 X 16

420641048

$2.82

30

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$22.36

31

Clamp

420853414

$17.13

32

Torx Flange Screw M6 X 35

420641258

$3.19

33

Torx Flange Screw M6 X 85

420641228

$7.01

34

Ball Bearing With Bellows Ass'y | Includes no. 33-35

420832643

$131.31

35

O-Ring

420631612

$4.04

36

Gear Clamp 46.8-50.0MM

420853023

$7.01

37

Gear Clamp

420851653

$7.01
