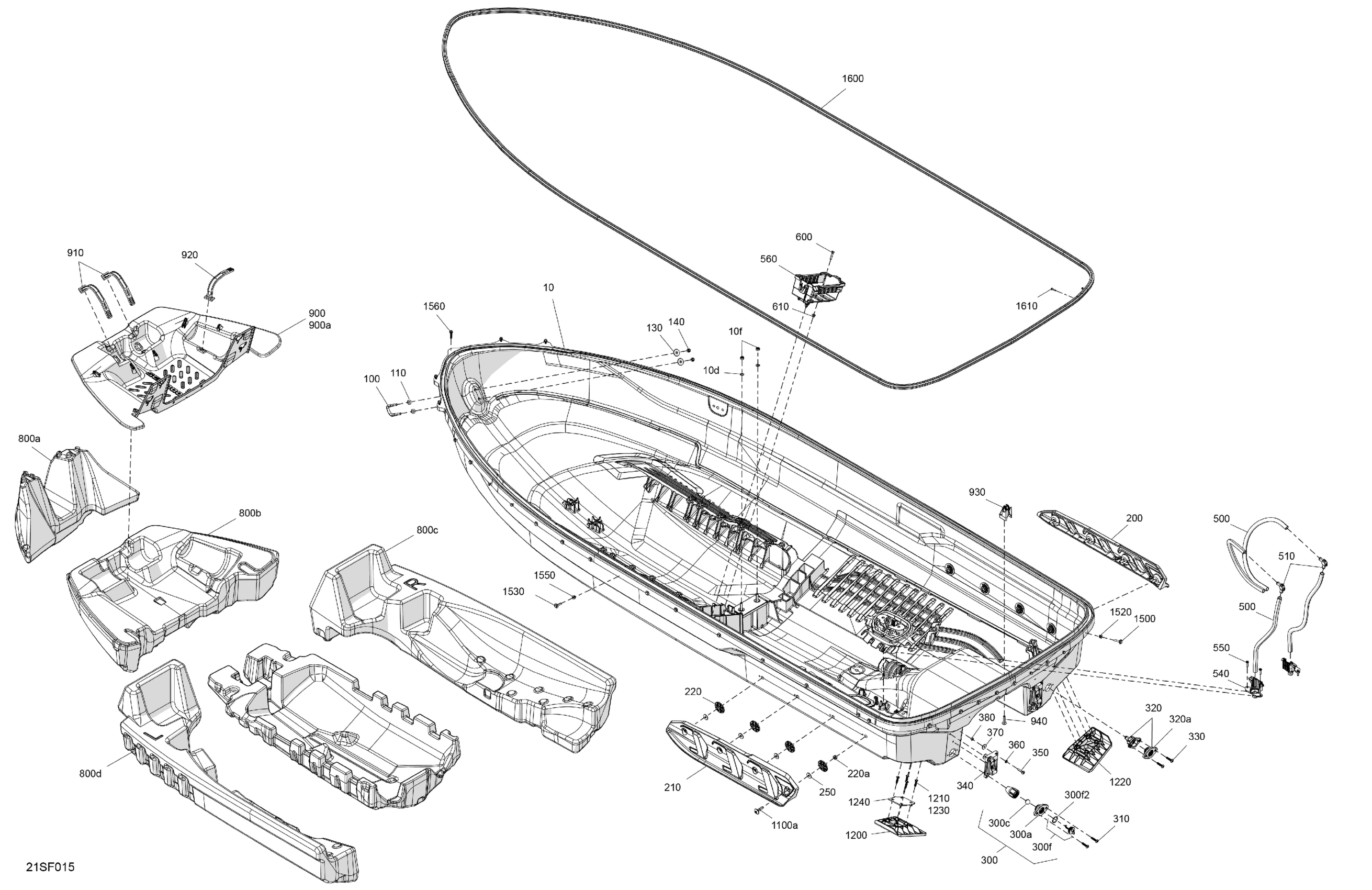

Sea-doo GTI - 130 - STD - 38TB - Bright White, 2026 Body - Hull Diagram

#

Description
Price

10

Hull Ass'y | Includes 10 to 10f

292003089

$2.00

10d

Flat Washer M8, Stainless

234080600

$1.48

10f

Hex. Elastic Nut M8 Brass

232581200

$2.22

100

U-Clamp

292000933

$59.49

110

Flat Washer M8.5 x 18

293050001

$3.07

130

Flat Washer 8 mm, Stainless

250200175

$3.06

140

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

RH Sponson

292001953

$54.99

210

LH Sponson

292001954

$65.99

220

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

220a

Hex. Flange Nut M8

233181600

$1.05

250

Flat Washer 8 mm

234082410

$1.47

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$15.49

300a

Through Hull Fitting

292002765

$7.79

300c

Floating Ball

293830080

$7.19

300f

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

300f2

O-Ring

293300067

$1.04

310

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

320

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$14.49

320a

Through Hull Fitting

292002765

$7.79

330

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

340

Ladder Trim Fastener

292002697

$8.49

350

Truss Cone Torx Screw M6 X 30

250000924

$7.51

360

Stainless Flat Washer M6

234061600

$0.33

370

Flat Washer M6.6 X 22

250200022

$2.72

380

Elastic Stop Nut M6, Brass

232561200

$4.23

500

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

510

Fitting Elbow 90°

293710152

$18.49

540

Pump Support

269800956

$3.39

550

Hex. Screw 10-14 X 7/8”

211000023

$3.59

560

Battery Support

292003064

$28.99

600

Hex Sems Screw M6X30

250001183

$2.85

610

Nut Flange Elastic M6

233261200

$0.99

800a

Float Hull Front Upper

292002405

$36.99

800b

Float Hull Front

292002399

$104.99

800c

RH Center Float Hull

292002229

$104.99

800d

LH Center Float Hull

292002230

$104.99

900

Panel | Includes 900 to 900a

292002397

$54.99

900a

Trunk Shield

292001868

$43.99

910

Strap

269502417

$17.69

920

Strap

269502417

$17.69

930

Strap Anchor

270000988

$10.28

940

Hexagonal Cap Screw M6 X35

250000399

$4.44

1200

LH Trim Tab

292002102

$18.49

1210

Hexagonal Cap Screw M6 X 25

250000978

$4.44

1220

RH Trim Tab

292002103

$18.49

1230

Hexagonal Cap Screw M6 X 25

250000978

$4.44

1240

Gasket

277002171

$4.33

1500

Hex Sems Screw M6X30

250001183

$2.85

1520

Nut Flange Elastic M6

233261200

$0.99

1530

Hex Sems Screw M6X30

250001183

$2.85

1550

Nut Flange Elastic M6

233261200

$0.99

1560

Hex. Flange Screw M6.81 X 30

243163060

$2.32

1600

Gasket

292002242

$54.99

1610

Self Drilling Screw #8 X 3/4

250001132

$1.37

1100a

Torx Head Screw M8 X 35

250001215

$5.92
