- 001 - GTI Series
- GTI 130 - International, 2026
- International - GTI - 130 - STD - 38TA - Bright White, 2026
04- Drive - Propulsion

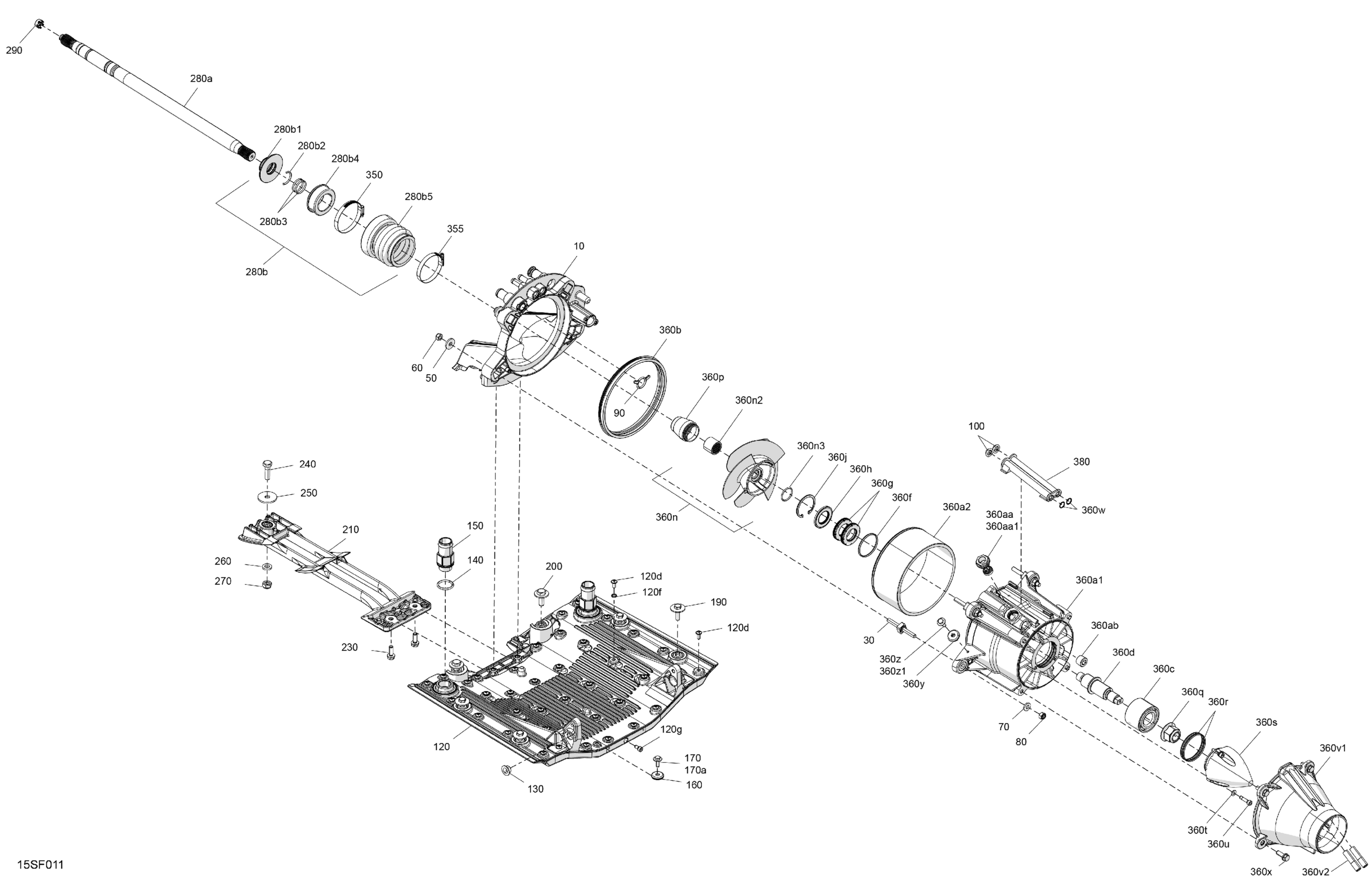

Sea-doo International - GTI - 130 - STD - 38TA - Bright White, 2026 04- Drive - Propulsion Diagram
#
10
Pump Support
271001976
$51.99
15
Shim 0.3 mm
272000053
$11.49
30
Square Stud
250300046
$14.82
50
Flat Washer
279000336
$11.57
60
Hex. Elastic Nut M8 Brass
232581200
$2.22
70
Flat Washer M8.5 x 18
293050001
$3.07
80
Hex. Elastic Nut M8 Brass
232581200
$2.22
90
Gasket
271002033
$1.67
100
Watertight Seal
293250084
$7.49
120
Ride Plate Ass'y | Includes 120 to 120g
271002336
$370.99
120d
Torx Screw M6 X 14
250000384
$7.51
120f
Sealing Washer
250200114
$4.44
120g
Socket Drain Plug M6 X 12
250500005
$16.49
130
Venturi Bushing
293900007
$5.45
140
O-Ring
293300121
$8.32
150
Strait Fitting
293710124
$17.39
160
Anode Zinc
271001920
$15.99
170
Hex Screw M6 X 20
250000965
$2.11
170a
Not Available As Spare Parts
XXX
Unavailable
190
Hex Sems Screw M8 X 30
250000967
$2.85
200
Screw Hex Sems S.Grip M10 X 30
250001268
$17.99
210
Intake Grate - Anodized
271002159
$36.99
230
Hex Sems Screw M8 X 25
250000968
$2.85
240
Hexagonal Head Cap Screw M10 X 35
250001159
$1.79
250
Flat Washer
250200194
$5.92
260
Washer Flat M10
250200193
$5.50
270
Elastic Stop Nut M10, Brass
232501200
$2.64
280a
Propeller Shaft
271002210
$269.99
280b
Carbon Ring Kit | Includes 280b to 280b5
295501202
$84.99
280b1
Rotary Ring
271002206
Unavailable
280b2
C-Clip
271001575
$6.11
280b3
O-Ring
293300219
$0.93
280b4
Carbon Ring
271002109
Unavailable
280b5
Bellow Ass'y
271002194
$24.49
290
Drive Shaft Plug
271002113
$11.58
350
Tridon Clamp
293650179
$11.49
355
Tridon Clamp
293650179
$11.49
360a1
Impeller Housing
271002018
$294.99
360a2
Wear Ring
267000419
$84.99
360b
Pump Gasket
271002395
$14.49
360c
Angled Bearing
271002182
$82.49
360d
Impeller Shaft
267000388
$116.49
360f
O-Ring
293300090
$7.20
360g
Seal
271002071
$33.99
360h
Oil Seal
293200089
$19.99
360j
Circlip
293370038
$8.79
360n
Impeller Ass'y | Includes 360n to 360n3
267001108
$391.99
360n2
Impeler Insert
267000554
Unavailable
360n3
O-Ring
293300044
$1.05
360p
Guard
271002225
$11.99
360q
Elastic Flange Nut M20
250100104
$12.66
360r
O-Ring
293300086
$3.59
360s
Impeller Cover
267000428
$18.49
360t
Stainless Flat Washer M6
234061600
$0.33
360u
Socket Head Screw M6 X 25, Scotch Grip
205562560
$2.11
360v1
Venturi Anodized
271001999
$40.99
360v2
Siphone Tube
271002369
$2.49
360w
O-Ring
293300013
$8.18
360x
Hex Sems Screw M8 X 25
250000968
$2.85
360y
Anode Zinc
271001920
$15.99
360z
Hex Screw M6 X 20
250000965
$2.11
360z1
Not Available As Spare Parts
XXX
Unavailable
360aa
Plug | Includes 370z to 370z1
267000282
$19.49
360aa1
Not Available As Spare Parts
XXX
Unavailable
360ab
Black, Plastic Plug
267000469
$7.59
380
Water Outlet
271000785
$3.80
