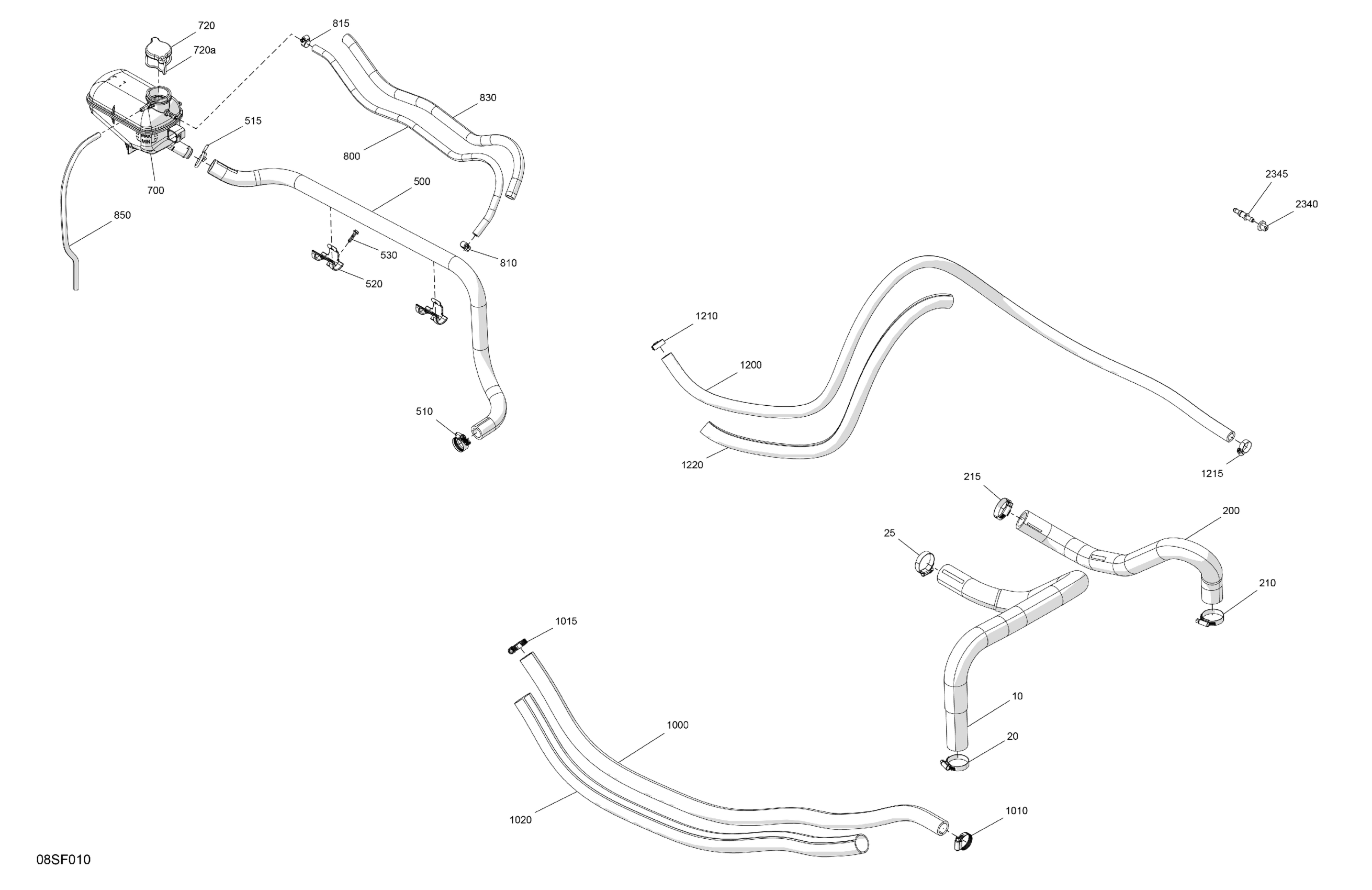

Sea-doo GTI - 130 - STD - 38TB - Bright White, 2026 Engine - Cooling Diagram

Description

Price

Hose

276000516

$51.97

Norma Clamp

293650245

$11.77

Norma Clamp

293650245

$11.77

200

Formed Hose

276000517

$45.47

210

Norma Clamp

293650245

$11.77

215

Norma Clamp

293650245

$11.77

500

Coolant Tank Hose

276000537

$35.04

510

Tridon Gear Clamp

293650019

$4.81

515

Spring Clamp

293650115

$2.46

520

Hose Support

270001126

$6.28

530

Hex. Flange PT Screw K50 X 20

241152040

$1.74

700

Coolant Tank

276000419

$94.22

720

Pressure Cap | Includes 720 to 720a

276000100

$20.77

720a

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

800

Hose 6,4 MM ID

276000425

$6.91

810

Gear Clamp

293650287

$1.74

815

Gear Clamp

293650287

$1.74

830

Was 409901800 Tubing (13 mm)

219704400

$9.40

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

1000

Hose 19Mm X 4000 mm Long

219704613

$40.92

1010

Gear Clamp

293650284

$4.15

1015

Gear Clamp

293650284

$4.15

1020

Tubing 25 MM 1000MM Long

219704402

$12.69

1200

Was 276000001 Hose 12.5 mm

219704394

$42.87

1210

Clamp Gear

293650285

$2.68

1215

Clamp Gear

293650285

$2.68

1220

Was 515175319 Tubing 22 mm

219704423

$11.84

2340

Grommet

293720029

$1.13

2345

Straight Fitting

293710133

$12.52
