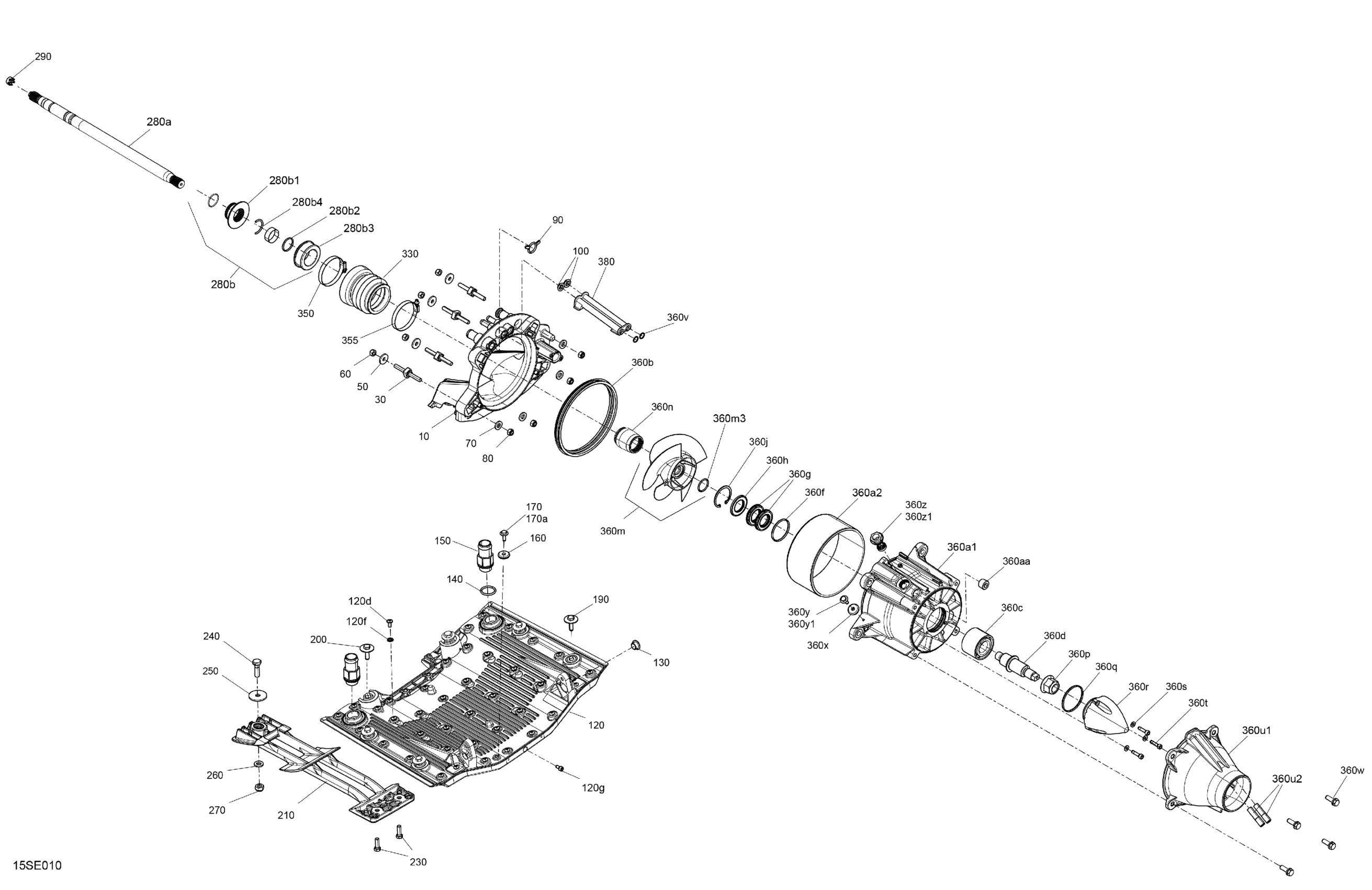

Sea-doo GTI - 130 - STD - 38SC - Bright White, 2025 Drive - Propulsion Diagram

#

Description
Price

10

Pump Support

271001976

$51.99

15

Shim 0.3 mm

272000053

$11.49

30

Square Stud

250300046

$14.82

50

Flat Washer

279000336

$11.57

60

Hex. Elastic Nut M8 Brass

232581200

$2.22

70

Flat Washer M8.5 x 18

293050001

$3.07

80

Hex. Elastic Nut M8 Brass

232581200

$2.22

90

Gasket

271002033

$1.67

100

Watertight Seal

293250084

$7.49

120

Ride Plate Ass'y | Includes 120 to 120g

271002336

$370.99

120d

Torx Screw M6 X 14

250000384

$7.51

120f

Sealing Washer

250200114

$4.44

120g

Socket Drain Plug M6 X 12

250500005

$16.49

130

Venturi Bushing

293900007

$5.45

140

O-Ring

293300121

$8.32

150

Strait Fitting

293710124

$17.39

160

Anode Zinc

271001920

$15.99

170

Hex Screw M6 X 20

250000965

$2.11

170a

Not Available As Spare Parts

XXX

Unavailable

190

Hex Sems Screw M8 X 30

250000967

$2.85

200

Screw Hex Sems S.Grip M10 X 30

250001268

$17.99

210

Intake Grate - Anodized

271002159

$36.99

230

Hex Sems Screw M8 X 25

250000968

$2.85

240

Hexagonal Head Cap Screw M10 X 35

250001159

$1.79

250

Flat Washer

250200194

$5.92

260

Washer Flat M10

250200193

$5.50

270

Elastic Stop Nut M10, Brass

232501200

$2.64

280a

Propeller Shaft

271002210

$269.99

280b

Rotary Ring Kit | Includes 280b to 280b4

295501211

$84.99

280b1

Rotary Ring

271002206

Unavailable

280b2

O-Ring

293300219

$0.93

280b3

Carbon Ring

271002109

Unavailable

280b4

C-Clip

271001575

$6.11

290

Drive Shaft Plug

271002113

$11.58

330

Bellow Ass'y

271002194

$24.49

350

Tridon Clamp

293650179

$11.49

355

Tridon Clamp

293650179

$11.49

360a1

Impeller Housing

271002018

$294.99

360a2

Wear Ring

267000419

$84.99

360b

Pump Gasket

271002395

$14.49

360c

Angled Bearing

271002182

$82.49

360d

Impeller Shaft

267000388

$116.49

360f

O-Ring

293300090

$7.20

360g

Seal

271002071

$33.99

360h

Oil Seal

293200089

$19.99

360j

Circlip

293370038

$8.79

360m

Impeller Ass'y | Includes 360n to 360n3

267001108

$391.99

360m3

O-Ring

293300044

$1.05

360n

Guard

271002225

$11.99

360p

Elastic Flange Nut M20

250100104

$12.66

360q

O-Ring

293300086

$3.59

360r

Impeller Cover

267000428

$18.49

360s

Stainless Flat Washer M6

234061600

$0.33

360t

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

360u1

Venturi Anodized

271001999

$40.99

360u2

Siphone Tube

271002369

$2.49

360v

O-Ring

293300013

$8.18

360w

Hex Sems Screw M8 X 25

250000968

$2.85

360x

Anode Zinc

271001920

$15.99

360y

Hex Screw M6 X 20

250000965

$2.11

360y1

Hex Screw M6 X 20

250000965

$2.11

360z

Plug | Includes 370z to 370z1

267000282

$19.49

360z1

Plug | Includes 370z to 370z1

267000282

$19.49

360aa

Black, Plastic Plug

267000469

$7.59

380

Water Outlet

271000785

$3.80
