Description

Price

10

Steering Column

277002134

$209.99

20

Wear Ring

277001874

$12.17

110

Deep Black, Handlebar Trim

277002239

$17.49

180

LH Cover

277002233

$18.99

181

Hex. Screw 10-14 X 7/8”

211000023

$3.59

190

Red Button Switch

277002327

$9.21

200

Hand Lever Accelerator

277002138

$38.99

220

Hex. Screw 10-14 X 7/8”

211000023

$3.59

230

Flat Washer 5 mm, Stainless

234052600

$0.77

235

Hex. Flange Screw K40 X 25

241142560

$2.64

236

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

260

Hex. Screw 10-14 X 7/8”

211000023

$3.59

270

Flat Washer 5 mm, Stainless

234052600

$0.77

275

Hex. Flange Screw K40 X 25

241142560

$2.64

276

Flat Washer 4 mm, Stainless

234042600

$1.15

330

RH Cover

277002236

$18.99

331

Hex. Screw 10-14 X 7/8”

211000023

$3.59

355a

Deep Black, LH Handle Grip

277001958

$20.99

355b

Deep Black, RH Handle Grip

277001946

$20.99

400

Steering Cover

277001985

$68.99

440

Steering Arm

277002319

$9.19

465

Nut Flange Elastic M6

233261200

$0.99

470

Spacer

277001654

$15.99

501

Hex. Screw M6 X 40

207064060

$1.69

510

Stainless Flat Washer M6

234061600

$0.33

530

Ball Joint

277001180

$35.99

540

Steering Cable | Includes 540 to 540b

277002450

$121.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

545

Hex. Nut 1/4"-28

211100056

$0.69

550

Wiper Rod

277001582

$11.11

555

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

580

Hexagonal Cap Screw M6 X35

250000399

$4.44

630

Ball Joint

277000775

$51.99

640

Hex Sems Screw M6X35

250000970

$2.11

640a

Hex Screw SEMS M6X35, SS

250000969

$2.11

690

Hexagonal Cap Screw M6 X35

250000399

$4.44

710

Steering Column Support

277002168

$51.99

720

Wear Ring

277002318

$15.99

840

Hex. Screw M6 X 40

207164060

$3.38

845

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$2.00

845a

Elastic Stop Nut M6, Brass

232561200

$4.23

850

Flat Washer M6.6 X 22

250200022

$2.72

860

Cable Boot

293720116

$4.49

895

Corrugated Sheath 22MM - 1250MM

276000520

$26.49

900

Cable Retainer

275500527

$2.68

905

Rope Guide

277002150

$0.93

3900

Hexagonal Cap Screw M6 X35

250000399

$4.44

3910

C Clamp

277002085

$9.19

3920

Flat Washer M6, Stainless

234062600

$0.77

3930

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.89

3940

Black, Cap

277000203

$9.39

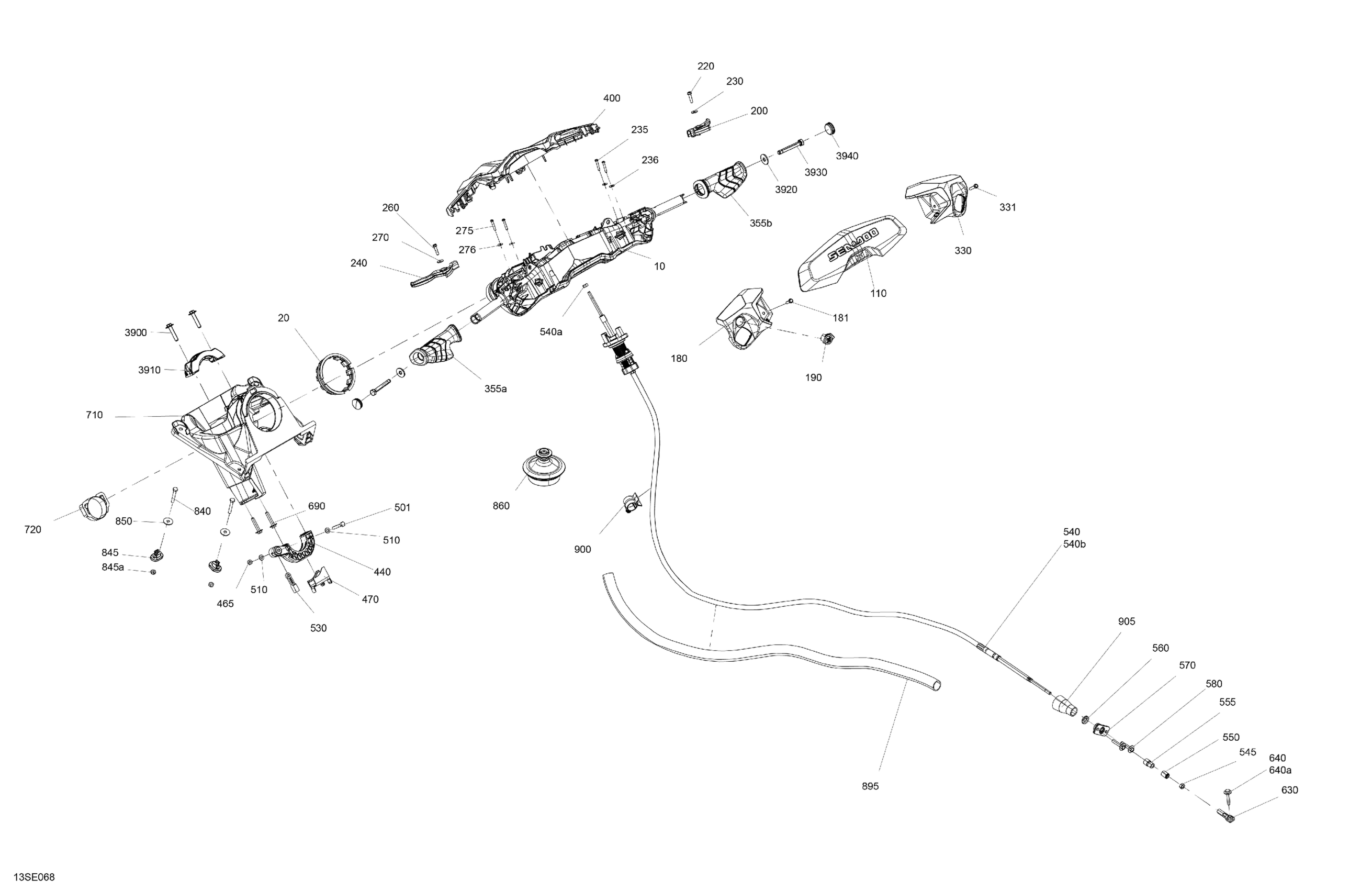

Sea-doo GTI - 130 - STD - 38SC - Bright White, 2025 Mechanic - Steering Diagram

Steering Column

Wear Ring

Deep Black, Handlebar Trim

LH Cover

Hex. Screw 10-14 X 7/8”

Red Button Switch

Hand Lever Accelerator

Hex. Screw 10-14 X 7/8”

Flat Washer 5 mm, Stainless

Hex. Flange Screw K40 X 25

Flat Washer 4 mm, Stainless

Reverse Handle

Hex. Screw 10-14 X 7/8”

Flat Washer 5 mm, Stainless

Hex. Flange Screw K40 X 25

Flat Washer 4 mm, Stainless

RH Cover

Hex. Screw 10-14 X 7/8”

Deep Black, LH Handle Grip

Deep Black, RH Handle Grip

Steering Cover

Steering Arm

Nut Flange Elastic M6

Spacer

Hex. Screw M6 X 40

Stainless Flat Washer M6

Ball Joint

Steering Cable | Includes 540 to 540b

Hex. Nut 1/4"-28

Wiper Rod

Hex. Nut 1/4"-28

Wiper Rod

End Piece

Rubber Washer

Ring Halves

Hexagonal Cap Screw M6 X35

Ball Joint

Hex Sems Screw M6X35

Hex Screw SEMS M6X35, SS

Hexagonal Cap Screw M6 X35

Steering Column Support

Wear Ring

Hex. Screw M6 X 40

Housing Nut Overmolded | Includes 2060 to 2060a

Elastic Stop Nut M6, Brass

Flat Washer M6.6 X 22

Cable Boot

Corrugated Sheath 22MM - 1250MM

Cable Retainer

Rope Guide

Hexagonal Cap Screw M6 X35

C Clamp

Flat Washer M6, Stainless

Hex. Screw M6 x 45, Scotch Grip

Black, Cap
