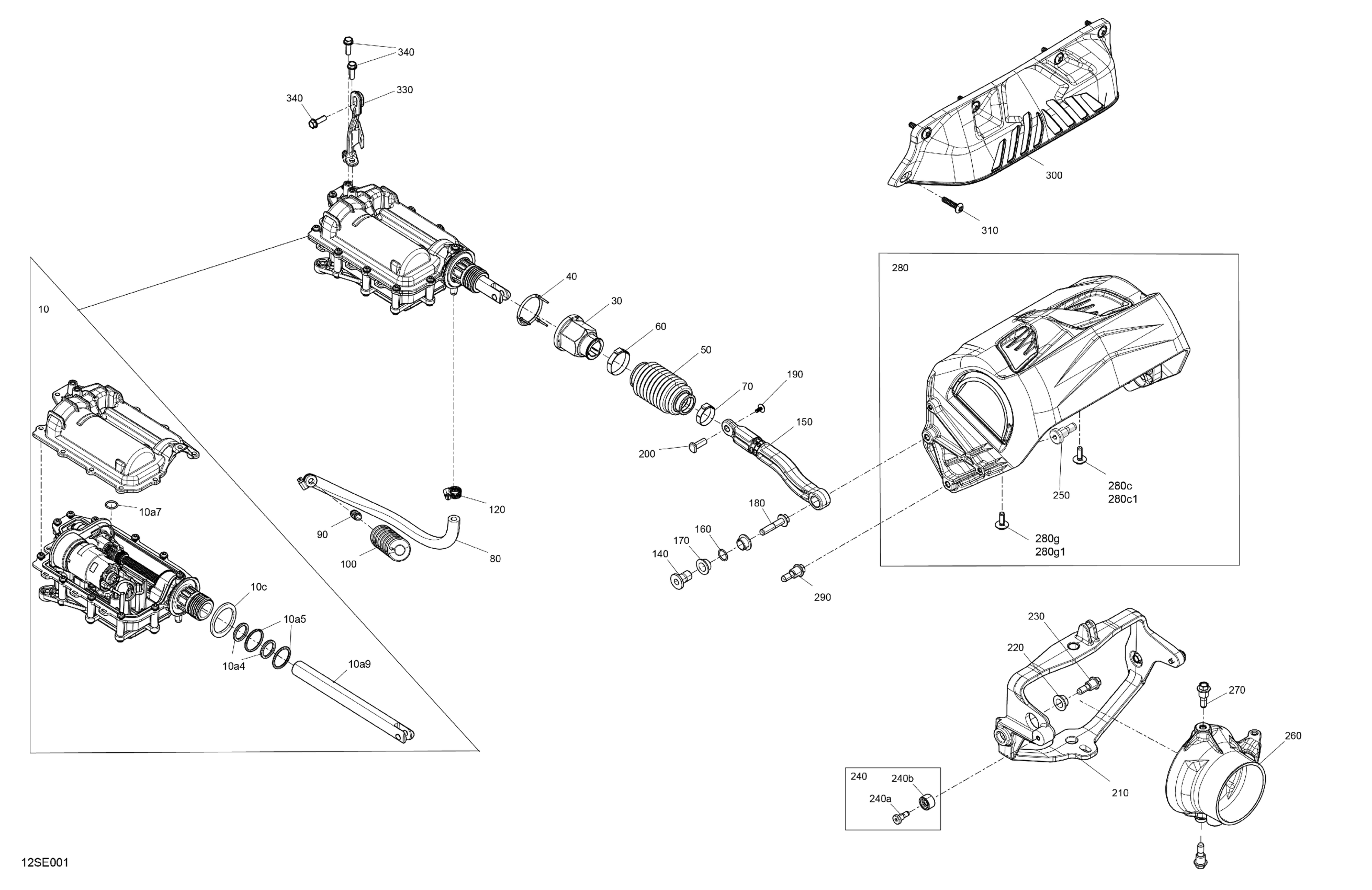

Sea-doo GTI - 130 - STD - 38SC - Bright White, 2025 Mechanic - Reverse Diagram

#

Description
Price

10

Actuator Reverse Ass'y | Includes 10 to 10c

278004394

$829.99

10a4

O-Ring

279000108

$6.03

10a5

O-Ring

293300107

$1.01

10a7

O-Ring

293300187

$4.89

10a9

Output Shaft

278003027

$54.99

10c

Gasket

268000208

$15.37

30

IBR Nut

268000308

$12.59

40

Rubber Gasket

277001977

$2.61

50

Boot

268000186

$27.49

60

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

70

Crimp Clamp

293650099

$4.29

80

Was 509000407 Hose 8 mm

219704420

$50.99

90

Fitting-Straig

293710157

$8.29

100

Inner Boot This part replaces 268000345.

268000211

$12.06

120

Clamp Gear

293650285

$3.27

140

Bushing

268000269

$16.87

150

Linkage Arm Anodised

268000292

$22.49

160

O-Ring

293300187

$4.89

170

Venturi Bushing

293900007

$5.45

180

Hex. Flange Screw Din.6921 S.Grip

250000963

$3.91

190

Hexalob Screw M4 X 10

250000565

$2.11

200

Shoulder Pin

268000309

$19.99

210

Anodised Trimming Ring

268000318

$95.99

220

Venturi Bushing

293900007

$5.45

230

Hex. Flange Screw S.Grip M8 X 18

250000927

$3.91

240

Roller Bushing Kit | Includes 240 to 240b

295501160

$4.29

240a

Screw-Socket Shoulder M8X8

250000775

$8.29

240b

Roller Bushing Kit | Includes 240 to 240b

295501160

$4.29

250

Screw-Socket Shoulder M8X8

250000775

$8.29

260

Steering Nozzle

267000906

$33.99

270

Hex. Flange Screw S.Grip M8 X 18

250000927

$3.91

280

Reverse Gate Service Kit | Includes 280 to 280g

295101411

$93.99

280c

Hex Screw M6 X 20

250000965

$2.11

280c1

Not Available As Spare Parts

XXX

Unavailable

280g

Hex Screw M6 X 20

250000965

$2.11

280g1

Not Available As Spare Parts

XXX

Unavailable

290

Hex. Flange Screw S.Grip M8 X 18

250000927

$3.91

300

IBR Guard

268000301

$29.99

310

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

330

Actuator Brace

268000307

$4.99

340

Hex. Flange Screw M6.81 x 20

243162060

$3.72
