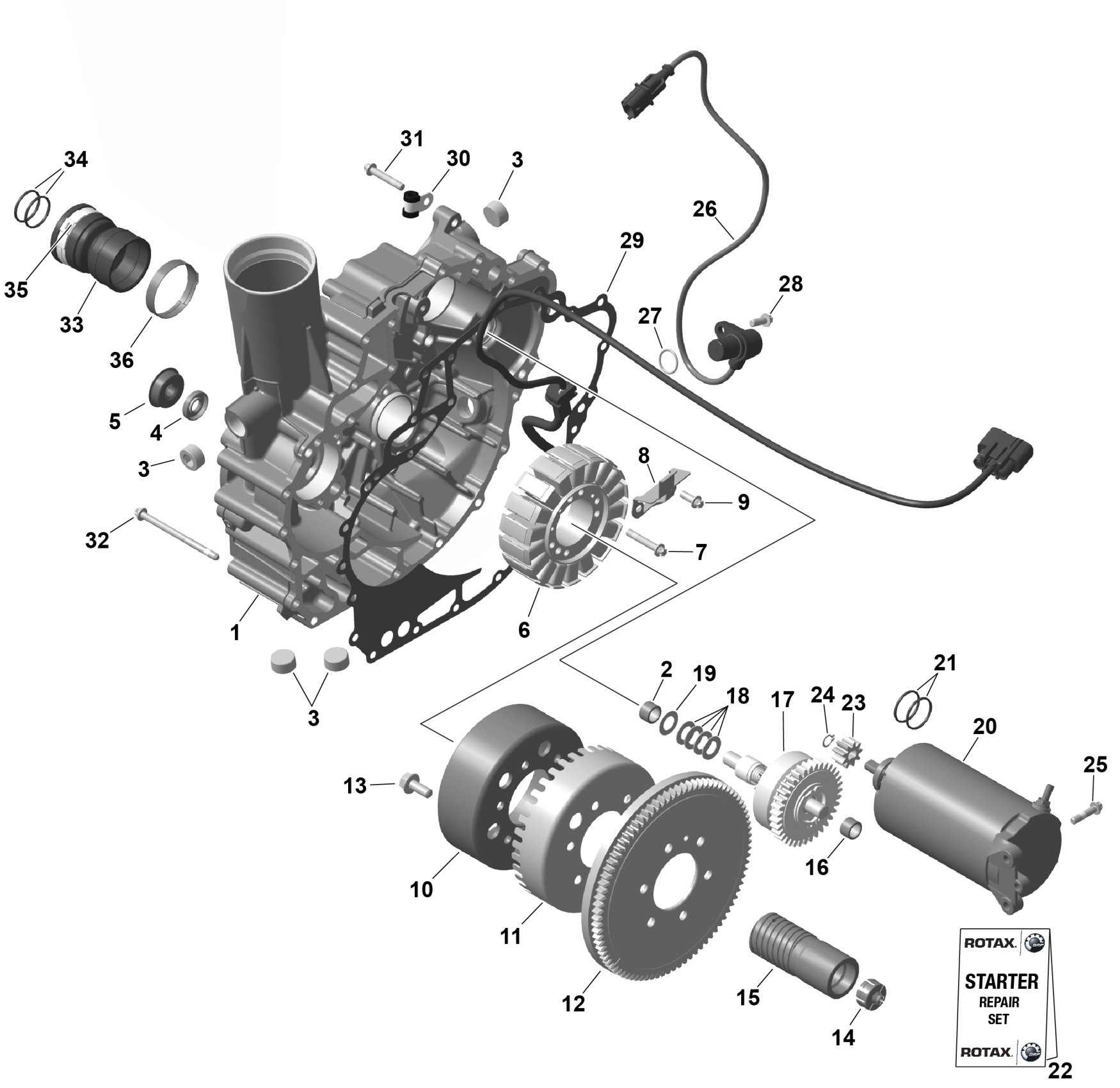

Sea-doo GTI - 130 - STD - 38SC - Bright White, 2025 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes no. 1-5

420910527

$597.73

2

Plug Screw M20 X 1.5

420641317

$12.15

3

Needle Bushing

420232482

$17.88

4

Oil Seal

420650316

$11.04

5

Rotary Seal

420650371

$41.01

6

Stator Plate

420889728

$319.49

7

Torx Flange Screw M6 X 35

420641258

$3.19

8

Retaining Plate

420926303

$1.12

9

Torx Flange Screw M6 X 16

420641048

$2.82

10

Magneto Flywheel

420296900

$461.99

11

Trigger Wheel

420966851

$17.13

12

Starter Gear, 86 Teeth

420835163

$276.84

13

Hex Screw

295501162

$13.16

14

Stop Sleeve

420660280

$12.52

15

Output Sleeve

420947773

$112.66

16

Needle Bushing

420232482

$17.88

17

Starter Drive

420888041

$246.24

18

Spring Disk | Includes no. 18-19

420238307

$26.84

18

Spring Washer

420238300

$7.01

19

Thrust Washer

420827280

$7.90

20

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

21

O-Ring

420631310

$4.15

22

Carbon Brush Set

420881340

$60.42

23

Starter Gear, 9 Teeth

420834522

$68.63

24

Retaining Ring

420845601

$4.28

25

Torx Flange Screw M6 X 25

420641238

$3.07

26

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

27

O-Ring

420431580

$14.10

28

Torx Flange Screw M6 X 16

420641048

$2.82

29

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$22.36

30

Clamp

420853414

$17.13

31

Torx Flange Screw M6 X 35

420641258

$3.19

32

Torx Flange Screw M6 X 85

420641228

$7.01

33

Ball Bearing With Bellows Ass'y | Includes no. 33-35

420832643

$131.31

34

O-Ring

420631612

$4.04

35

Gear Clamp 46.8-50.0MM

420853023

$7.01

36

Gear Clamp

420851653

$7.01
