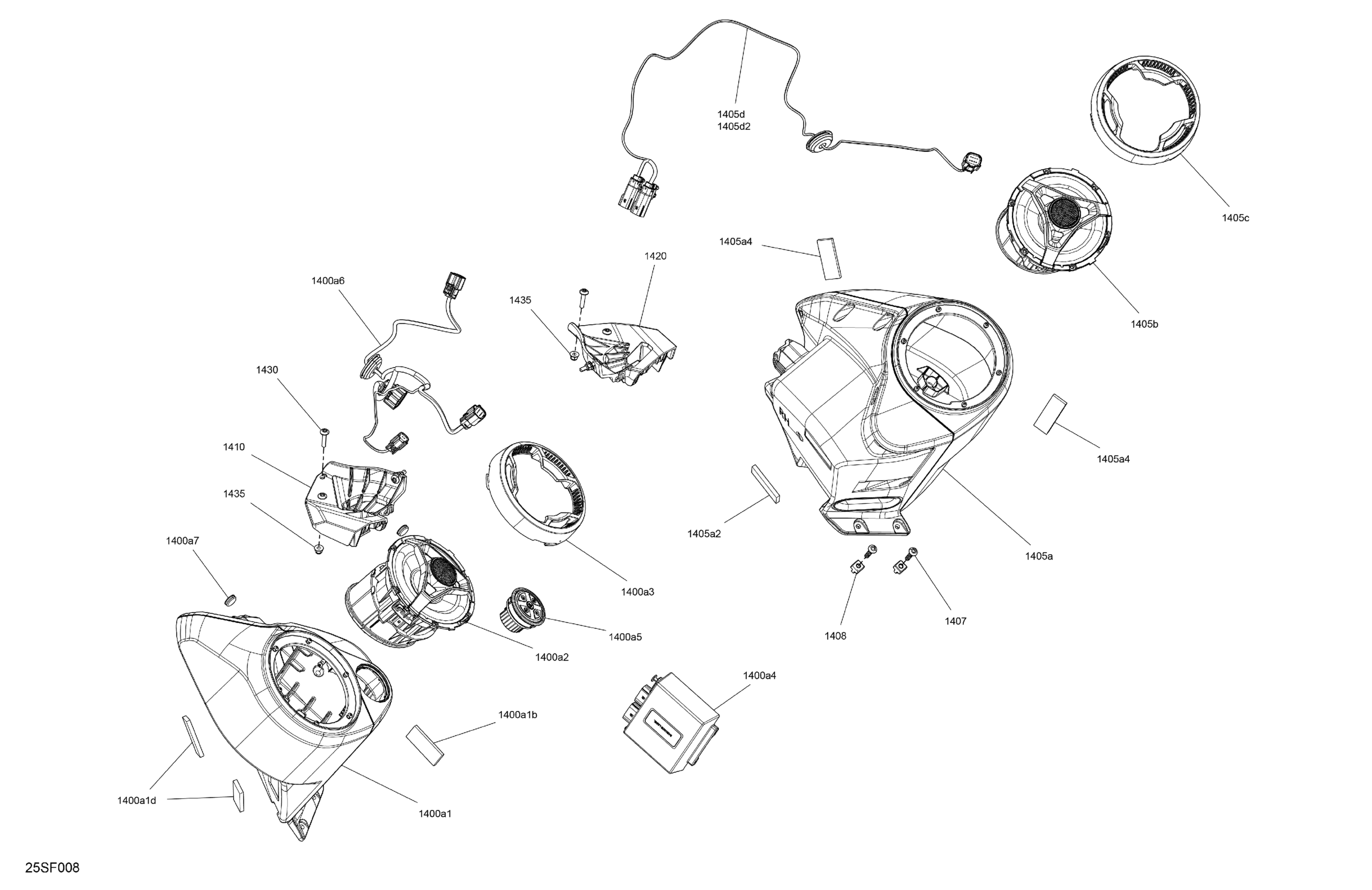

Sea-doo GTI - 130 - SE - 29TB - Teal Blue Metalic - Audio, 2026 Electric - Audio System Diagram

Description

Price

1400a1

LH Speaker Enclosure | Includes 1400a1 to 1400a1d

278003876

$328.49

1400a1b

Stopper

278003860

$0.76

1400a1d

Stopper

278003860

$0.76

1400a2

Speaker

278003463

$153.49

1400a3

Speaker Grille

278003466

$16.34

1400a4

Amplifier

278003464

$465.99

1400a5

Audio Control

278003465

$381.49

1400a6

Amplifier & LH Speaker Harness

278003758

$85.99

1400a7

Black, Cap

277000203

$9.39

1405a

RH Speaker Enclosure | Includes 1405a to 1405a4

278003877

$328.49

1405a2

Stopper

278003860

$0.76

1405a4

Stopper

278003860

$0.76

1405b

Speaker

278003463

$153.49

1405c

Speaker Grille

278003466

$16.34

1405d

RH Harness Speaker | Includes 1405d to 1405d2

278003759

$20.99

1405d2

Housing 6 Circuits

278003866

$13.75

1407

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

1408

Insert

291003793

$3.56

1410

LH Bracket

278003766

$13.49

1420

RH Bracket

278003768

$13.49

1430

Truss Cone Torx Screw M6 X 30

250000924

$7.51

1435

Nut Flange Elastic M6

233261200

$0.99
