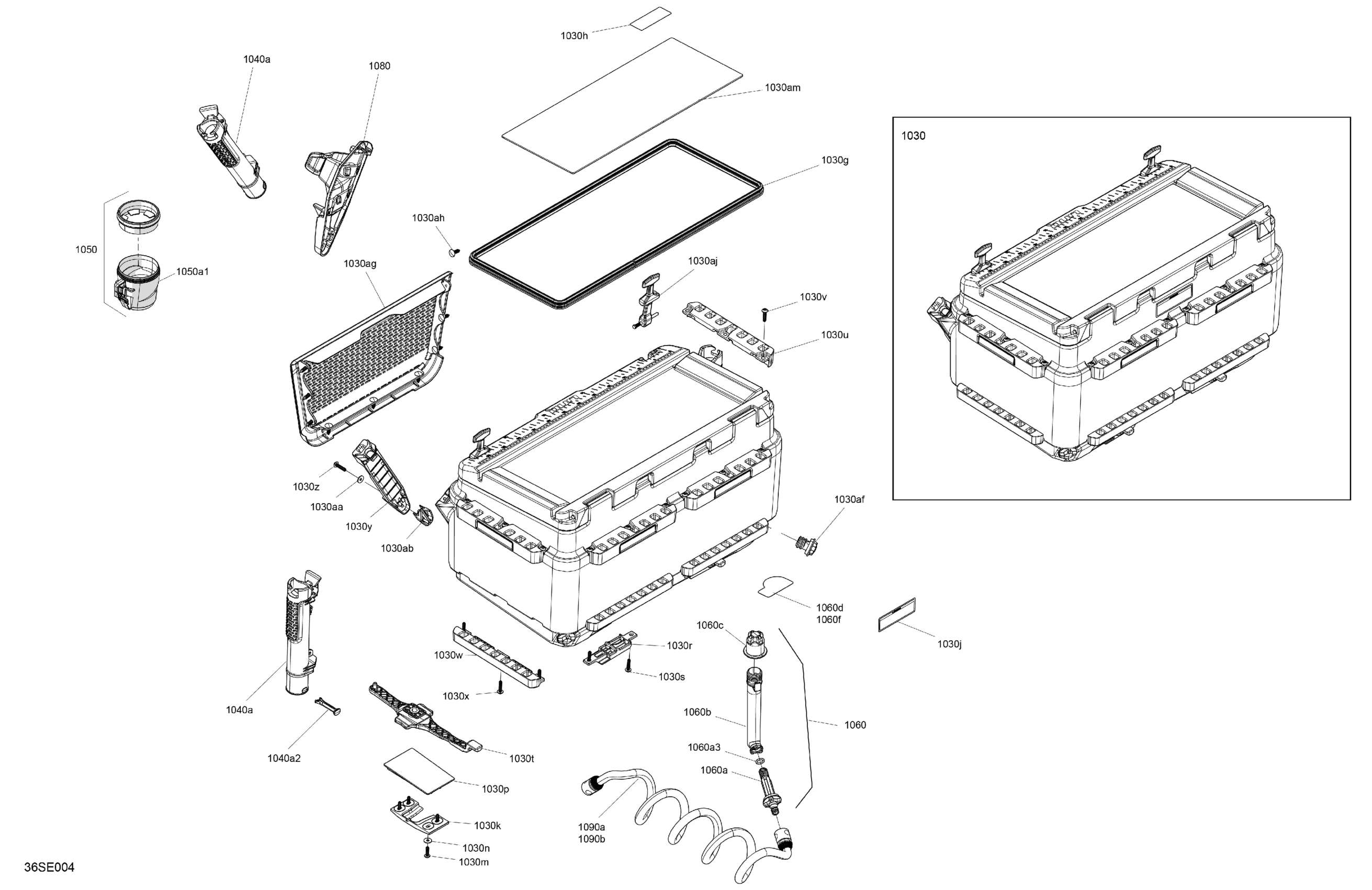

Sea-doo FISH PRO TROPHY - 170 - Fish - 19SA - Flint Grey - Audio, 2025 Miscellaneous - Utilities Diagram

Description

Price

1030

Cooler Ass'y | Includes 1030 to 1030am

269801151

$794.75

1030g

Cover Gasket

269801261

$43.25

1030h

Warning Decal

219905522

Unavailable

1030j

Warning Decal

219905521

Unavailable

1030k

Under Cargo Anchorage

269800824

$7.21

1030m

Torx Screw Plastite M6

250000466

$6.45

1030n

Flat Washer M6, Stainless

234062600

$0.73

1030p

Cooler Reinforcement

269800832

$9.91

1030r

Plate Stop

269800825

$17.88

1030s

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

1030t

Lever Latch

269800826

$27.58

1030u

Upper Rail

269800827

$8.75

1030v

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

1030w

Lower Rail

269800830

$8.75

1030x

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

1030y

Front Upper Rail

269800831

$8.75

1030z

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

1030aa

Stainless Steel Flat Washer

234062670

$2.00

1030ab

Front Lower Rail

269800848

$8.75

1030af

Drain Plug Ass'y

269800833

$26.09

1030ag

Net Cargo

269800829

$79.07

1030ah

Black Dart

293730083

$4.28

1030aj

Lid Latch

520002067

$6.49

1030am

Anti Slip Mat

269800828

$28.33

1040a

Orange Crush, Rod Holder Ass'y | Includes 1040a to 1040a2

269801239

$43.64

1040a2

Rod Stopper

269800838

$4.42

1050

Orange Crush, Cup Holder Support KIt | Includes 1050 to 1050a1

269801449

$36.54

1050a1

Cup Holder Kit

295101230

$40.27

1060

Livewell Kit

269801483

$38.49

1060a

Livewell Kit

269801483

$38.49

1060a3

Livewell Kit

269801483

$38.49

1060b

Livewell Kit

269801483

$38.49

1060c

Livewell Kit

269801483

$38.49

1060d

Vivier Fillin Label Notice

219906005

Unavailable

1060f

Vivier Drain Label Notice

219906006

Unavailable

1080

Accessory Support Kit

269801231

$34.30

1090a

Filler Neck Hose

269801048

$75.34

1090b

Garden Hose Adapter

293710217

$14.64

1110a

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85
