02- Electric - Main Harness - 278004461

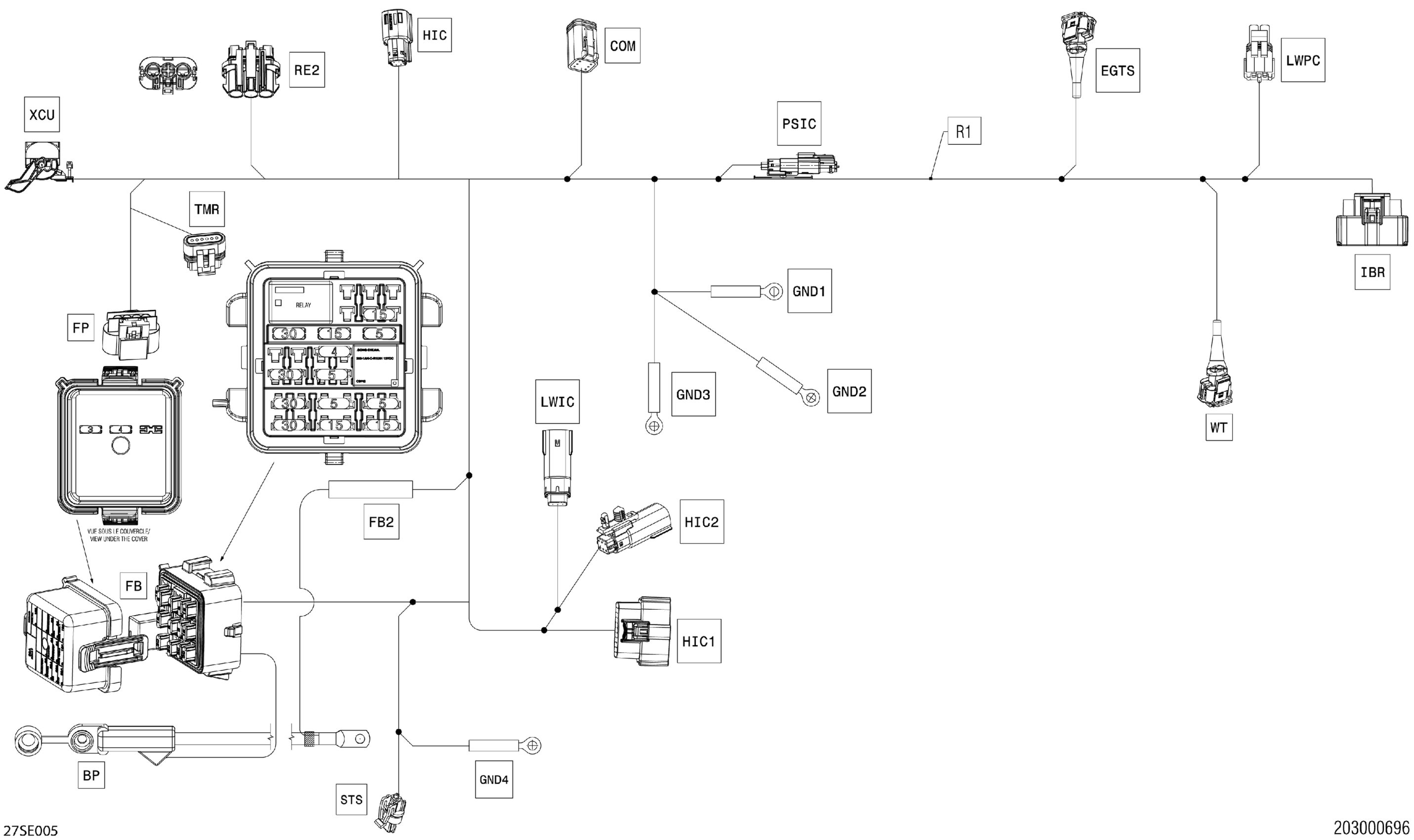

Sea-doo International - FISH PRO TROPHY - 170 - Fish - 19SB - Flint Grey - Audio, 2025 02- Electric - Main Harness - 278004461 Diagram
#
1000
Main Wiring Harness
278004461
$739.99
BP
Battery Cable
278004036
$71.99
COM
Female Housing 6 Circuits
710002706
$20.49
COM
Lock
710002705
$4.44
COM
Female Terminal
710005438
$4.29
COM
Female Terminal
710005439
$4.44
EGTS
Housing
710001136
$13.22
EGTS
Seal
415128501
$1.89
EGTS
Female Terminal
710001137
$4.55
FB
Fuse Cover
278003879
$4.44
FB
Little Fuse, 4 Amps
710007051
$29.49
FB
Little Fuse, 4 Amps
710007051
$29.49
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Fuse Base Ass'y
278003448
$31.99
FB
Seal Plug
278002880
$7.86
FB
Relay 30 Amp
278003828
$13.99
FB
Relay
715900824
$21.99
FB
Wire Seal
278000218
$4.39
FB
Wire Seal
710000048
$7.69
FB
Wire Seal
278001065
$7.69
FB
Female Terminal
710000918
$7.69
FB
Female Terminal
278002578
$1.04
FB
Female Terminal
515177177
$6.49
FB2
50A Fuse
710007318
$25.49
FB2
Fuse Holder Support
710007204
$11.07
FB2
Elastic Stop Nut M5
232551414
$0.87
FB2
Terminal Ring
515177799
$9.49
FB2
Phillips Screw M5 X 12 | Not Shown
208651200
$1.99
FP
Male Housing, 4 Circuits
278002185
$7.90
FP
Lock
710001222
$2.09
FP
Wire Seal
278002186
$5.50
FP
Female Terminal
278002187
$6.39
GND1
Open Barrel
278000992
$2.21
GND2
Open Barrel Terminal
278001392
$4.79
GND3
Open Barrel Terminal
278001392
$4.79
GND4
Open Barrel
278000992
$2.21
HIC
Female Housing, 4 circuits
278003535
$25.99
HIC
Female Terminal
515178018
$1.19
HIC1
Female Housing 20 Circuits
278002858
$22.49
HIC1
Sealing Cap
278002860
$1.79
HIC1
Female Terminal
515178018
$1.19
HIC1
Female Terminal
515178014
$2.39
HIC2
Clip Connector
515178223
$2.09
HIC2
Housing 6 Circuits
278003866
$13.75
HIC2
Male Terminal
515178013
$3.19
IBR
Female Housing ,16 Circuits
278003484
$17.59
IBR
Seal Plug
278002880
$7.86
IBR
Sealing Cap
278002860
$1.79
IBR
Seal
278003046
$0.92
IBR
Female Terminal
278003045
$2.99
IBR
Female Terminal
515178018
$1.19
LWIC
Housing
515178023
$14.74
LWIC
Male Terminal
515178013
$3.19
LWPC
Male Connector, 2 Circuits
278000220
$15.49
LWPC
Wire Seal
278000218
$4.39
LWPC
Female Terminal
409007300
$0.45
PSIC
Clip
278003549
$2.29
PSIC
Housing
515178023
$14.74
PSIC
Housing
515178954
$35.99
PSIC
Sealing Cap
278002860
$1.79
PSIC
Male Terminal
515178013
$3.19
R1
Shrink Tubing, 6 mm
515177246
$1.04
R1
Resistor
710000700
$31.99
RE2
Female Housing, 3 Circuits
710000879
$25.99
RE2
Seal
710001932
$3.27
RE2
Seal
278003685
$16.79
RE2
Terminal
710001934
$5.50
STS
Female Housing, 2 Circuits
515177192
$9.12
STS
Wire Seal
710001163
$7.69
STS
Female Terminal
710001164
$8.89
TMR
Female Terminal Housing 6 Circuits
278002299
$9.10
TMR
Plug
515175812
$2.19
TMR
Female Terminal
278001114
$3.19
WT
Housing
710001136
$13.22
WT
Seal
415128501
$1.89
WT
Female Terminal
710001137
$4.55
XCU A
Cover
515178601
$18.49
XCU A
Housing 56 Circuits
515178595
$29.49
XCU A
Plate
515178604
$4.59
XCU A
Plug
515178599
$3.17
XCU A
Plug
515178600
$3.17
XCU A
Plate
515178603
$4.59
XCU A
Terminal
515178596
$3.72
XCU A
Terminal
515178598
$3.61
XCU A
Terminal
515178666
$4.55
