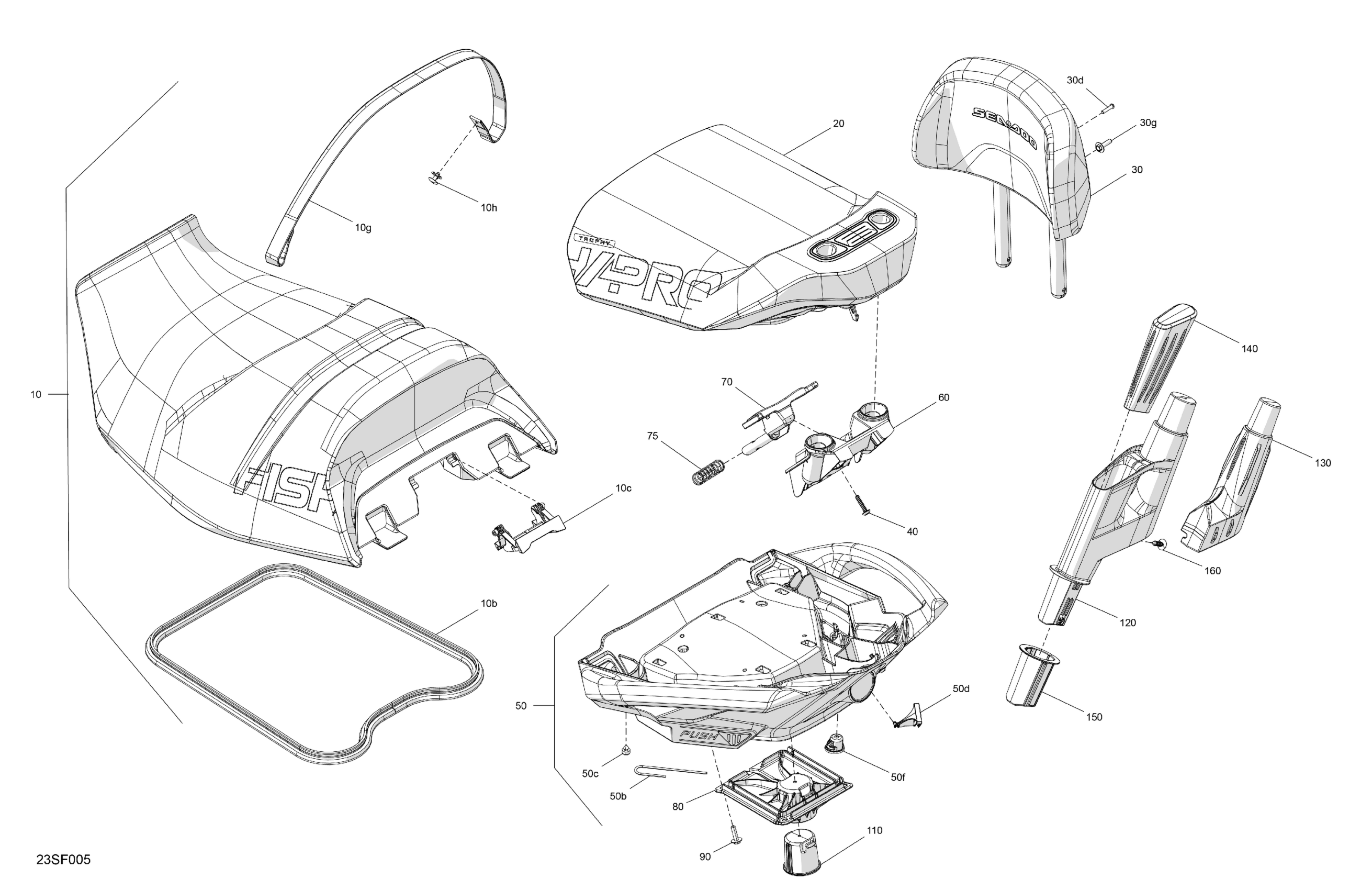

Sea-doo FISH PRO TROPHY - 170 - 19TB - Flint Grey - Audio, 2026 Body - Seat Diagram

Coastal Grey, Driver Seat Ass'y | Includes 10 to 10h

269003631

$389.32

Was 293200062 Seal

219704366

$61.72

Seat Latch

269003103

$5.85

Swift Silver, Seat Strap

269003744

$38.03

Rivet | Model-T3

293150067

$2.29

Orange Crush, Passenger Seat Ass'y

269003615

$336.67

Removable Passenger Backrest Ass'y | Includes 30 to 30g

269003642

$261.16

Plastite Torx Screw #10 X 7/8"

250001196

$3.19

Hexagonal Cap Screw M6 X 25

250000978

$3.61

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Ash Grey, Rear Handle Ass'y | Includes 50 to 50f

269004207

$429.99

Spring Latch

269003083

$15.57

Rubber Bumper

293830005

$5.33

Handle Trim

269004163

$3.63

Stud Receiver

269003085

$4.76

Base Latch

269003709

$15.64

Overmolded Backrest Latch

269003708

$12.18

Compression Spring

269003782

$14.27

Upper Seat Anchorage

269003673

$36.37

Hexagonal Cap Screw M6 X 25

250000978

$3.61

Upper Wear Ring

269003634

$5.86

Central Seat Support

269003674

$53.27

Lower Float

269003694

$3.13

Upper Float

269003756

$21.42

Lower Wear Ring Ass'y

291005700

$13.62

Black, Dart

293730006

$0.81
