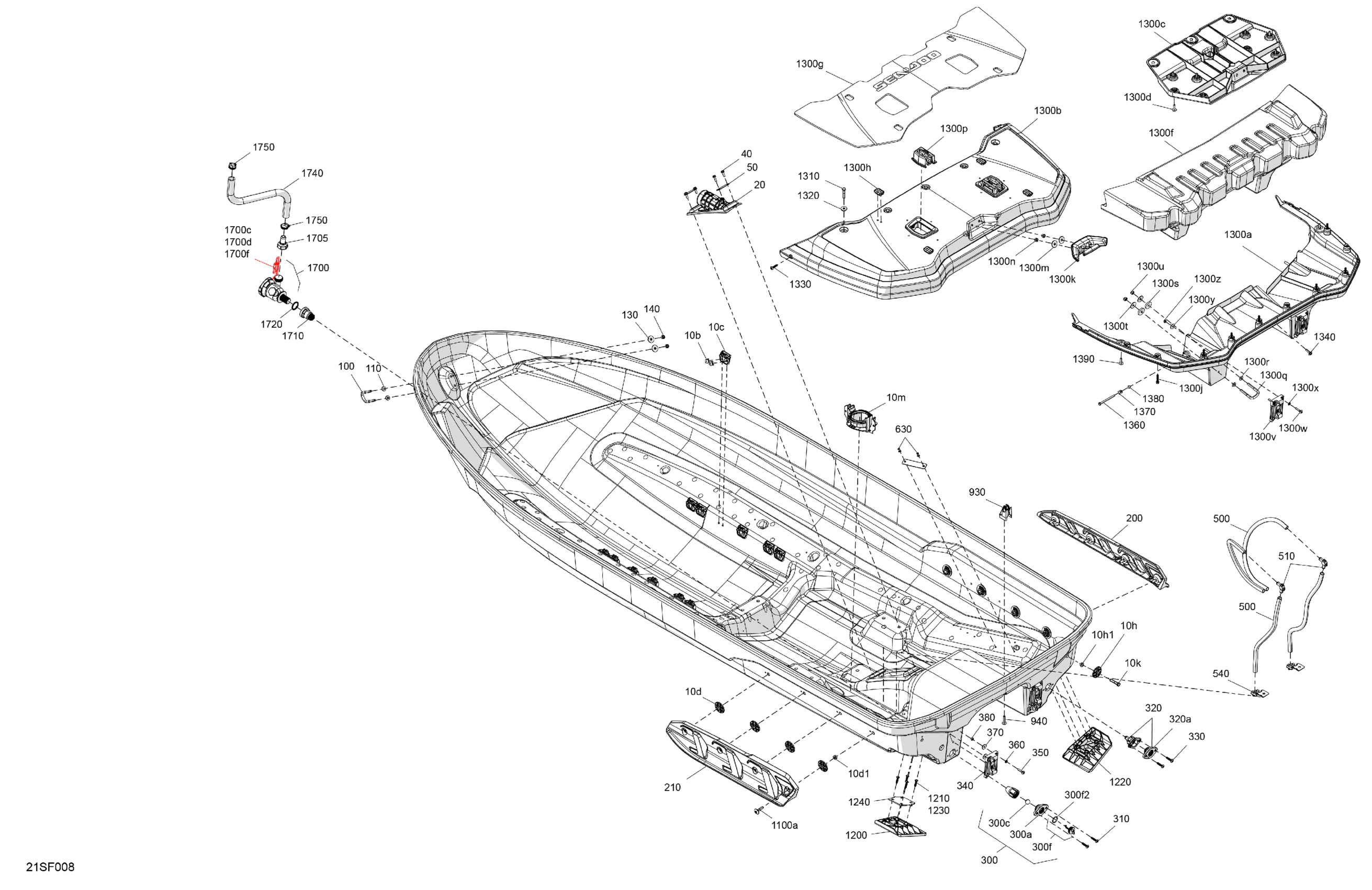

Sea-doo FISH PRO TROPHY - 170 - 19TB - Flint Grey - Audio, 2026 Body - Hull Diagram

Rivet | Model-T3

293150067

$2.29

Strap Retaining

270000933

$5.47

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

Hex. Flange Nut M8

233181600

$0.86

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

Hex. Flange Nut M8

233181600

$0.86

Hex. Flange Screw M8 X 25

207682544

$0.90

Transducer Support

292002128

$6.99

Through Hull Fitting

293450409

$27.27

Hex. Flange Screw M6.81 x 20

243162060

$3.30

Reinforcement

291004907

$1.86

U-Clamp

292000933

$32.47

Flat Washer M8.5 x 18

293050001

$1.29

Flat Washer 8 mm, Stainless

250200175

$1.29

Hex. Elastic Nut M8 Brass

232581200

$1.29

RH Sponson

292001953

$53.27

LH Sponson

292001954

$63.67

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

Unavailable

Through Hull Fitting

292002765

$6.08

Floating Ball

293830080

$5.56

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

O-Ring

293300067

$0.85

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$9.30

Through Hull Fitting

292002765

$6.08

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

Ladder Trim Fastener

292002697

$6.59

Truss Cone Torx Screw M6 X 30

250000924

$6.15

Stainless Flat Washer M6

234061600

$0.25

Flat Washer M6.6 X 22

250200022

$1.87

Elastic Stop Nut M6, Brass

232561200

$3.51

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

Fitting Elbow 90°

293710152

$14.92

Plate

292002935

$11.00

Avdel Rivet 3/16"

293150037

$0.47

Strap Anchor

270000988

$8.46

Hexagonal Cap Screw M6 X35

250000399

$3.61

LH Trim Tab

292002102

$14.27

Hexagonal Cap Screw M6 X 25

250000978

$3.61

RH Trim Tab

292002103

$14.27

Hexagonal Cap Screw M6 X 25

250000978

$3.61

Gasket

277002171

$3.48

Hull Extension

292002138

$154.67

Platform_Swim

292003238

$129.20

Black, Body Extension Reinforcement

292002528

$55.35

Hexagonal Cap Screw M6.8 X 25

250001070

$3.06

Extension Float

292002529

$90.32

Anti Slip Mat

292003239

$115.35

Rubber Stopper

292003232

$7.60

Plastite Hex. Screw M6.8 X 35

243163560

$3.61

Cleat

291004597

$19.47

Flat Washer 8 mm, Stainless

250200175

$1.29

Hex. Elastic Nut M8 Brass

232581200

$1.29

Linq Bases Kit

295100858

$21.42

U-Clamp

292000933

$32.47

Flat Washer M8.5 x 18

293050001

$1.29

Rubber Washer

293830037

$2.75

Flat Washer 8 mm, Stainless

250200175

$1.29

Hex. Elastic Nut M8 Brass

232581200

$1.29

Ladder Trim Fastener

292002697

$6.59

Truss Cone Torx Screw M6 X 30

250000924

$6.15

Stainless Flat Washer M6

234061600

$0.25

Flat Washer M6.6 X 22

250200022

$1.87

Elastic Stop Nut M6, Brass

232561200

$3.51

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

Flat Washer

279000336

$8.35

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Hexagonal Cap Screw M6.8 X 25

250001070

$3.06

Hex. Screw M6 x 80

207068060

$1.99

Stainless Flat Washer M6

234061600

$0.25

Elastic Stop Nut M6, Brass

232561200

$3.51

Hexagonal Cap Screw M6.8 X 25

250001070

$3.06

Pump Ass'y - Use with 278004609 | Includes 1700 to 1700f

278004608

$87.72

Female Housing, 2 Circuits

278000217

$7.59

Male Terminal

409004300

$5.46

Wire Seal

278000218

$3.48

Straight Pipe Fitting - Use with 278004608

278004609

$8.28

Specialized Nut

292002522

$4.98

Seal X-Ring

293250573

$7.70

Formed Water Pump Hose

269801047

$26.62

Tridon Gear Clamp

293650019

$4.81

Torx Head Screw M8 X 35

250001215

$4.84
