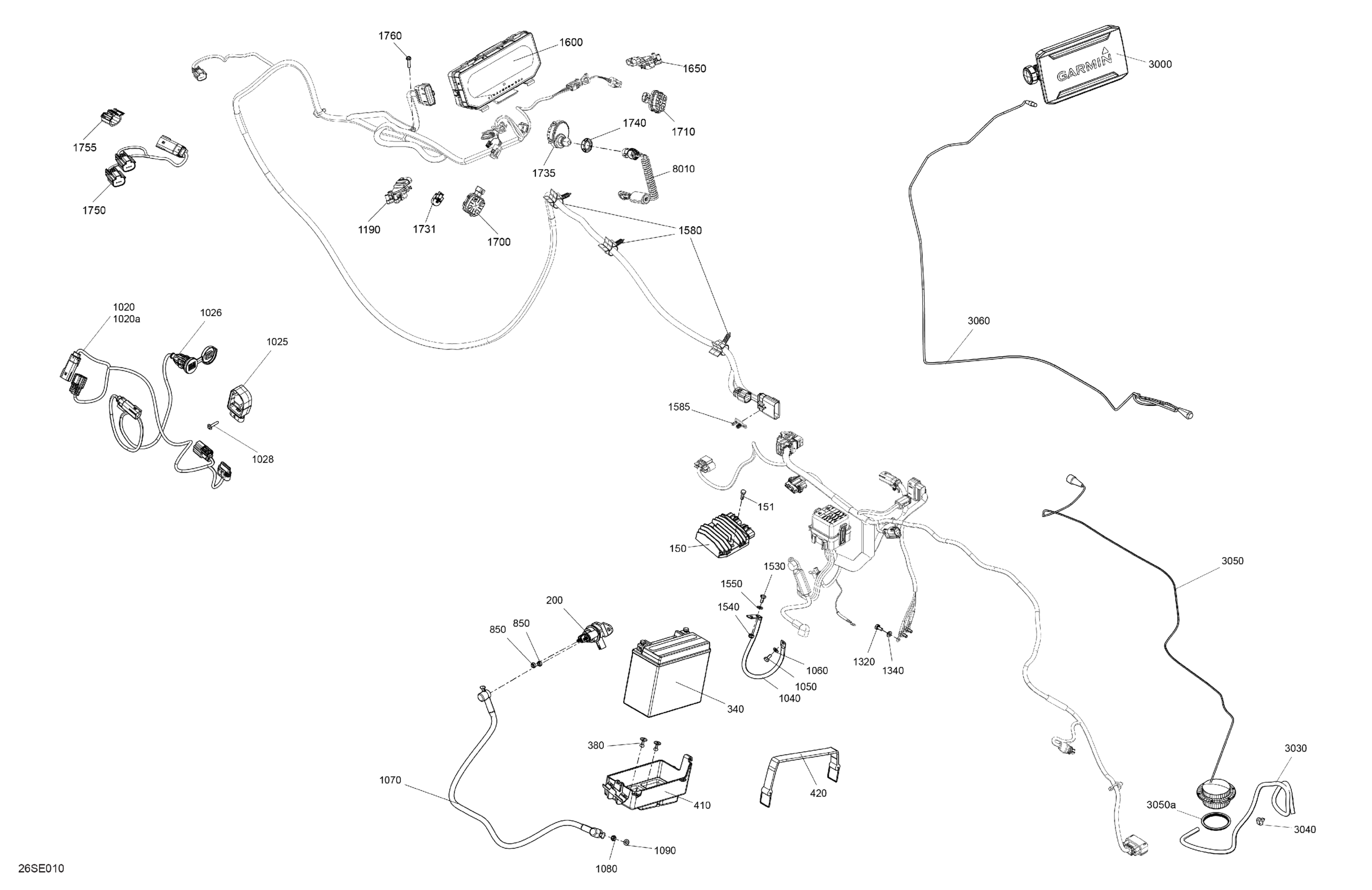

Sea-doo FISH PRO SPORT - 170 - Fish - 18SB - Bright White - Audio, 2025 Electric - System Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

151

Hex. Flange Screw K50 X 25

250000680

$1.67

200

Starter Relay

278003012

$40.27

340

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

380

Pop Rivet 3/16"

293150123

$3.94

410

Battery Support

278003473

$26.09

420

Fuel Tank Strap

293850095

$16.39

850

Elastic Stop Nut M6, Brass

232561200

$4.03

1020

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$149.99

1020a

Connector USB wih Cable

710005857

$38.78

1025

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$149.99

1026

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$149.99

1028

Hexagonal Cap Screw M6 X35

250000399

$4.15

1040

Ground Battery Cable

278003451

$35.79

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1060

Stainless Flat Washer M6

234061600

$0.28

1070

Starter Cable

278003369

$35.79

1080

Elastic Stop Nut M6, Brass

232561200

$4.03

1090

Stainless Flat Washer M6

234061600

$0.28

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1340

Stainless Flat Washer M6

234061600

$0.28

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1540

Elastic Stop Nut M6, Brass

232561200

$4.03

1550

Stainless Flat Washer M6

234061600

$0.28

1580

Retainer

278003564

$6.57

1585

Connector Support

515179692

$1.87

1600

Full Size Multifunction Mono Gauge

278003432

$729.07

1650

Throttle Position Sensor

278002283

$104.99

1700

Switch

278003821

$116.39

1710

RH Switch Keypad

278003474

$116.39

1731

Start/Stop Switch This part replaces 296000440.

296000440

$49.22

1735

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

1740

Specialized Nut

278004274

$3.12

1750

Multiple Accessory Harness

278003684

$47.73

1755

Connectors Support

278003734

$2.72

1760

Hex. Screw 10-14 X 7/8”

211000023

$3.34

3000

GPS Receiver

278004373

$1,074.99

3030

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

3040

Mount Dart

710008294

$0.99

3050

Transducer | Includes 3000 to 3000a

295100972

$349.99

3050a

Seal

292002447

$3.01

3060

Transducer Harness

278003683

$99.22

8010

Safety Lanyard Ass'y, RFID

278003400

$67.13
