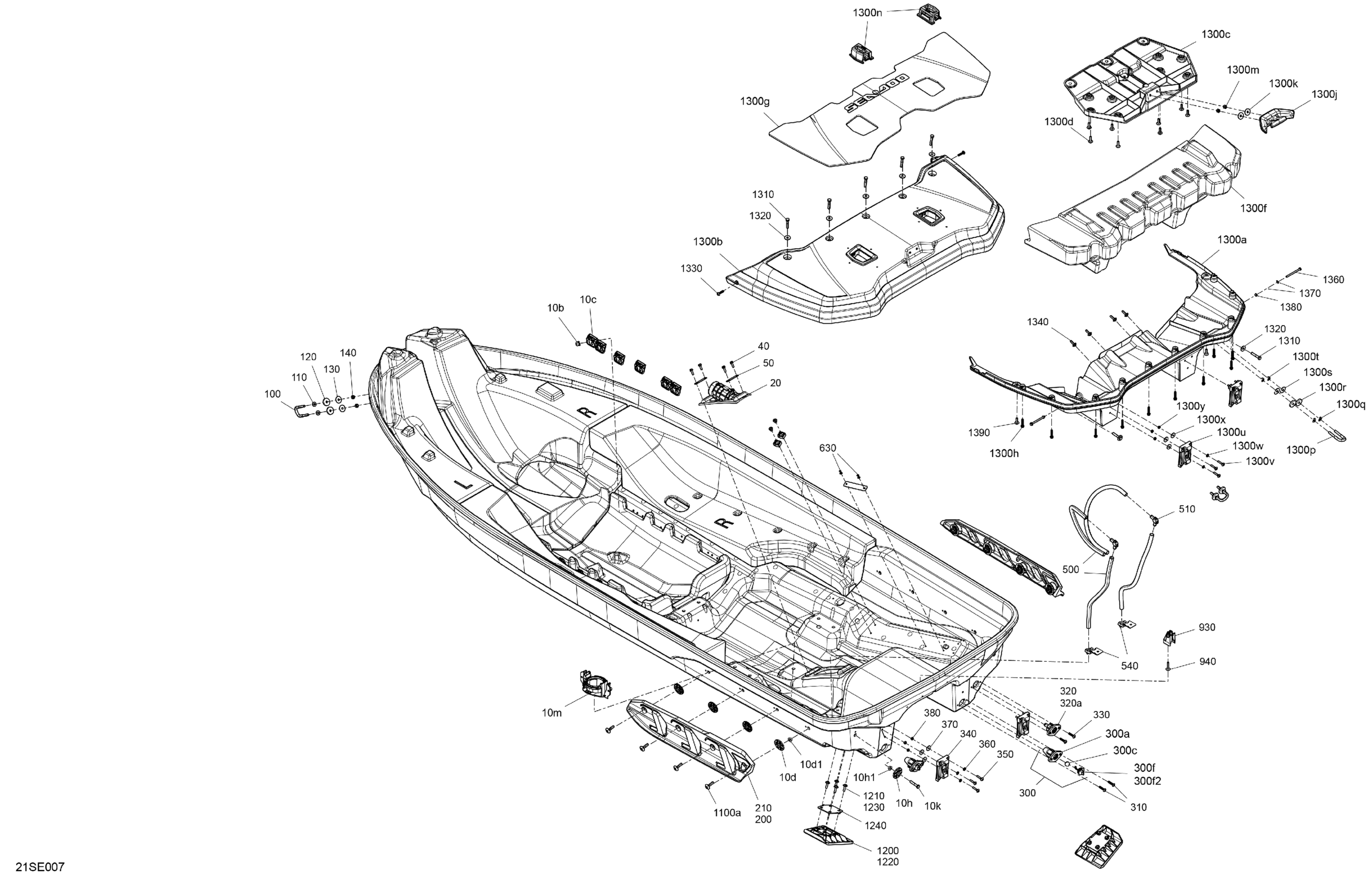

Sea-doo FISH PRO SPORT - 170 - Fish - 18SB - Bright White - Audio, 2025 Body - Hull Diagram

#

Description
Price

10b

Rivet | Model-T3

293150067

$2.63

10c

Strap Retaining

270000933

$6.28

10d

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$6.58

10d1

Hex. Flange Nut M8

233181600

$0.99

10h

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$6.58

10h1

Hex. Flange Nut M8

233181600

$0.99

10k

Hex. Flange Screw M8 X 25

207682544

$1.03

10m

Transducer Support

292002128

$8.03

20

Through Hull Fitting

293450409

$31.31

40

Hex. Flange Screw M6.81 x 20

243162060

$3.79

50

Reinforcement

291004907

$2.13

100

U-Clamp

292000933

$37.28

110

Flat Washer M8.5 x 18

293050001

$1.48

120

Rubber Washer

293830037

$2.68

130

Flat Washer 8 mm, Stainless

250200175

$1.48

140

Hex. Elastic Nut M8 Brass

232581200

$1.48

200

RH Sponson

292001953

$54.99

210

LH Sponson

292001954

$65.99

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$12.63

300a

Through Hull Fitting

292002765

$6.99

300c

Floating Ball

293830080

$6.39

300f

Plug Ass'y | Includes 300f to 300f2

292002022

$12.79

300f2

O-Ring

293300067

$0.97

310

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

320

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$10.67

320a

Through Hull Fitting

292002765

$6.99

330

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

340

Ladder Trim Fastener

292002697

$7.57

350

Truss Cone Torx Screw M6 X 30

250000924

$7.06

360

Stainless Flat Washer M6

234061600

$0.28

370

Flat Washer M6.6 X 22

250200022

$2.15

380

Elastic Stop Nut M6, Brass

232561200

$4.03

500

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$6.82

510

Fitting Elbow 90°

293710152

$17.13

540

Plate

292002935

$12.63

630

Avdel Rivet 3/16"

293150037

$0.54

930

Strap Anchor

270000988

$8.06

940

Hexagonal Cap Screw M6 X35

250000399

$4.15

1100a

Torx Head Screw M8 X 35

250001215

$5.55

1200

LH Trim Tab

292002102

$16.39

1210

Hexagonal Cap Screw M6 X 25

250000978

$4.15

1220

RH Trim Tab

292002103

$16.39

1230

Hexagonal Cap Screw M6 X 25

250000978

$4.15

1240

Gasket

277002171

$4.00

1300a

Hull Extension

292002138

$177.58

1300b

Black, Body Extension

292002580

$122.36

1300c

Black, Body Extension Reinforcement

292002528

$50.72

1300d

Hexagonal Cap Screw M6.8 X 25

250001070

$3.51

1300f

Extension Float

292002529

$103.70

1300g

Extension Carpet

292002210

$110.42

1300h

Plastite Hex. Screw M6.8 X 35

243163560

$4.15

1300j

Cleat

291004597

$22.36

1300k

Flat Washer 8 mm, Stainless

250200175

$1.48

1300m

Hex. Elastic Nut M8 Brass

232581200

$1.48

1300n

Linq Bases Kit

295100858

$24.60

1300p

U-Clamp

292000933

$37.28

1300q

Flat Washer M8.5 x 18

293050001

$1.48

1300r

Rubber Washer

293830037

$2.68

1300s

Flat Washer 8 mm, Stainless

250200175

$1.48

1300t

Hex. Elastic Nut M8 Brass

232581200

$1.48

1300u

Ladder Trim Fastener

292002697

$7.57

1300v

Truss Cone Torx Screw M6 X 30

250000924

$7.06

1300w

Stainless Flat Washer M6

234061600

$0.28

1300x

Flat Washer M6.6 X 22

250200022

$2.15

1300y

Elastic Stop Nut M6, Brass

232561200

$4.03

1310

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

1320

Flat Washer

279000336

$9.58

1330

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

1340

Hexagonal Cap Screw M6.8 X 25

250001070

$3.51

1360

Hex. Screw M6 x 80

207068060

$2.28

1370

Stainless Flat Washer M6

234061600

$0.28

1380

Elastic Stop Nut M6, Brass

232561200

$4.03

1390

Hexagonal Cap Screw M6.8 X 25

250001070

$3.51
