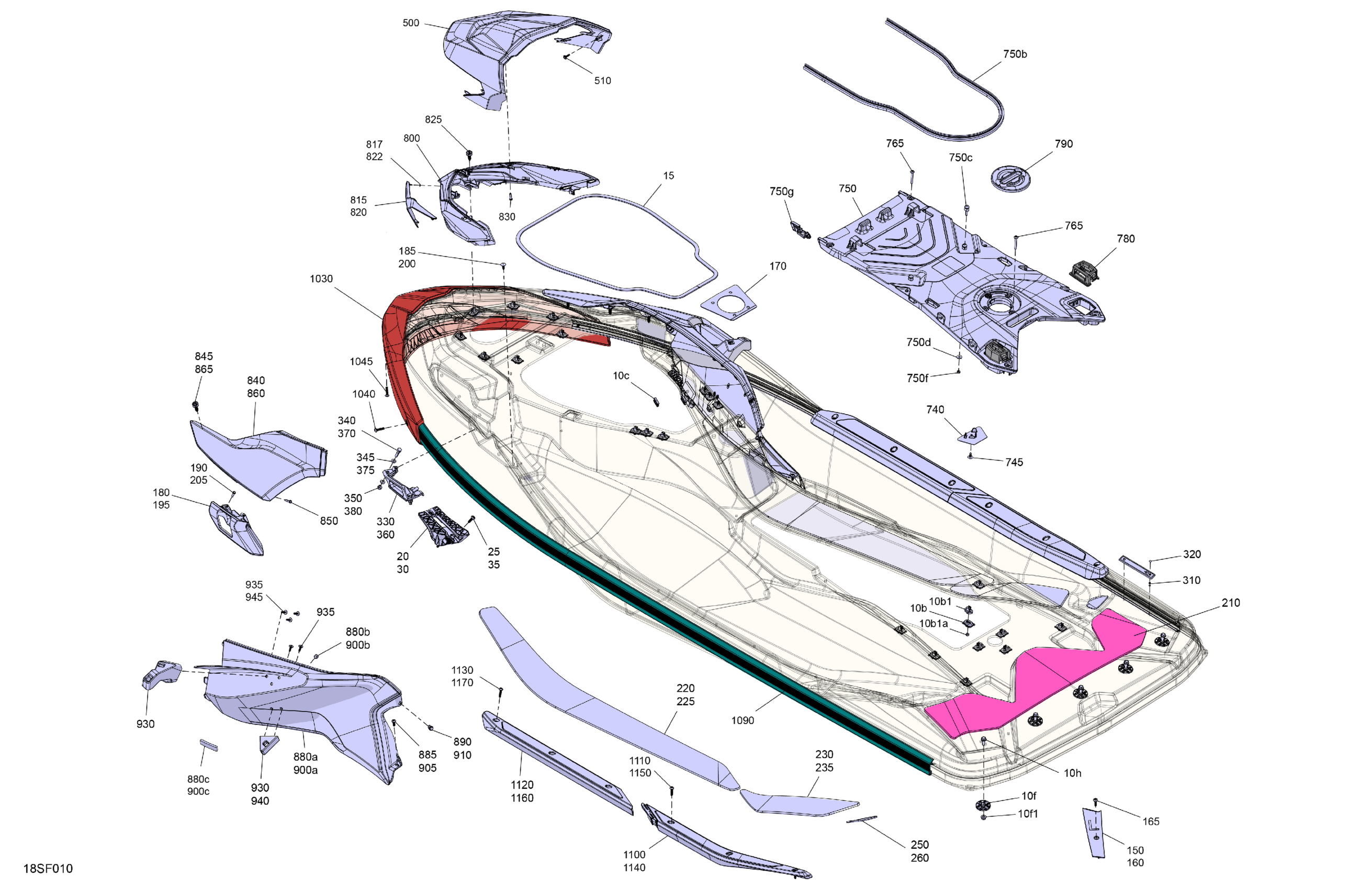

Sea-doo FISH PRO SPORT - 170 - 18TB - Bright White - Audio, 2026 Body - System Diagram

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$1.87

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.61

Elastic Stop Nut M6, Brass

232561200

$3.51

Anchorage Tie Wrap

293750109

$0.99

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

Hex. Flange Nut M8

233181600

$0.86

Hex. Flange Screw M8 X 25

207682544

$0.90

Gasket

293250401

$8.80

LH Support

291004714

$7.15

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

RH Support

291004715

$7.87

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

LH Shim

291005176

$13.52

RH Shim

291005177

$11.78

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

Gasket

293250451

$19.47

LH Shell Cleat

291004661

$7.15

Black, Dart

293730011

$0.79

Hex. Screw 10-14 X 7/8”

211000023

$2.91

RH Shell Cleat

291004719

$7.15

Black, Dart

293730011

$0.79

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Deck Anti Slip Mat

291005817

$42.22

Deep Black, LH Front Anti Slip Footrest Mat

291006841

$27.27

Deep Black, RH Front Anti Slip Footrest Mat

291006842

$27.27

LH Rear Anti Slip Mat

291005353

$13.62

RH Rear Anti Slip Mat

291005352

$13.62

LH Anti Slip Mat

291005883

$4.42

RH Anti Slip Mat

291005884

$4.42

Rivet 1/8"

293150016

$0.29

Black, Snap Cap

293000014

$0.85

LH Cleat

291004559

$6.37

Hex. Screw M8 X 35

207083560

$1.40

Stainless, Flat Washer 8 mm

234081600

$0.46

Hex. Elastic Nut M8 Brass

232581200

$1.29

RH Cleat

291004720

$6.37

Hex. Screw M8 X 35

207083560

$1.40

Stainless, Flat Washer 8 mm

234081600

$0.46

Hex. Elastic Nut M8 Brass

232581200

$1.29

Dusty Navy, Hood

291005549

$85.77

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

Hose Protector

291004941

$4.22

Black, Dart

293730011

$0.79

Access Cover Ass'y | Includes 750 to 750g

291006468

$197.73

Was 293200062 Seal

219704366

$61.72

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Seal

291004717

$9.04

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

Linq Bases Kit

295100858

$21.42

Access Cap Ass'y

291004481

$7.15

Front Hood Grille

291005915

$27.92

Gulfstream Blue, LH Trim

291005970

$22.07

Push Nut

250100206

$0.83

Gulfstream Blue, RH Trim

291005971

$22.07

Push Nut

250100206

$0.83

Dard

293730071

$0.90

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Flint Grey, Body Panel Front LH

291005041

$129.32

Dard

293730071

$0.90

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Flint Grey, RH Front Body Panel

291005040

$129.32

Dard

293730071

$0.90

Flint Grey, LH Central Body Panel

291005583

$148.48

Rubber Bumper

293830005

$5.33

Stopper

278003618

$0.70

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.12

Tuflok Plastic Rivet

293150230

$1.21

Flint Grey, RH Central Body Panel

291005584

$148.48

Rubber Bumper

293830005

$5.33

Stopper

278003618

$0.70

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.12

Tuflok Plastic Rivet

293150230

$1.21

LH Rod Holder Top Adapter

295100948

$26.62

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

RH Rod Holder Top Adapter

295100949

$26.62

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

Front Bumper

291004452

$62.37

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

Lateral Bumper

291006726

$129.82

Gulfstream Blue, LH Rear Footrest

291005561

$46.12

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

Gulfstream Blue, LH Front Footrest Ass'y

291005558

$46.12

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

Gulfstream Blue, RH Rear Footrest Ass'y

291005559

$46.12

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

Gulfstream Blue, RH Front Footrest Ass'y

291005560

$46.12

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87
