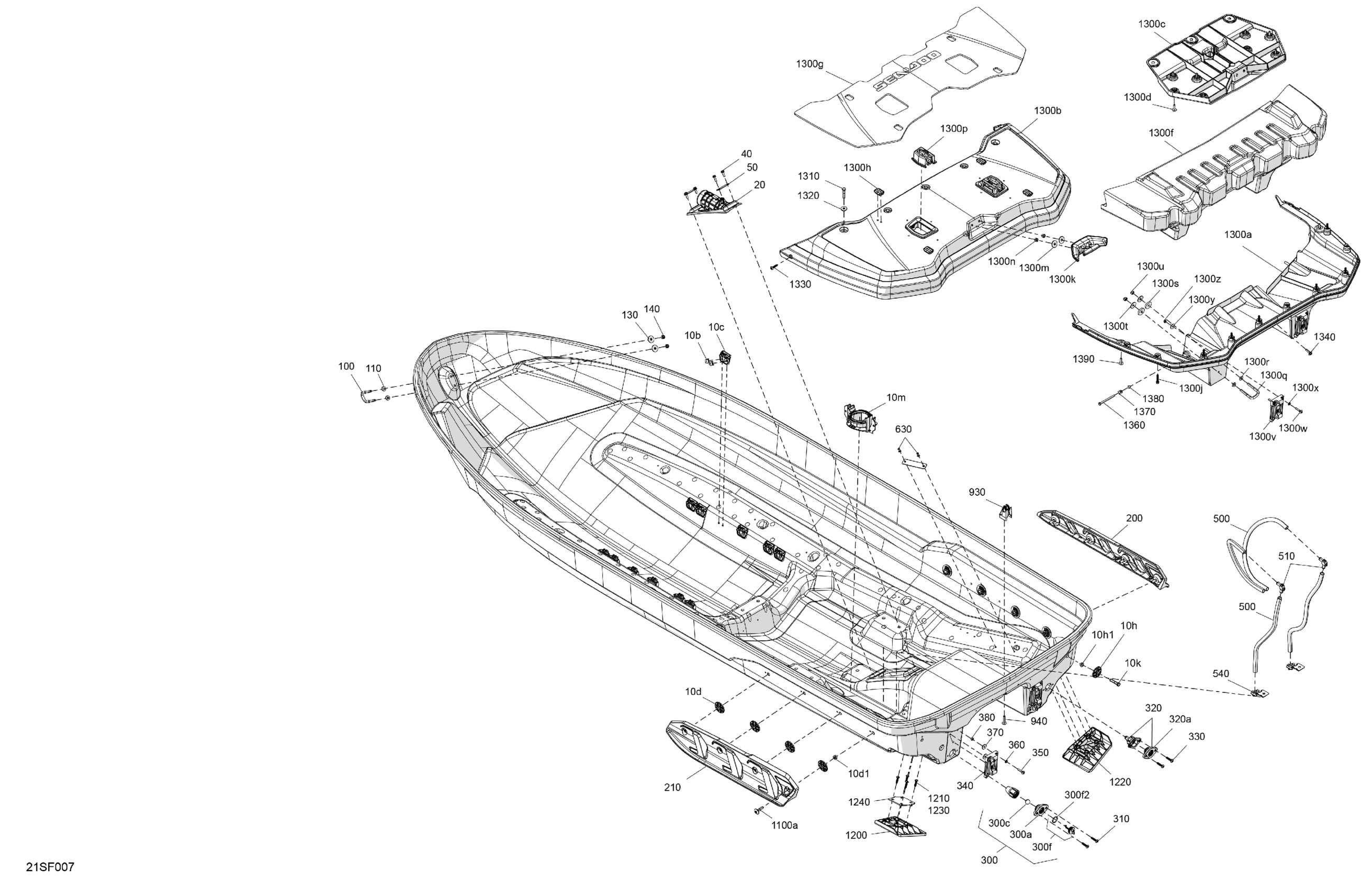

Sea-doo FISH PRO SPORT - 170 - 18TA - Bright White, 2026 Body - Hull Diagram

#

Description
Price

10b

Rivet | Model-T3

293150067

$2.89

10c

Strap Retaining

270000933

$6.99

10d

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

10d1

Hex. Flange Nut M8

233181600

$1.05

10h

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

10h1

Hex. Flange Nut M8

233181600

$1.05

10k

Hex. Flange Screw M8 X 25

207682544

$1.35

10m

Transducer Support

292002128

$9.79

20

Through Hull Fitting

293450409

$34.99

40

Hex. Flange Screw M6.81 x 20

243162060

$3.72

50

Reinforcement

291004907

$2.89

100

U-Clamp

292000933

$59.49

110

Flat Washer M8.5 x 18

293050001

$3.07

130

Flat Washer 8 mm, Stainless

250200175

$3.06

140

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

RH Sponson

292001953

$54.99

210

LH Sponson

292001954

$65.99

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$15.49

300a

Through Hull Fitting

292002765

$7.79

300c

Floating Ball

293830080

$7.19

300f

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

300f2

O-Ring

293300067

$1.04

310

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

320

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$14.49

320a

Through Hull Fitting

292002765

$7.79

330

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

340

Ladder Trim Fastener

292002697

$8.49

350

Truss Cone Torx Screw M6 X 30

250000924

$7.51

360

Stainless Flat Washer M6

234061600

$0.33

370

Flat Washer M6.6 X 22

250200022

$2.72

380

Elastic Stop Nut M6, Brass

232561200

$4.23

500

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

510

Fitting Elbow 90°

293710152

$18.49

540

Plate

292002935

$15.49

630

Avdel Rivet 3/16"

293150037

$0.56

930

Strap Anchor

270000988

$10.28

940

Hexagonal Cap Screw M6 X35

250000399

$4.44

1200

LH Trim Tab

292002102

$18.49

1210

Hexagonal Cap Screw M6 X 25

250000978

$4.44

1220

RH Trim Tab

292002103

$18.49

1230

Hexagonal Cap Screw M6 X 25

250000978

$4.44

1240

Gasket

277002171

$4.33

1300a

Hull Extension

292002138

$199.99

1300b

Platform_Swim

292003238

$139.99

1300c

Black, Body Extension Reinforcement

292002528

$56.99

1300d

Hexagonal Cap Screw M6.8 X 25

250001070

$3.89

1300f

Extension Float

292002529

$114.99

1300g

Anti Slip Mat

292003239

$121.49

1300h

Rubber Stopper

292003232

$8.79

1300j

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

1300k

Cleat

291004597

$24.99

1300m

Flat Washer 8 mm, Stainless

250200175

$3.06

1300n

Hex. Elastic Nut M8 Brass

232581200

$2.22

1300p

Linq Bases Kit

295100858

$13.30

1300q

U-Clamp

292000933

$59.49

1300r

Flat Washer M8.5 x 18

293050001

$3.07

1300s

Rubber Washer

293830037

$2.68

1300t

Flat Washer 8 mm, Stainless

250200175

$3.06

1300u

Hex. Elastic Nut M8 Brass

232581200

$2.22

1300v

Ladder Trim Fastener

292002697

$8.49

1300w

Truss Cone Torx Screw M6 X 30

250000924

$7.51

1300x

Stainless Flat Washer M6

234061600

$0.33

1300y

Flat Washer M6.6 X 22

250200022

$2.72

1300z

Elastic Stop Nut M6, Brass

232561200

$4.23

1310

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1320

Flat Washer

279000336

$11.57

1330

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1340

Hexagonal Cap Screw M6.8 X 25

250001070

$3.89

1360

Hex. Screw M6 x 80

207068060

$2.43

1370

Stainless Flat Washer M6

234061600

$0.33

1380

Elastic Stop Nut M6, Brass

232561200

$4.23

1390

Hexagonal Cap Screw M6.8 X 25

250001070

$3.89

1100a

Torx Head Screw M8 X 35

250001215

$5.92
